HRX-OM-M090
Chapter 3 Transport and Setting Up
3.3 Installation HRS Series
3-10
Wiring
1. Connect the power supply cable to the secondary side of the earth leakage breaker and
grounding.
2. Plug the power supply cable in to the power cable connector on the product.

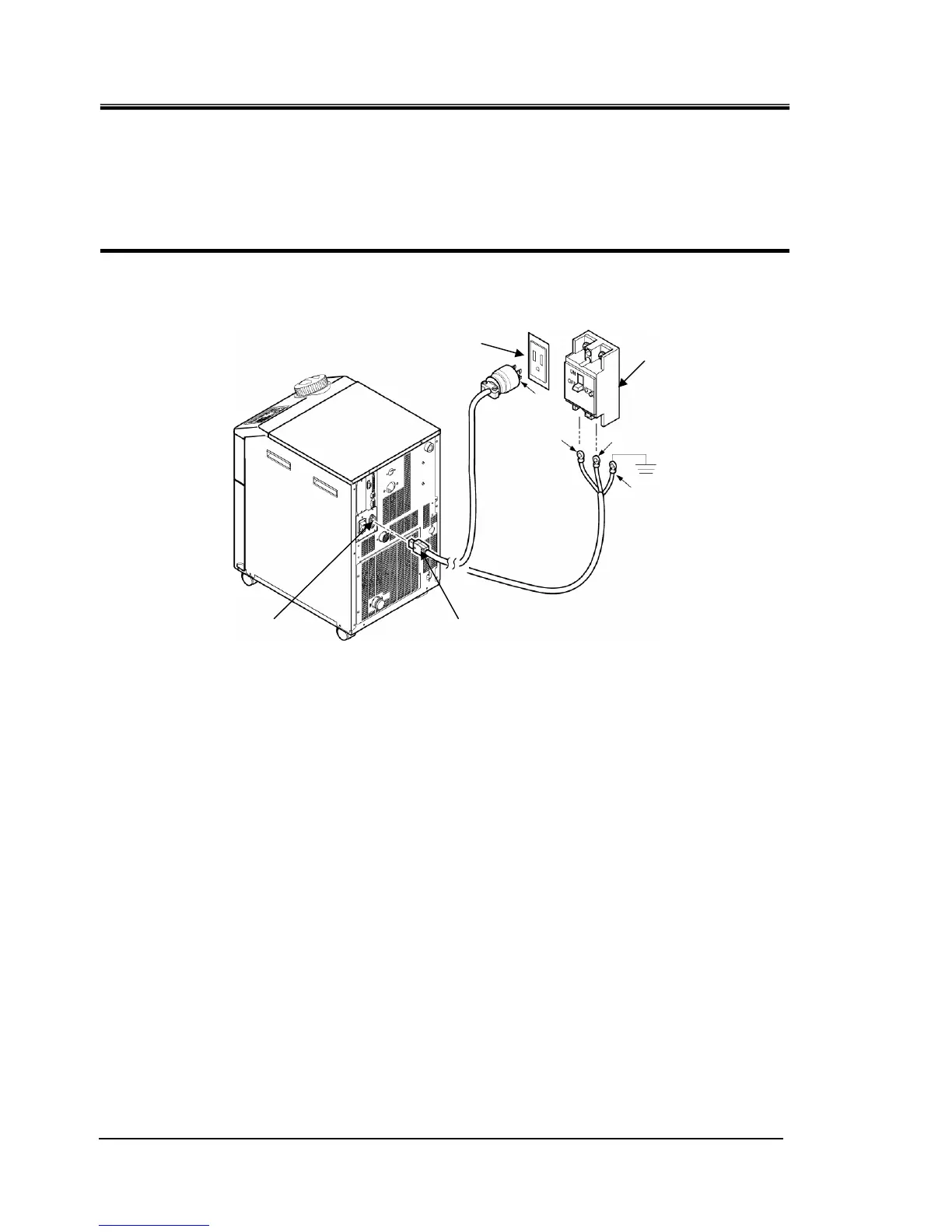

Fig. 3-6 Wiring of power supply
L
N
E
Earth
Power cable hole
Earth leakage
breaker
E
Grounded socket
Power supply connector
