HRX-OM-M090
Chapter 3 Transport and Setting Up
HRS Series 3.4 Piping
3-17

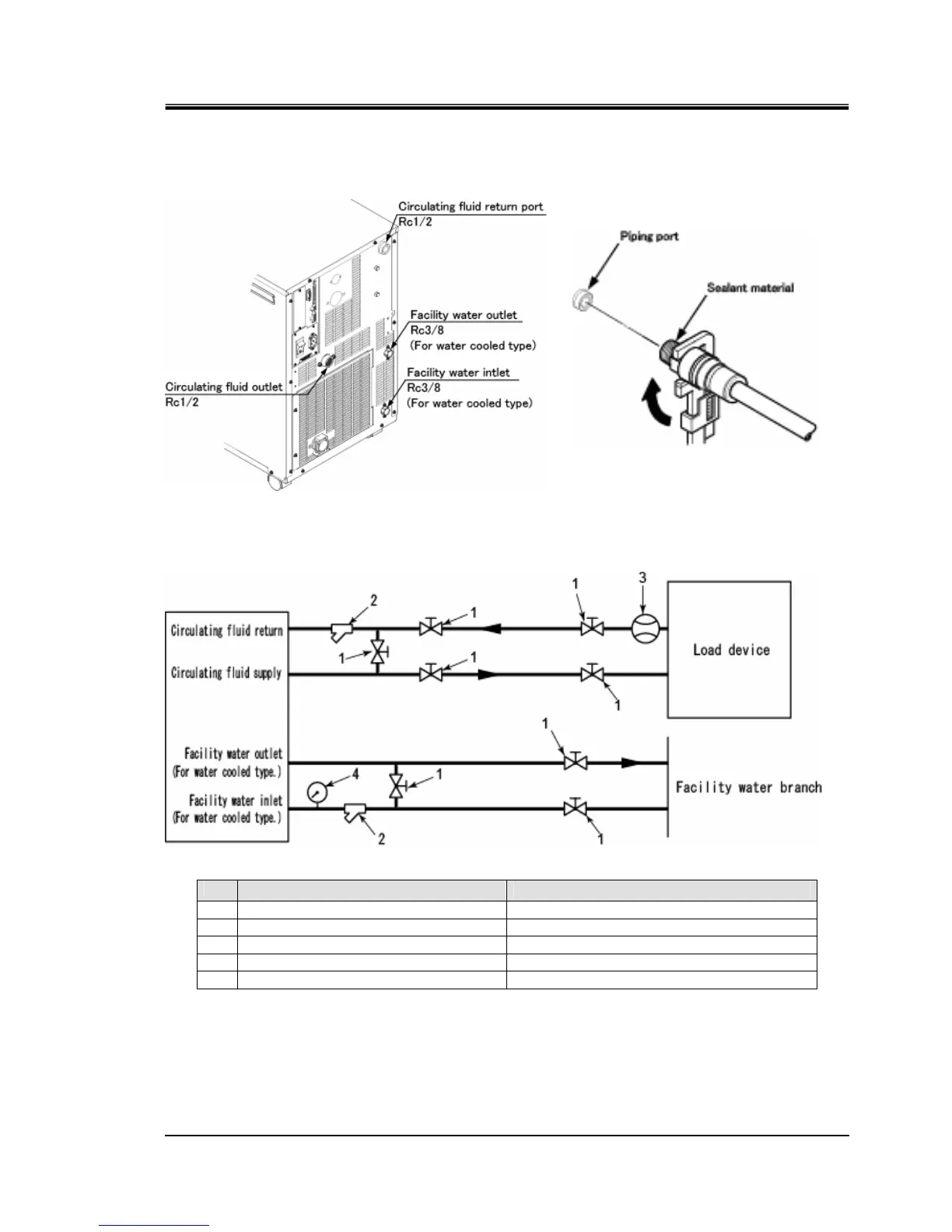

 How to connect piping
Tighten the piping to circulating fluid outlet / return port and facility water outlet / inlet.
Fig. 3-11 Tightening of piping
 Recommended piping circuit
Fig. 3-12 Recommended piping circuit
No. Name Size
1 Valve Rc1/2
2 Y-shaped strainer or filter Rc1/2 (#1000) Rc1/2 (50μm)
3 Pressure gauge 0 to 50 L/min
4 Pressure gauge 0 to 1.0 MPa
5 Others (Pipe, hose, etc.) I.Dφ15more
