Chapter 5 Display and setting of various functions
HRS Series 5.1 Function
5-5

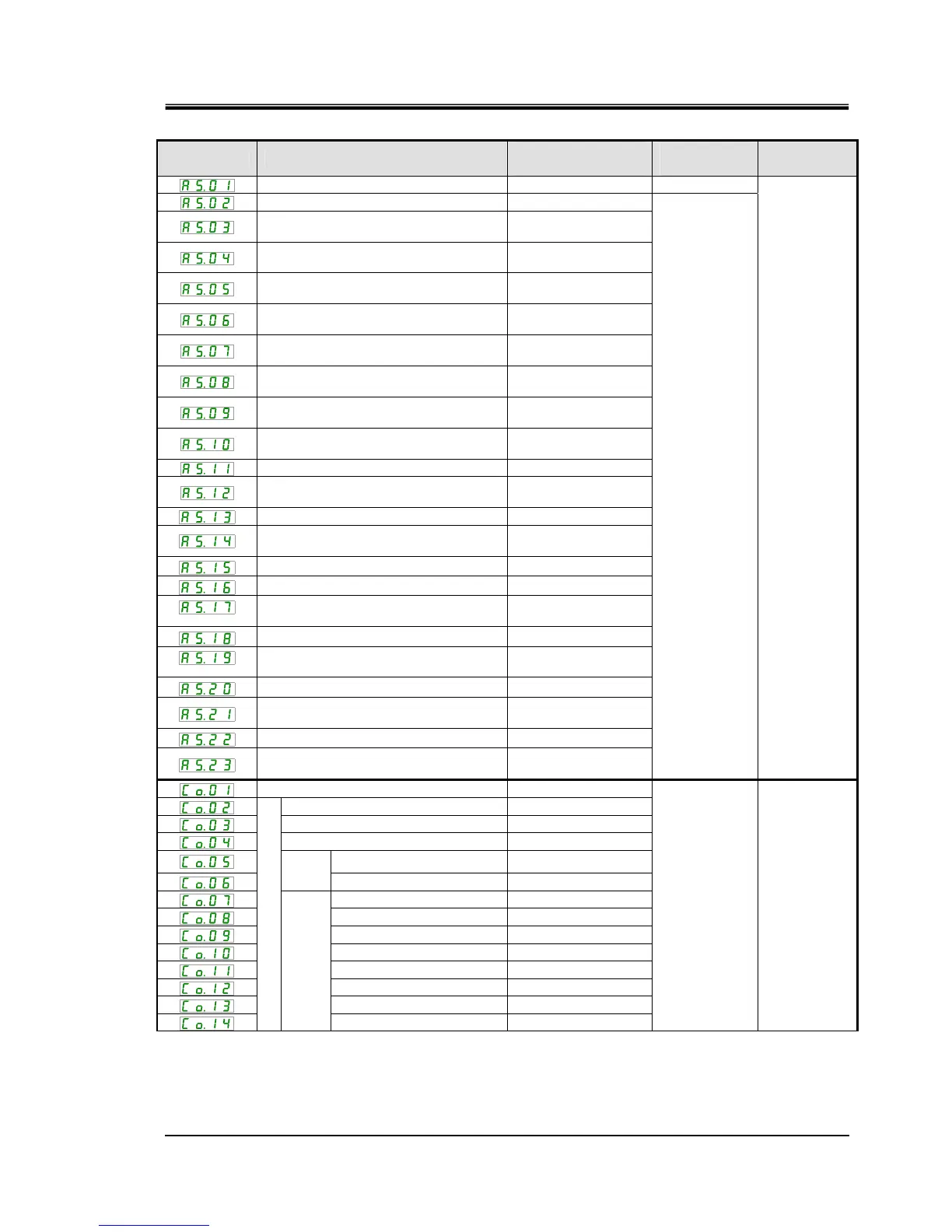

Table 5.1-2 List of parameter (2/3)
Display Item
Initial value
(Default setting)
Reference
page
Category
Alarm buzzer sound ON 5.14
Changing of low tank level A.STP
Changing of circulating fluid discharge
temperature rise
A.RUN
Detection temperature for circulating
fluid discharge temperature rise
45.0℃(113.0 ﾟ F)
Changing of circulating fluid discharge
temperature drop
A.RUN
Detection temperature for circulating
fluid discharge temperature drop
1.0℃(33.8 ﾟ F)
Changing of circulating fluid discharge
pressure rise
A.RUN
Detection pressure for circulating fluid
discharge pressure rise
0.30MPa(44PSI)*
Changing of circulating fluid discharge
pressure drop
A.RUN
Detection pressure for circulating fluid
discharge pressure drop
0.05MPa(7PSI)
Changing of communication error OFF
The monitoring time of communication
error
30 sec
Unused -
Changing of Contact input signal 2
detection
A.STP
Changing of DC line fuse cut A.STP
Changing of water leakage A.STP
Changing of upper limit of electric
resistivity
A.RUN
Upper limit of electric resistivity
4.5MΩ･cm
Changing of lower limit of electric
resistivity
OFF
Lower limit of electric resistivity
0.2MΩ･cm
Temperature alarm
Monitoring method
0
Monitoring start timer
----
Range over
Detection timer
5
5.15
Alarm setting
menu
Communication mode LOC
Serial protocol MDBS
Communication specifications 485
RS-485 terminal OFF
Slave address 1
Mod
bus
Communication speed 19.2
Slave address 1
Communication speed 9.6
BCC ON
Data length 8BIT
Parity check NON
Stop bit length 2BIT
Response delay time 0
Serial communication
Simple
communication
protocol
Communication range RW
5.18
Communicati
on setting
menu
