Chapter 5 Display and setting of various functions
HRS Series 5.15 Alarm customize function
5-47
42. Select temperature alarm monitoring method from the table below with [▲] key or [▼]
key, and confirm by pressing “SEL”.

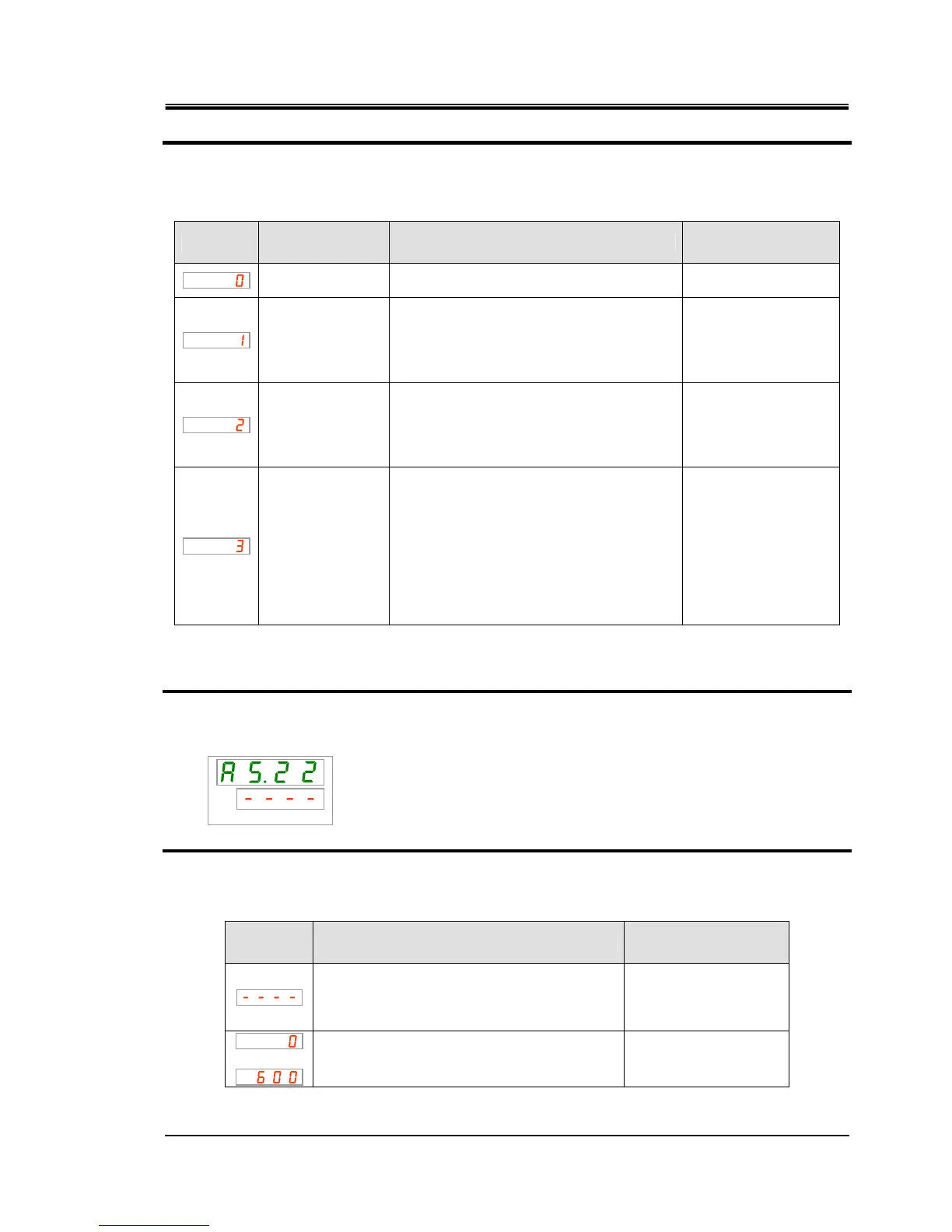

Table 5.15-22 List of set value
Set value Item Explanation
Initial value
(Default setting)
Continuous
monitoring
Alarm monitoring starts at the same time as
operation starts.
○
Automatic
monitoring
When the circulating fluid temperature is
outside of the alarm threshold range at the
time of operation start, the alarm will not be
generated until the temperature comes
inside the alarm threshold range.
Monitoring start
timer
Alarm will not be generated until it reaches
the time set for the AS.22 "Monitoring start
timer" after the operation starts.
Alarm monitoring starts when it reaches the
set time.
Automatic
monitoring +
Monitoring start
timer
Alarm will not be generated until it reaches
the time set for the AS.22 "Monitoring start
timer" after the operation starts.
Alarm monitoring starts when it reaches the
set time.
When the circulating fluid temperature
enters the alarm threshold range before it
reaches the set time, the alarm monitoring
will be started at that time.
∗ Settings of this function and example of alarm generating timing for 5.15.3 "Setting of temperature alarm
monitoring method and generation timing".
Monitoring start timer Setting and Checking
43. Press the [SEL] key once.
Setting screen of the monitoring start timer is displayed on the digital display.
PV
SV
44. Select monitoring start timer from the table below with [▲] key or [▼] key, and confirm
by pressing “SEL”.
Table 5.15-23 List of set value
Set value Explanation
Initial value
(Default setting)
Setting and checking are impossible when "0:
Continuous monitoring" or "1: Automatic
monitoring" is selected for the setting of AS21
"Temperature alarm monitoring method".
○
to
Sets the time when alarm monitoring starts
Setting unit is 1 minute.
∗ Settings of this function and example of alarm generating timing for 5.15.3 "Setting of
temperature alarm monitoring method and generation timing".
