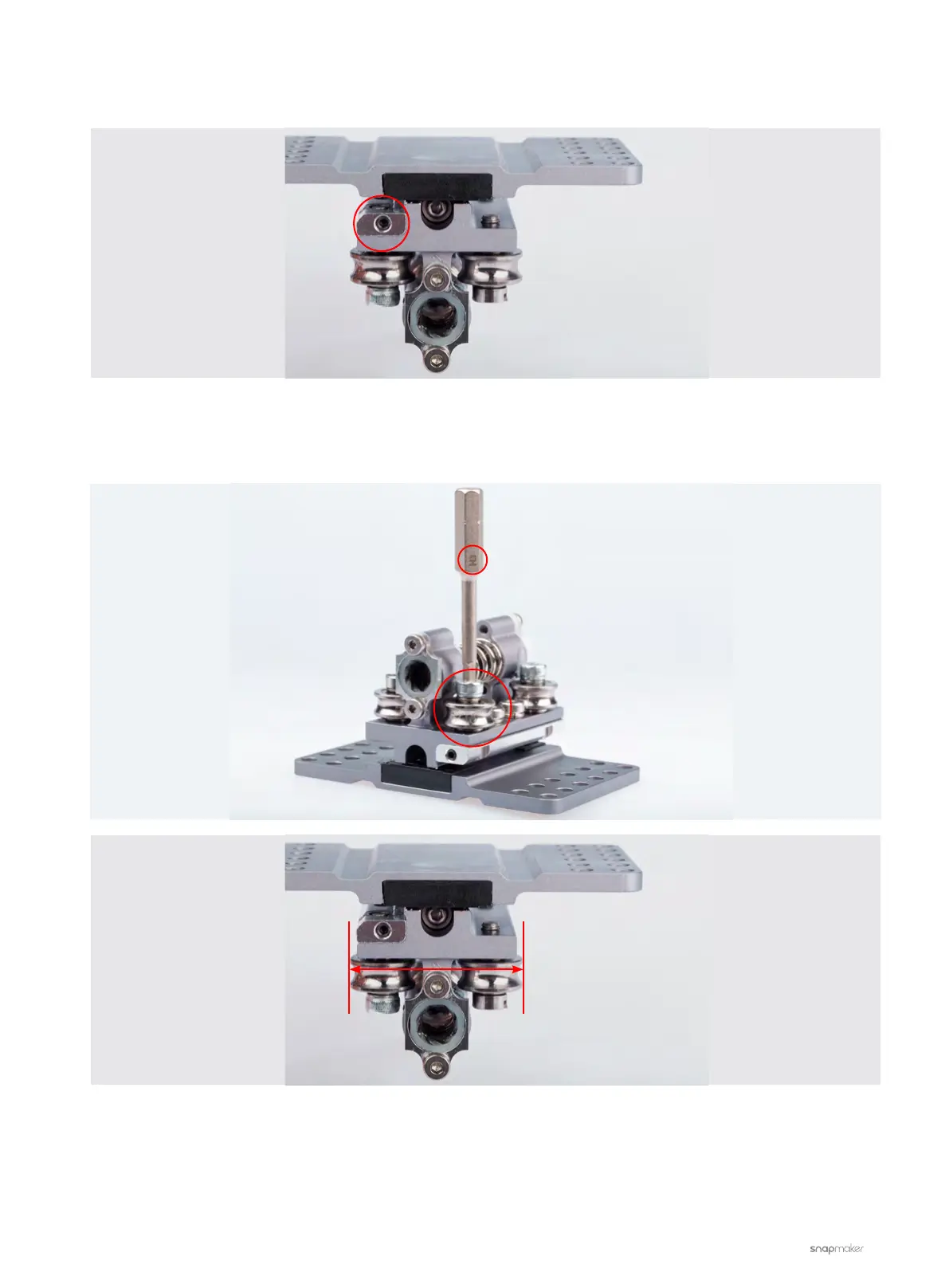

4. Loosen the fastening screw circled in the picture below.
5. Twist the bearing screw with an H3 hex screwdriver to adjust the distance between the bearings of the two
sides to 34.29 mm.
6. Tighten the fastening screw first and then tighten the bearing screw.
7. Repeat steps 3 to 5 to adjust the other bearing.
8. Assemble the Linear Module.
34.29 mm
