09
The slider of Linear Module Comes Loose
The slider of the Linear Module comes loose.
Actions

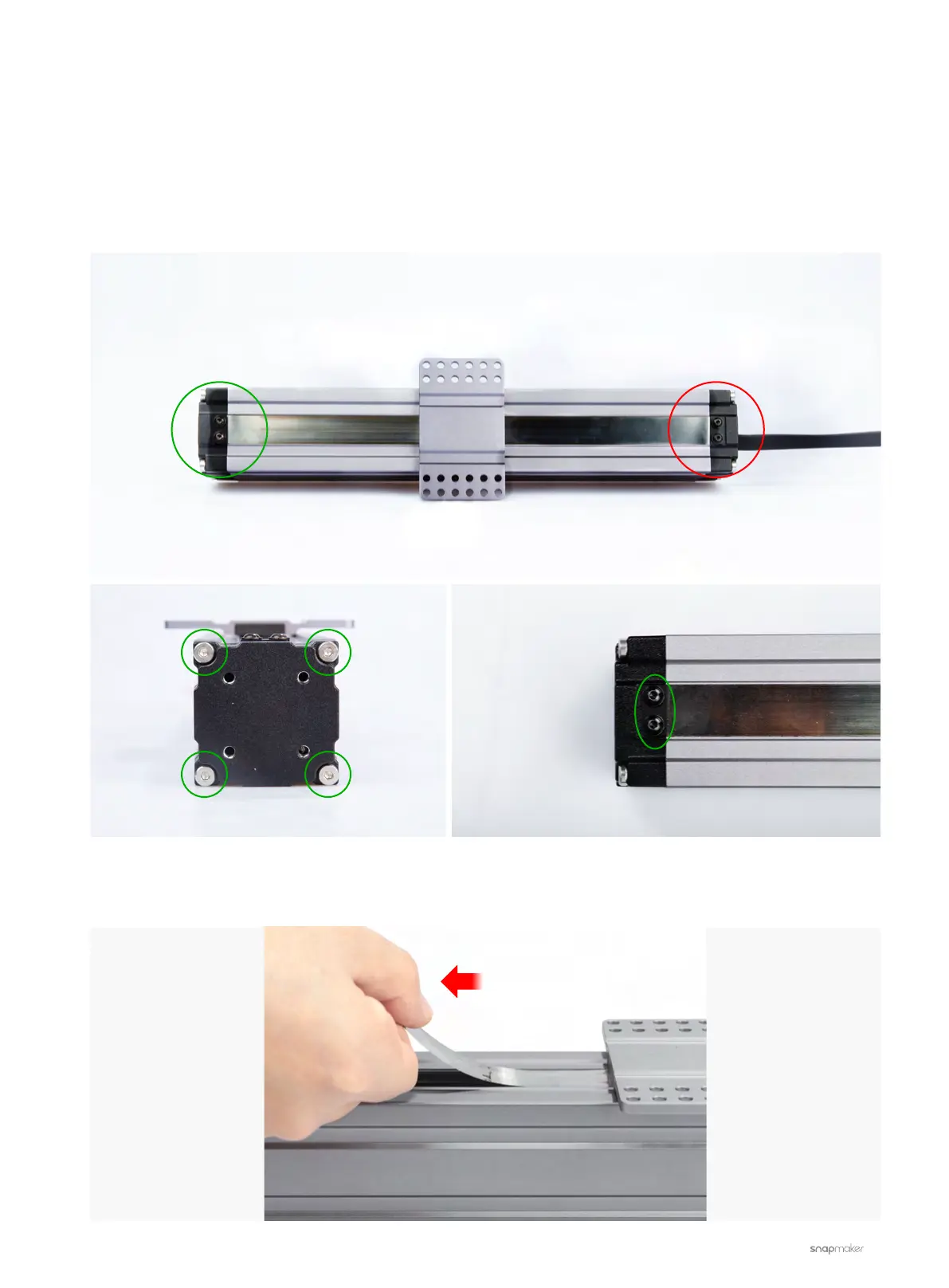

1. Take the cover (the one without cable) off from the Linear Module. You will need the H2.5 & H2.0 screwdriver.
2. Pull out the stainless steel strip from the Linear Module.
×√
Pull out the stainless steel strip
