D862 User Manual Setting up the Phone
3. Plug the short end of the handset cord into the connector on the handset.
4. Place the phone on an even, horizontal surface.
Wall mounting
The bracket for wall mounting is available separately. Contact your seller for more information. For
information on how to attach the bracket and mount the phone on the wall see "Appendix 2 - Wall
mounting" on page 81 .
Rotating the tab of the cradle
The phone is delivered with the tab level with the inner edge of the cradle. If you are going to mount
the phone on a wall, we recommend that you rotate the tab 180°. After rotation, the tip of the tab will
protrude slightly above the edge of the "cradle". The small rectangular hole in the receiver casing ts
perfectly over the now protruding tip, holding the receiver safely in place in the upright position on
the wall.

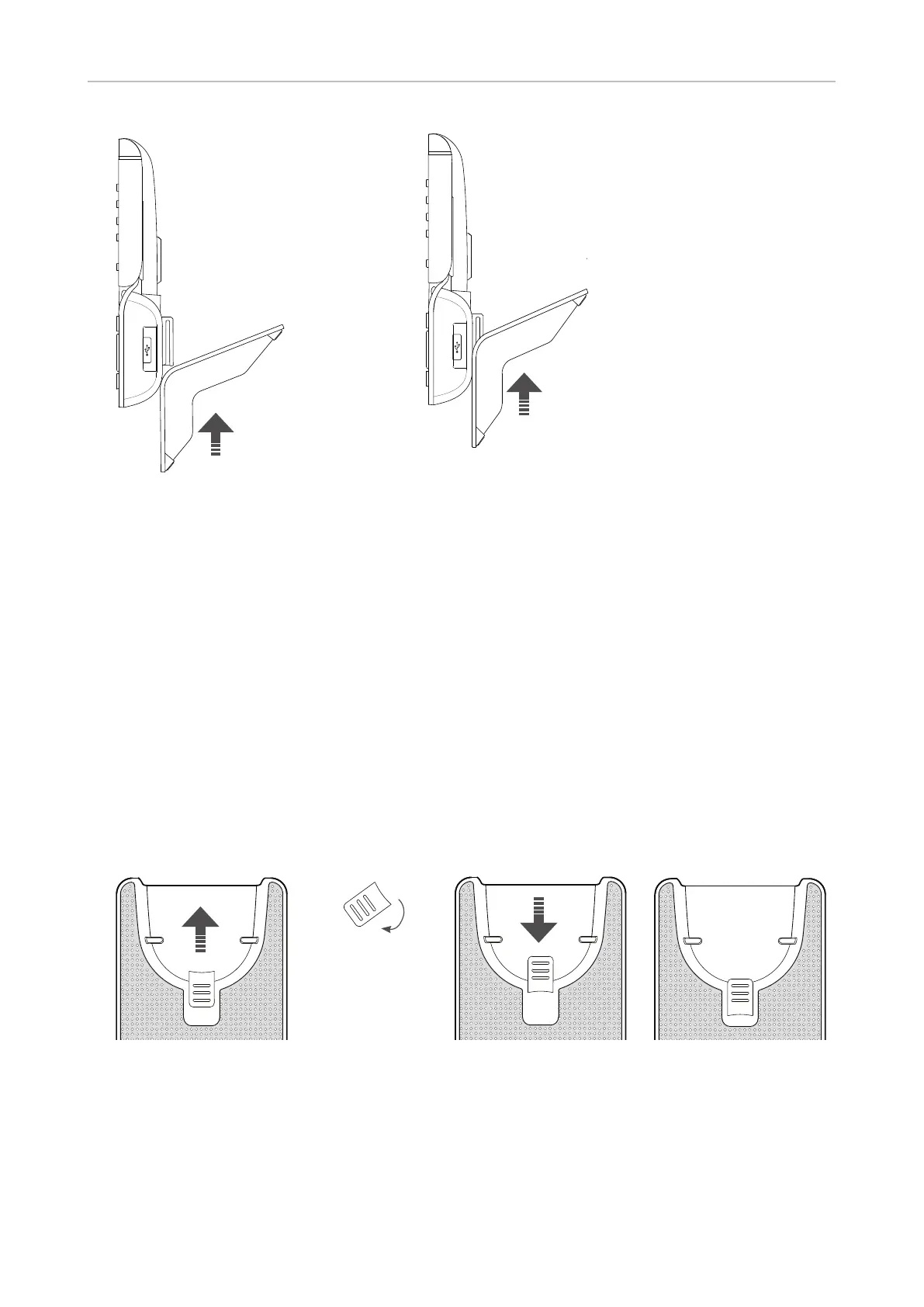

Fig. 1 Fig. 2 Fig. 3
1. Slide the plastic tab from the cradle (Fig. 1)
2. Rotate the tab 180°.
3. Slide the tab back into the cradle (Fig. 2). The top of the tab now protrudes slightly above the
inner edge of the cradle (Fig. 3), so that it will hold the handset more securely.
