APPENDIX E
D
ECODE ZONE

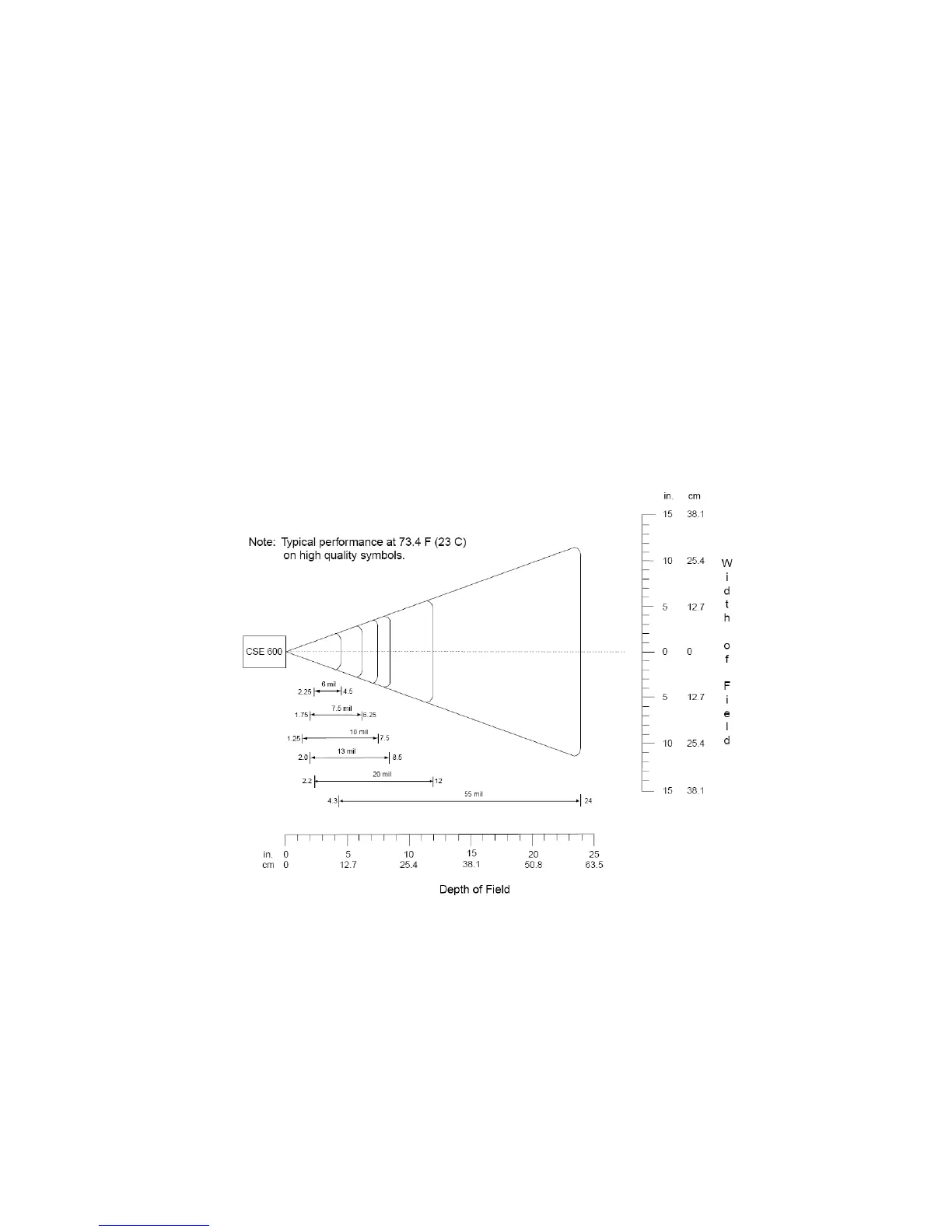

The decode zones for the Cordless Hand Scanner are shown
below. The minimum element width (“X Dimension” or bar code
“size”) is the width in thousandths of an inch (mils) of the
narrowest element (bar or space) in the symbol. The figures
shown are the typical scanning distances (depths of field) for
selected bar code sizes. The maximum usable length of a bar
code symbol (Width of Field) at any given range is also shown.
CHS 7E
94
