CCeennttrree SSeeccttiioonn MMeetteerriinngg

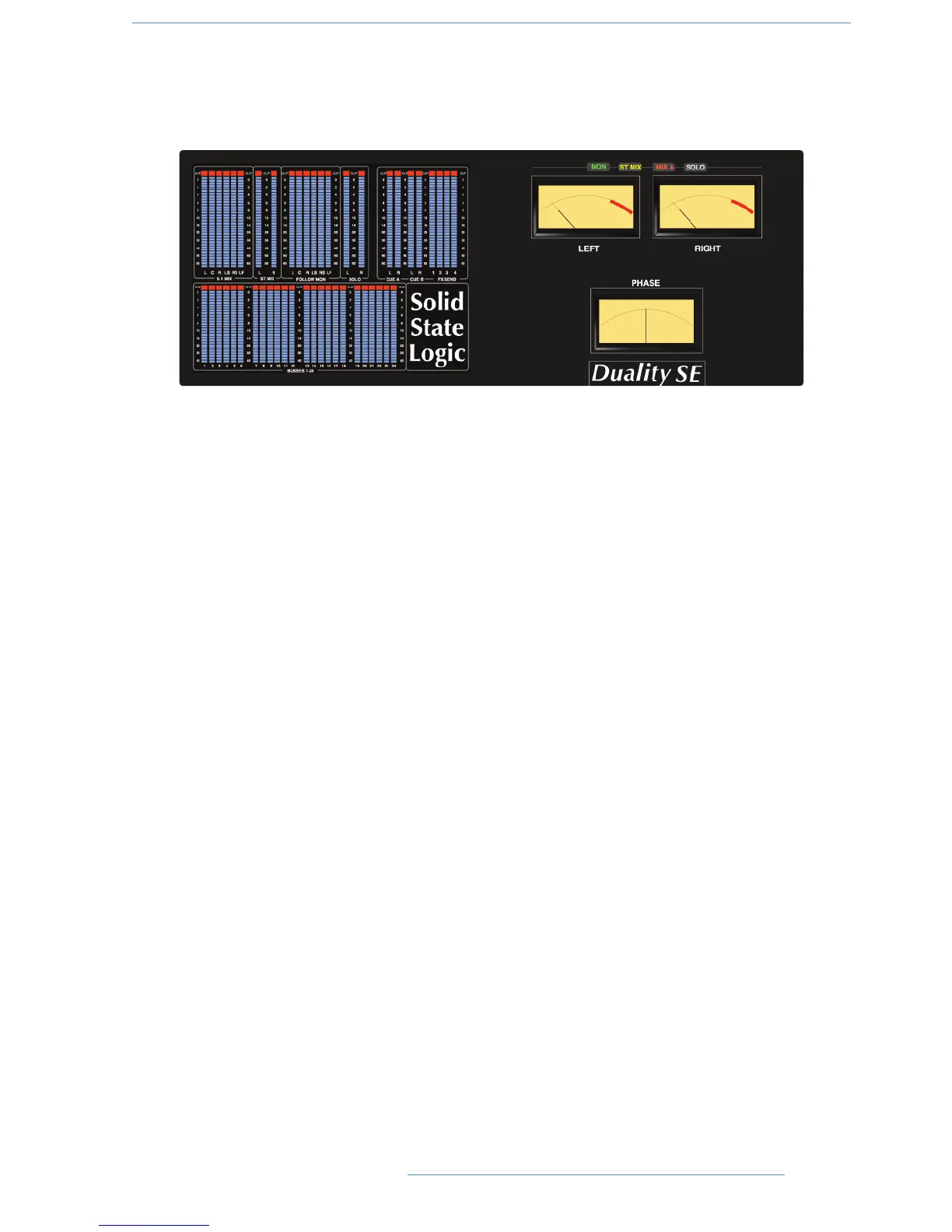

The panel above the main centre section features LCD and analogue metering for the console’s main and auxiliary
outputs:
On the left of the centre section meter bridge are six sets of LCD bargraphs. These are dedicated to the metering
of (from left to right) the following busses:
• AL, AR, BL, BR, CL, CR MAIN MIX (L, R, C, LF, LS, RS when working in 5.1 mode)
• L, R ST MIX (downmix)
• L, R, C, LF, LS, RS FOLLOW MON (monitor)
• L, R SOLO, AFL, PFL bus
• L, R CUE A and CUE B
• 1-4 FX SENDs
• 1-24 Track BUSSES
The standard scale is +24dB for 0dBFS (top of the scale). Options for different 0dBFS levels are available via the SSL
/ Misc / Setup menu (see next page).
To the right of the bargraphs are two VU meters and a phasemeter. These meter the Left and Right outputs of three
mix busses, as selected via the METERS menu (see next page).
