Sony HAP-S1 Service Manual

105
HAP-S1

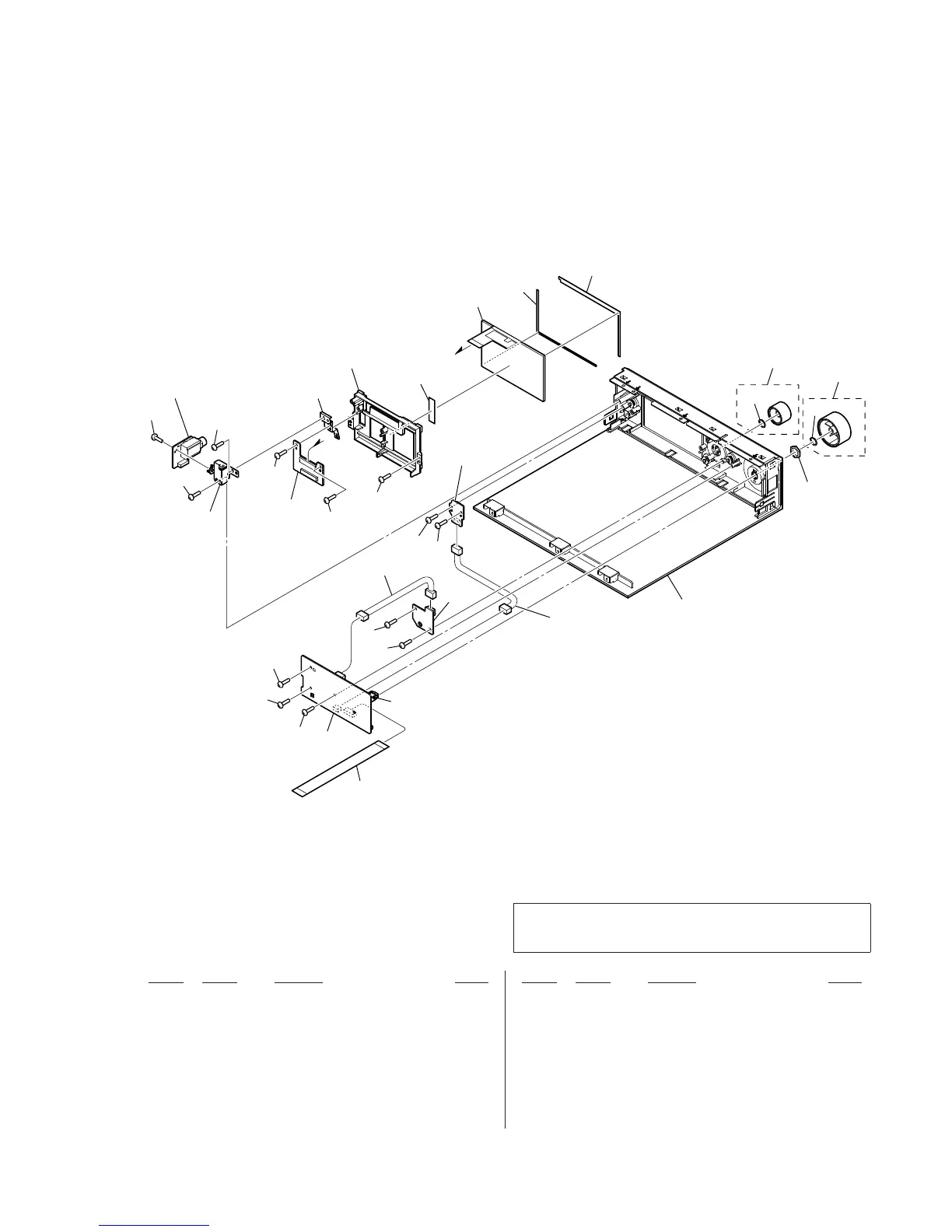

6-2. FRONT PANEL SECTION
• Rear bottom view
51 A-1945-086-A KEY JOG BOARD, COMPLETE
52 3-087-053-01 +BVTP2.6 (3CR)
53 A-1974-810-A PENC BOARD, COMPLETE
54 X-2587-367-2 FRONT PANEL ASSY (ALG) (SILVER)
54 X-2588-153-2 FRONT PANEL ASSY (ALG-B) (BLACK)
55 3-077-331-62 +BV3 (3-CR)
56 4-420-224-01 ADHESIVE, A
57 4-464-775-01 CUSHION, LCD (A)
58 4-464-776-01 CUSHION, LCD (B)
59 X-2587-366-2 SEL KNOB ASSY (SILVER)
59 X-2588-152-2 SEL KNOB ASSY (B) (BLACK)
60 X-2587-365-1 VOL KNOB ASSY (SILVER)
60 X-2588-151-1 VOL KNOB ASSY (B) (BLACK)
61 3-350-426-01 SPRING, RING
EN5004 1-418-725-41 ENCODER, ROTARY (12 TYPE) (VOLUME)
FFC4 1-828-002-51 WIRE (FLAT TYPE) (17 CORE) (See Note)
LCD1 1-811-873-11 PANEL, LCD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
EN5004
51
52
55
56
57
58
59
61
61
60
52
52
52
52
52
52
52
52
53
52
52
52
FFC4
not supplied
not supplied
not supplied
(ALLEGRO-LCD
board)
not supplied
not supplied
(HP board)
not supplied
(POWER KEY
board)
supplied with
EN5004
54
A
A
not supplied
not supplied
LCD1
Note: Wires (fl at type) for service is straight.
When replacing wire (fl at type), install it after bending it in the
same form as that before replacement.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \
