Sony HAP-S1 Service Manual

110
HAP-S1

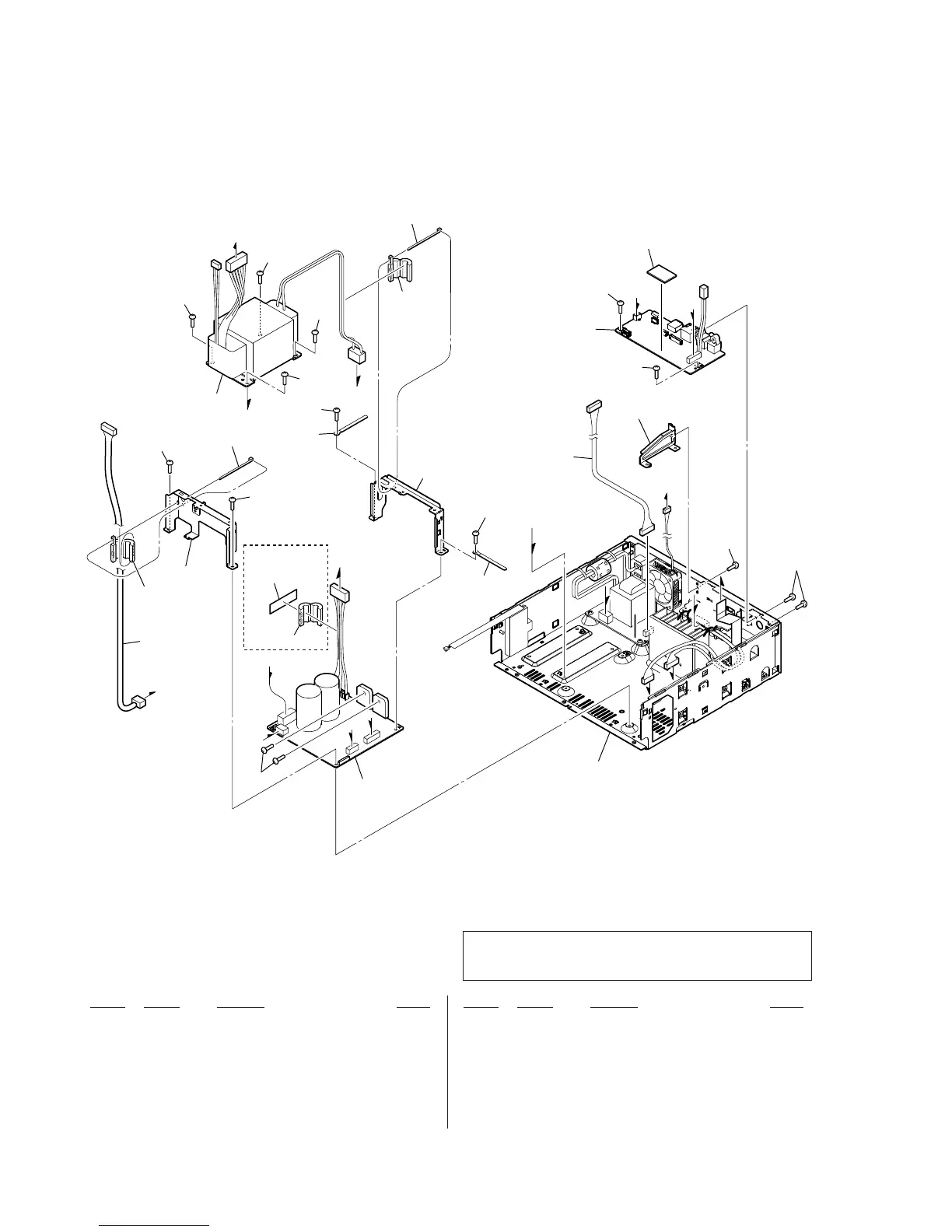

6-7. AMP BOARD, DIGITAL IO BOARD SECTION
301 A-1945-071-A AMP BOARD, COMPLETE (AEP, UK) (See Note)
301 A-1945-072-A AMP BOARD, COMPLETE (US, CND) (See Note)
302 3-905-609-01 SCREW (TRANSISTOR)
303 3-077-331-62 +BV3 (3-CR)
* 304 3-703-150-11 CLAMP
305 3-077-331-41 +BV3 (3-CR)
306 A-1945-092-A DIGITAL IO BOARD, COMPLETE
307 4-249-675-02 +BV SUMITITE S 4X6 ROUND
FC7 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
FC8 1-500-082-11 CLAMP, SLEEVE FERRITE
FC9 1-500-082-11 CLAMP, SLEEVE FERRITE (AEP, UK)
0 T1 1-697-296-11 TRANSFORMER, POWER (US, CND)
0 T1 1-697-304-11 TRANSFORMER, POWER (AEP, UK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
P
K
K
L
J
J
N
M
M
O
R
R
O
N
L
P
Q
Q
not supplied
not supplied
FC9
not supplied
T1
FC7
not supplied
not supplied
not supplied
not supplied
FC8
not supplied
301
303
304
303
303
303
303
not supplied
303
307
307
302
305
306
305
304
(AEP, UK)
307
307
SPTM board, STANBY board section
Note: When the complete AMP board is replaced, refer to “NOTE OF
REPLACING THE D218, IC350 AND IC351 ON THE AMP
BOARD AND THE COMPLETE AMP BOARD” on page 4.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
