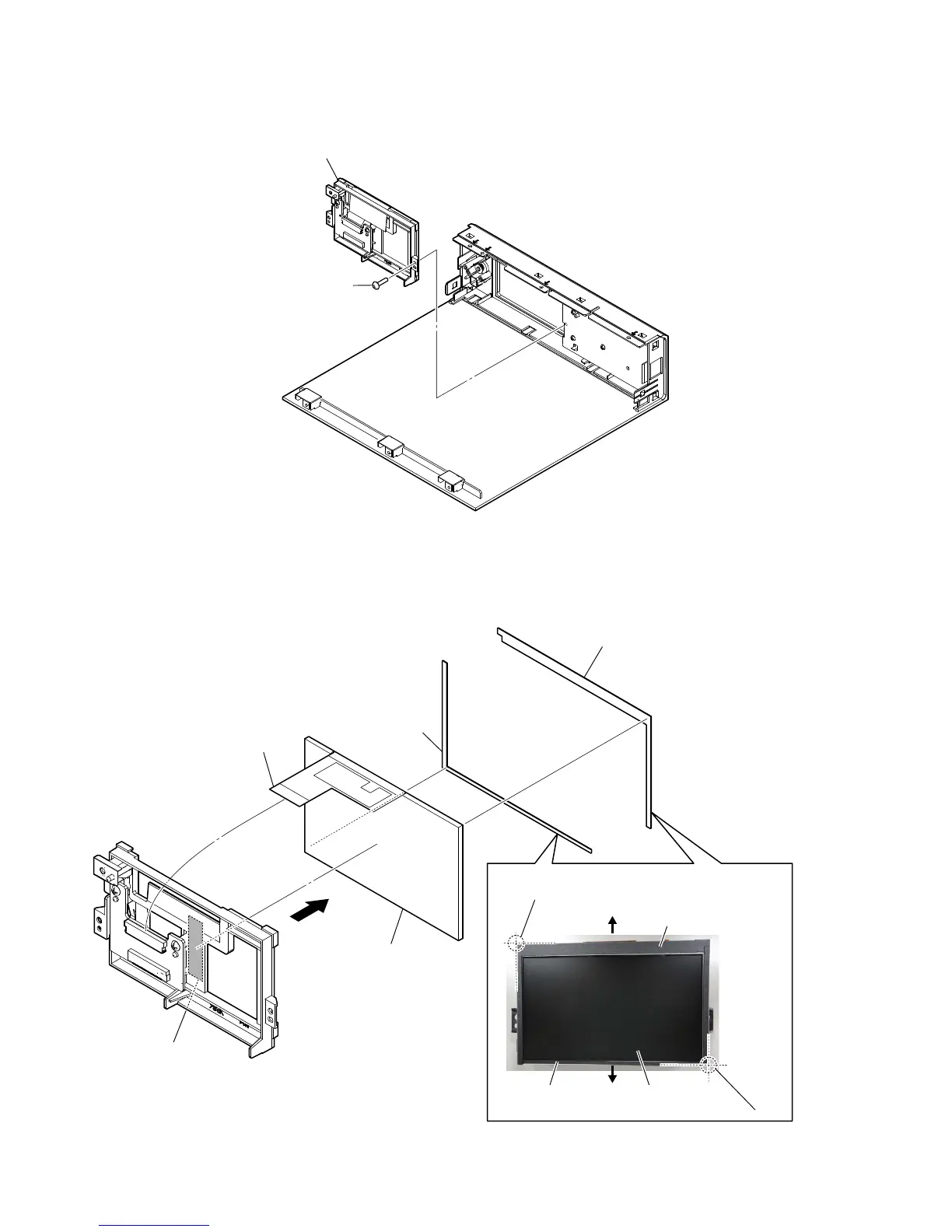

2-6. LCD HOLDER BLOCK
2-7. LCD PANEL (LCD1)
1 screw
(BVTP2.6)
– Front panel (ALG) block rear bottom view –
2 LCD holder block
– Rear bottom view –
1 LCD flexible board
(CN002)
5 LCD panel
(LCD1)
LCD panel (LCD1)
3 LCD cushion (A)
LCD cushion (A)
2 Peel off the A adhesive.
4 LCD cushion (B)
LCD cushion (B)
bottom side
top side
Note:
Attach to fit the corner.
Note:
Attach to fit the corner.
