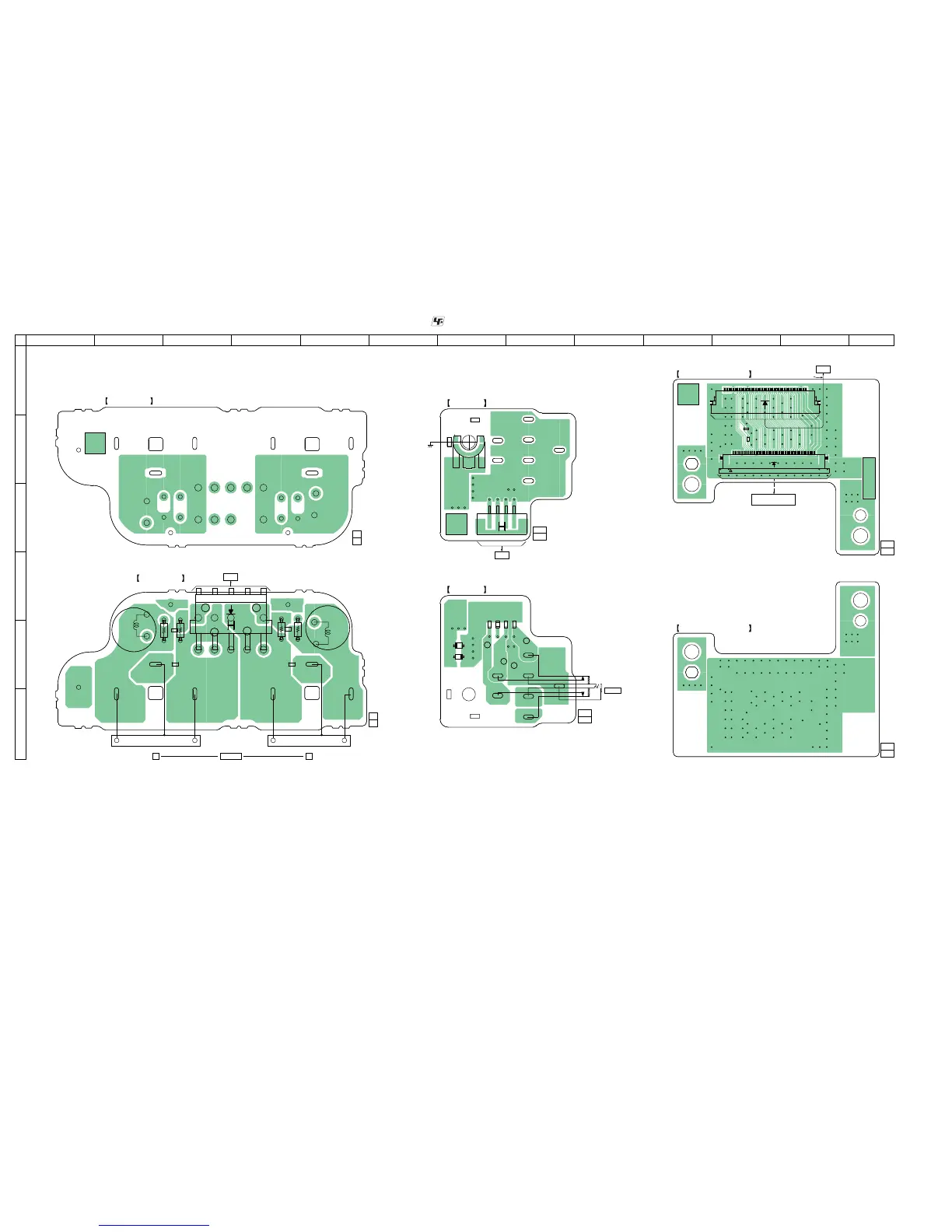

5-28. PRINTED WIRING BOARDS - OUTPUT/LCD Section -
• : Uses unleaded solder.
• See page 45 for Circuit Boards Location.
1
40
1
40
CN001
CN002
C004
R003
CL2001
CL2002
CL2003
CL2004
C2001 C2002 C2003
D2001
D2002
R2001
J2001
1
4
ET2001
CN2001
CL700
CL701
CL702
CL703
C700
C701
C702
C703
5
1
L700
L701
TB700
TB701
R700
R701
R702
R703
CN701
ALLEGRO-LCD BOARD (SIDE A)
ALLEGRO-LCD BOARD (SIDE B)
1-888-977-
11
1-888-977-
MAIN
BOARD
CN703
>06P
FFC1
LCD1
LIQUID CRYSTAL DISPLAY
HP BOARD (CONDUCTOR SIDE)
1-888-795-
A
K
K
A
PHONES
HP BOARD (COMPONENT SIDE)
1-888-795-
(CHASSIS)
AMP BOARD
CN202
>18P
SPTM BOARD
(CONDUCTOR SIDE)
1-888-766-
11
(11)
L
R
SPEAKERS
+
+
–
–
AMP
BOARD
CN207
>16P
SPTM BOARD (COMPONENT SIDE)
1-888-766-
11
(11)
A
B
C
D
E
F
1 2 3 4 5 6 7 8 9 10 11 12 13
11, 12
(11, 12)
11, 12
(11, 12)
11, 12
(11, 12)
11, 12
(11, 12)
(Page 64)
(Page 64)
(Page 46)

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
