Sony HAP-S1 - HP Board; POWER KEY Board

HAP-S1
11

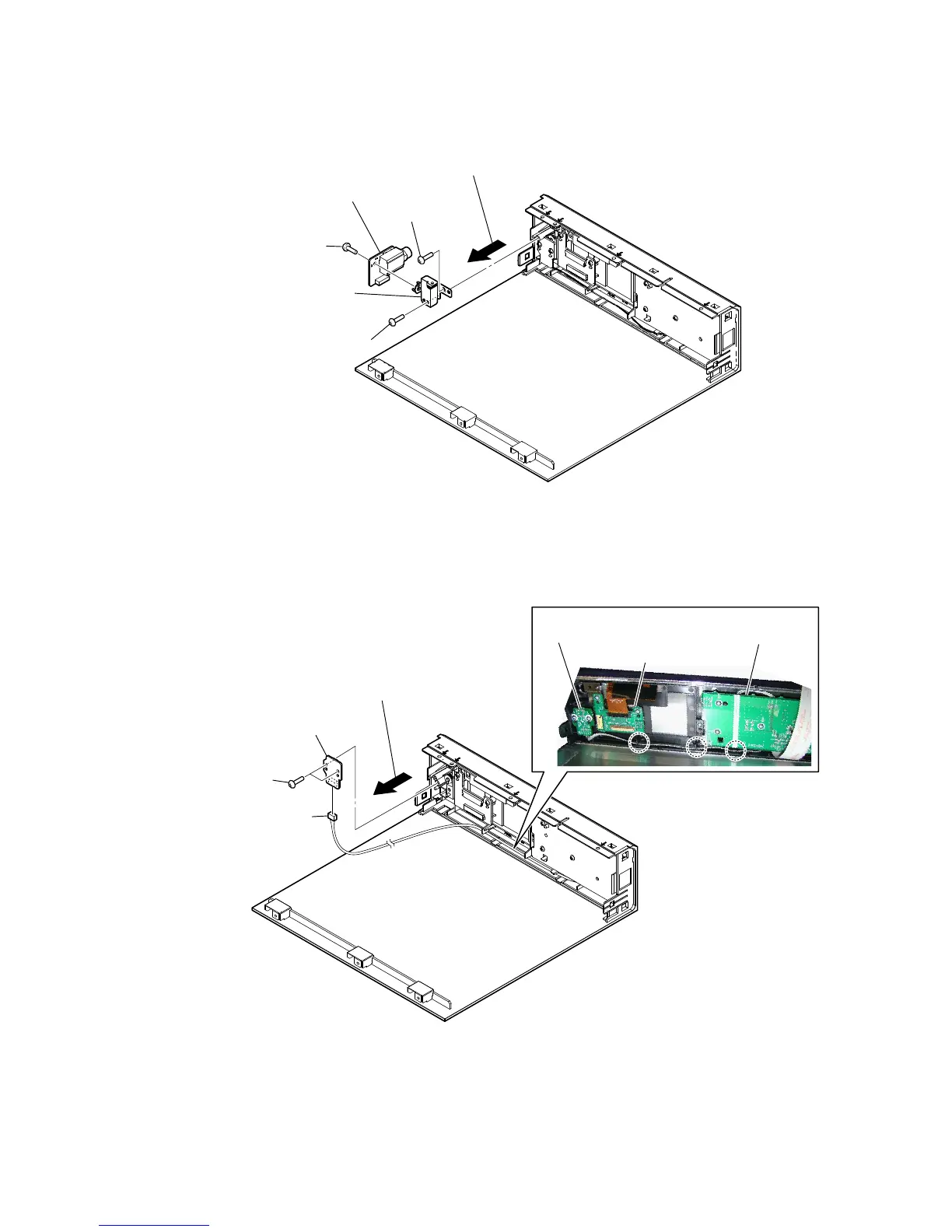

2-4. HP BOARD
2-5. POWER KEY BOARD
1 screw
(BVTP2.6)
1 screw
(BVTP2.6)
3 screw
(BV3)
4 bracket (HP)
– Front panel (ALG) block rear bottom view –
2 Remove the HP board block
in the direction of an arrow.
5 HP board
1 two screws
(BVTP2.6)
3 connector
(CN1002)
– Front panel (ALG) block rear bottom view –
2 Remove the POWER KEY board block
in the direction of an arrow.
4 POWER KEY board
POWER KEY board
KEY JOG board
ALLEGRO-LCD board
