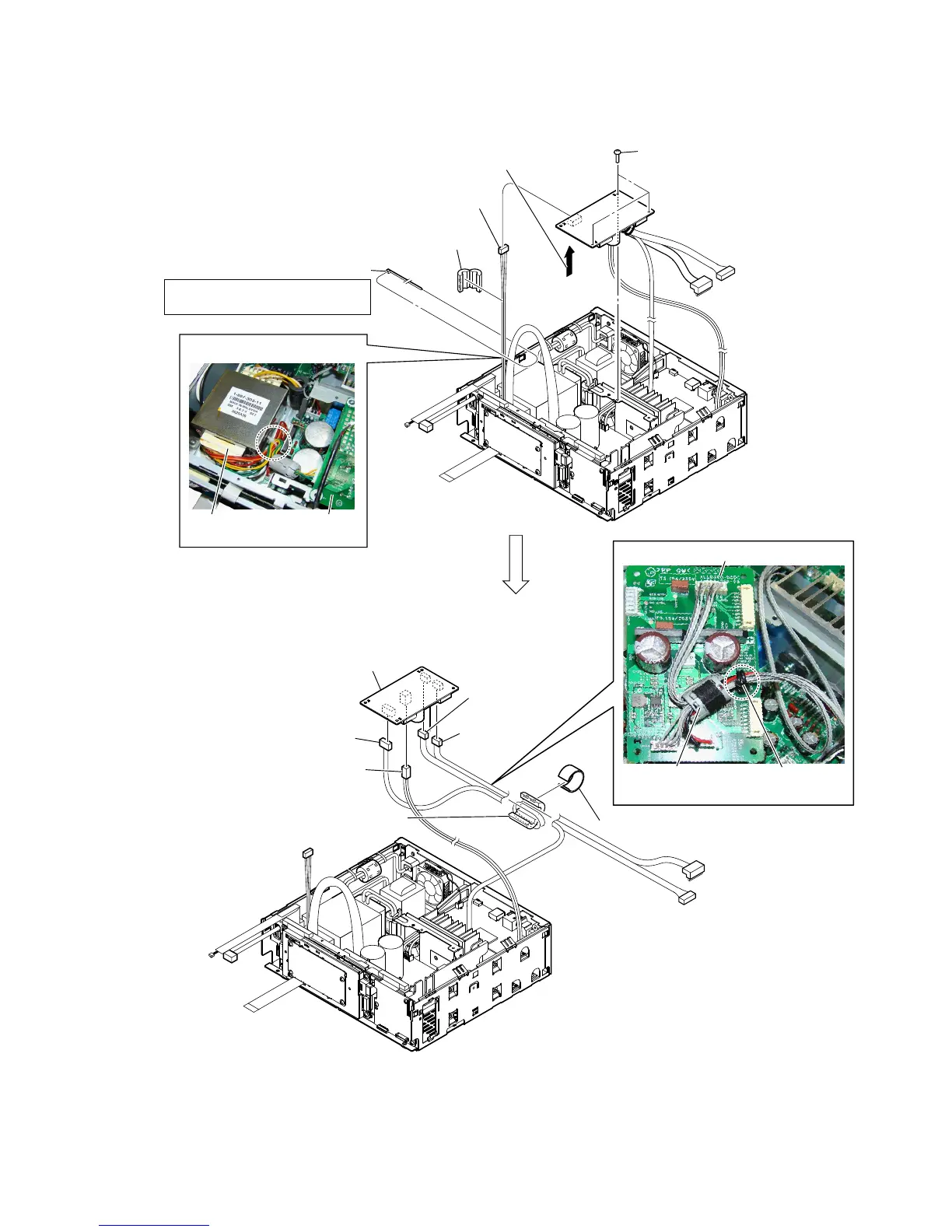

2-16. DCDC BOARD-2
:LUHVHWWLQJ
:LUHVHWWLQJ
1 Cut the cable tie.
Note:
In reassembling, use new cable tie
to fasten the clamp same as before.
2 clamp filter
(ferrite core)
(FC5)
3 connector
(CN2408)
4 three screws
(BV3)
5 Remove the DCDC board block
in the direction of an arrow.
DCDC board
power transformer
(T1)
6 saranet cushion
7 sleeve ferrite clamp
(FC6)
sleeve ferrite clamp
(FC6)
0 connector
(CN2406)
qs DCDC board
DCDC board
lead pin
qa connector
(CN2407)
8 connector
(CN2402)
9 connector
(CN2403)
–%RWWRPYLHZ–
