Sony HAP-S1 Service Manual

104
HAP-S1
SECTION 6
EXPLODED VIEWS
1 4-227-843-03 SCREW (TP), FLAT HEAD (for BLACK)
1 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER)
2 3-077-331-62 +BV3 (3-CR)
3 X-2587-364-1 FOOT ASSY (ALG)
4 4-474-331-01 FLAT SCREW
5 X-2587-441-1 SIDE PANEL ASSY (L) (for L-ch) (SILVER)
5 X-2588-154-1 SIDE PANEL ASSY (L-B) (for L-ch) (BLACK)
6 X-2587-442-1 SIDE PANEL ASSY (R) (for R-ch) (SILVER)
6 X-2588-155-1 SIDE PANEL ASSY (R-B) (for R-ch) (BLACK)
7 3-077-331-41 +BV3 (3-CR)
8 4-477-465-31 HI-RES LABEL
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
CND : Canadian model
• Color variations
Silver, Black

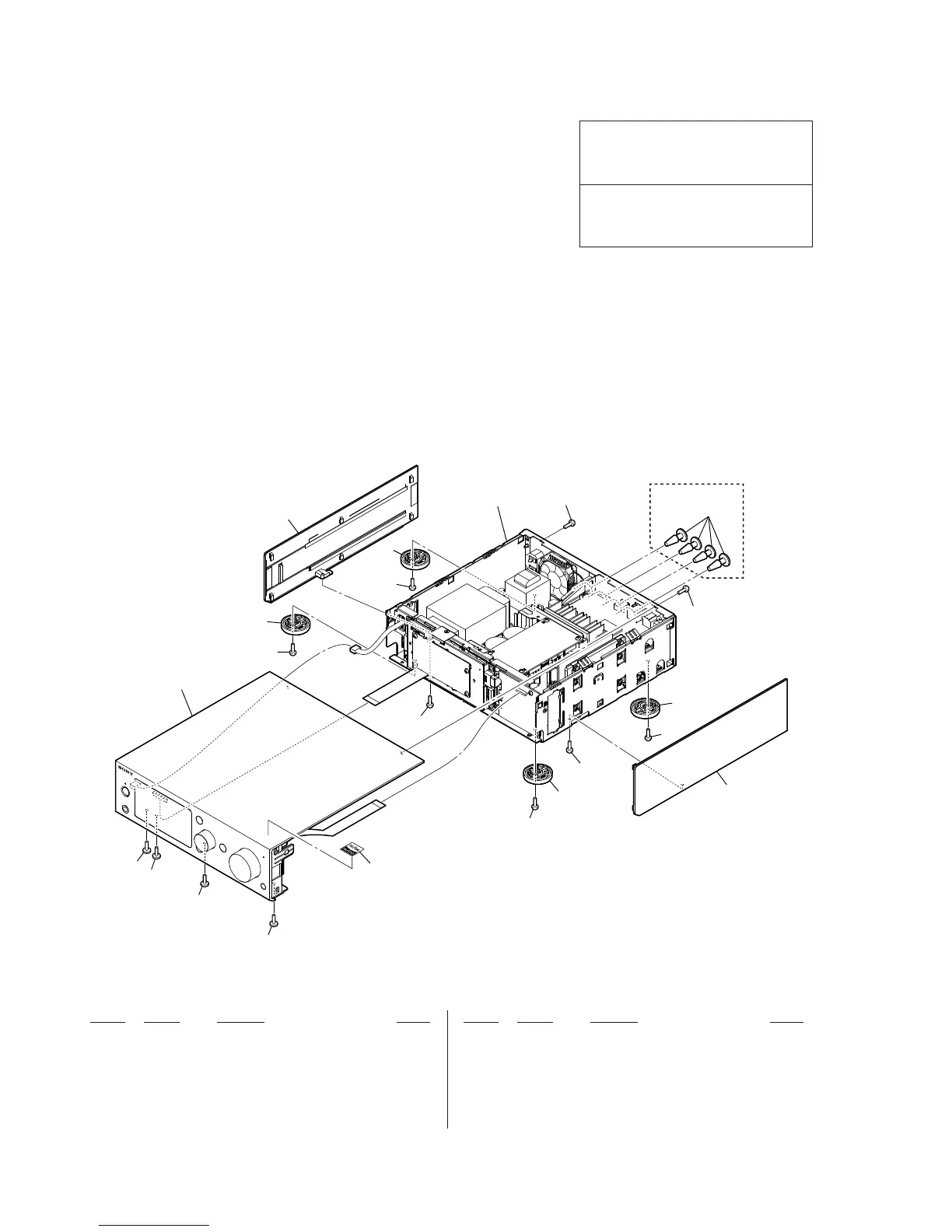

6-1. SIDE PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
front panel section
1
1
1
1
2
2
3
5
6
7
7
3
8
4
4
3
3
2
2
HDD section
not supplied
(AEP, UK)

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
