Sony HAP-S1 - AMP Board-1

HAP-S1
27

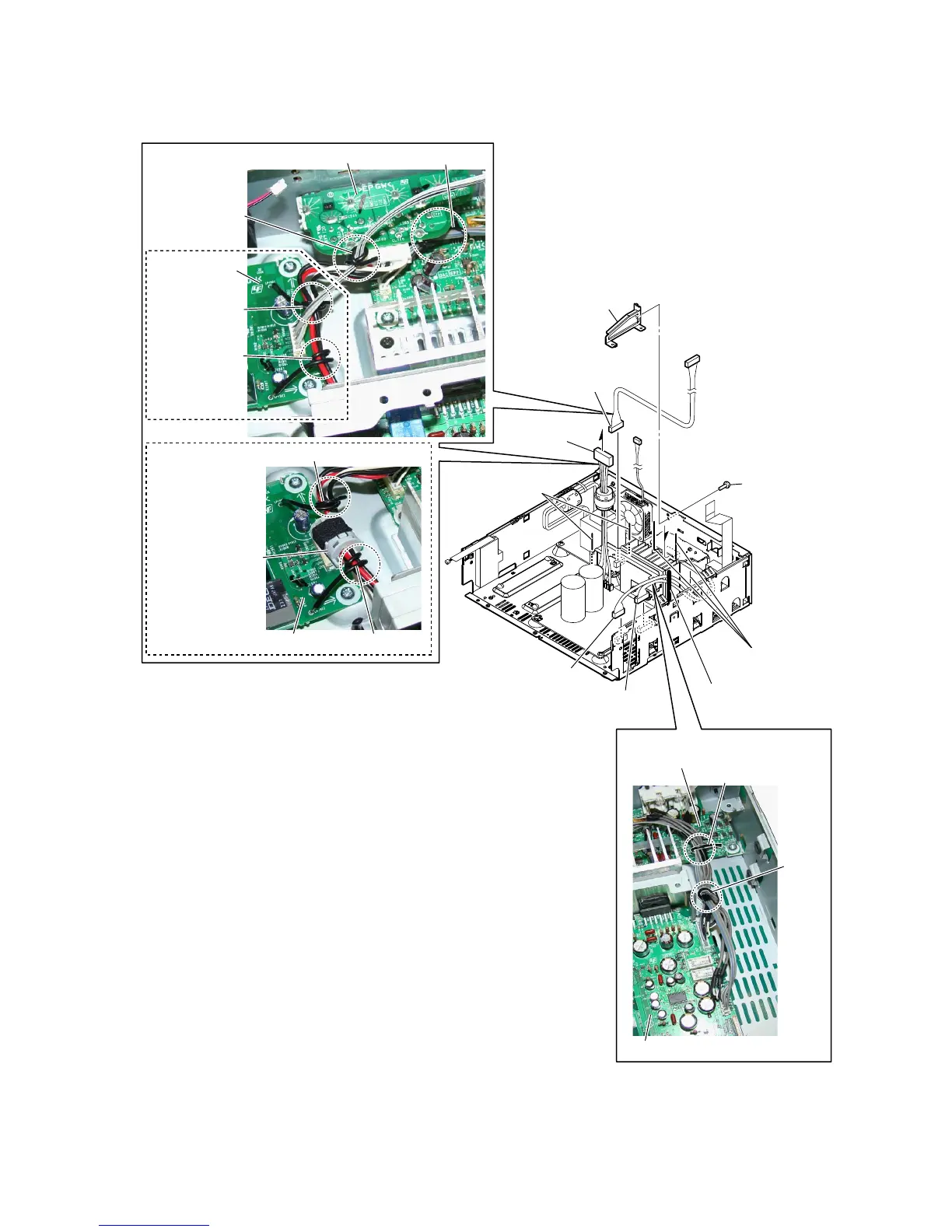

2-28. AMP BOARD-1
5 connector
(CN1901)
6 connector
(CN701)
A
7 connector
(CN212)
8 connector
(CN211)
1 screw (BV3)
3 Remove wires from
two lead pins.
lead pin
lead pin
3 Remove wires from
three lead pins.
4 Remove wires from
the clamp.
2 bracket (DIGITAL)
lead pin
lead pin
lead pin
lead pin
clamp
lead pin
DAC board
STANBY board
STANBY board
SPTM board
AMP board
:LUHVHWWLQJ
sleeve ferrite clamp
(FC9)
$(38.
86&DQDGLDQ
:LUHVHWWLQJ
A
