Sony HAP-S1 - Clamp Filter (Ferrite Core) (FC4)

HAP-S1
17

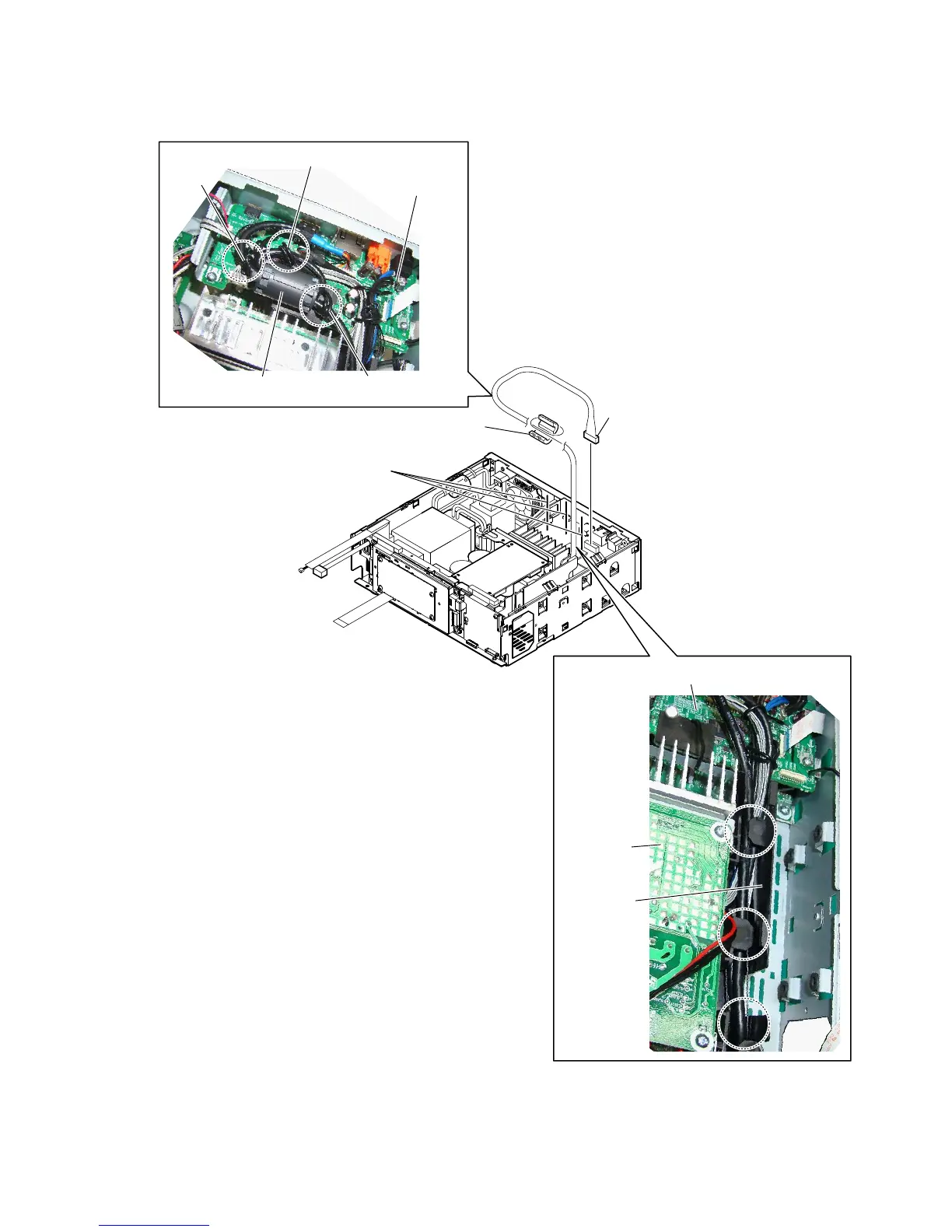

2-14. CLAMP FILTER (FERRITE CORE) (FC4)
1 Remove wires from
three lead pins.
lead pin
lead pin
lead pin
2 connector
(CN4003)
3 clamp filter (ferrite core)
(FC4)
clamp filter (ferrite core)
(FC4)
DIGITAL IO board
:LUHVHWWLQJ
DIGITAL IO board
DCDC board
wire holder
:LUHVHWWLQJ
