Sony HAP-S1 Service Manual

HAP-S1
9
Note: Follow the disassembly procedure in the numerical order given.

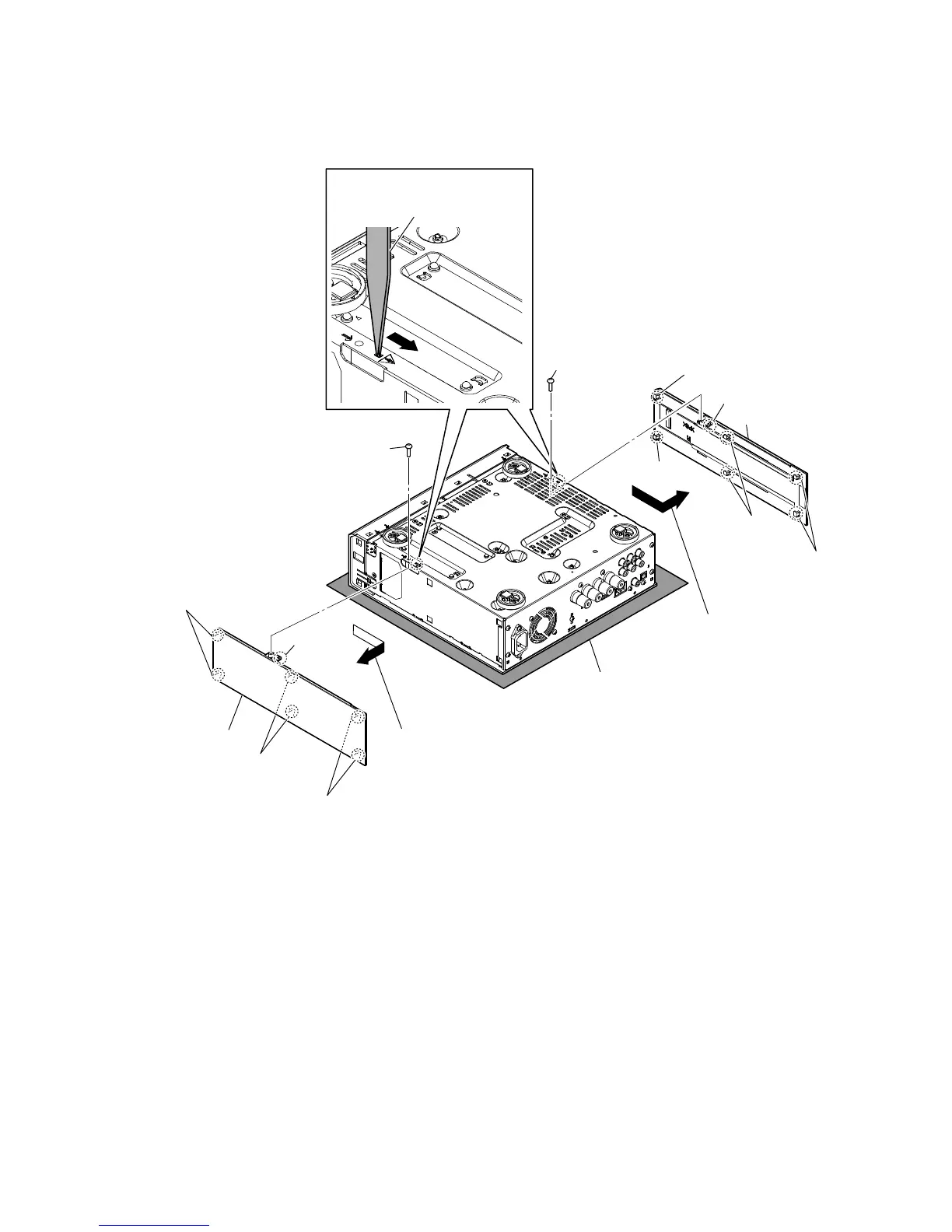

2-2. SIDE PANEL (L/R) ASSY
– Rear bottom view –
5 two claws
5 two claws
5 two claws
4 Remove the side panel (L) assy
in the direction of an arrow.
4 Remove the side panel (R) assy
in the direction of an arrow.
6 side panel (L) assy
6 side panel (R) assy
5 two claws
5 two claws
5 claw
5 claw
1 flat screw
1 flat screw
3 hook
3 hook
2 Insert a tweezers etc. to hole of
chassis and slide the hook in the
direction of the arrow.
Note:
Please spread a sheet under
a unit not to panel.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
