Sony HAP-S1 Service Manual

109
HAP-S1

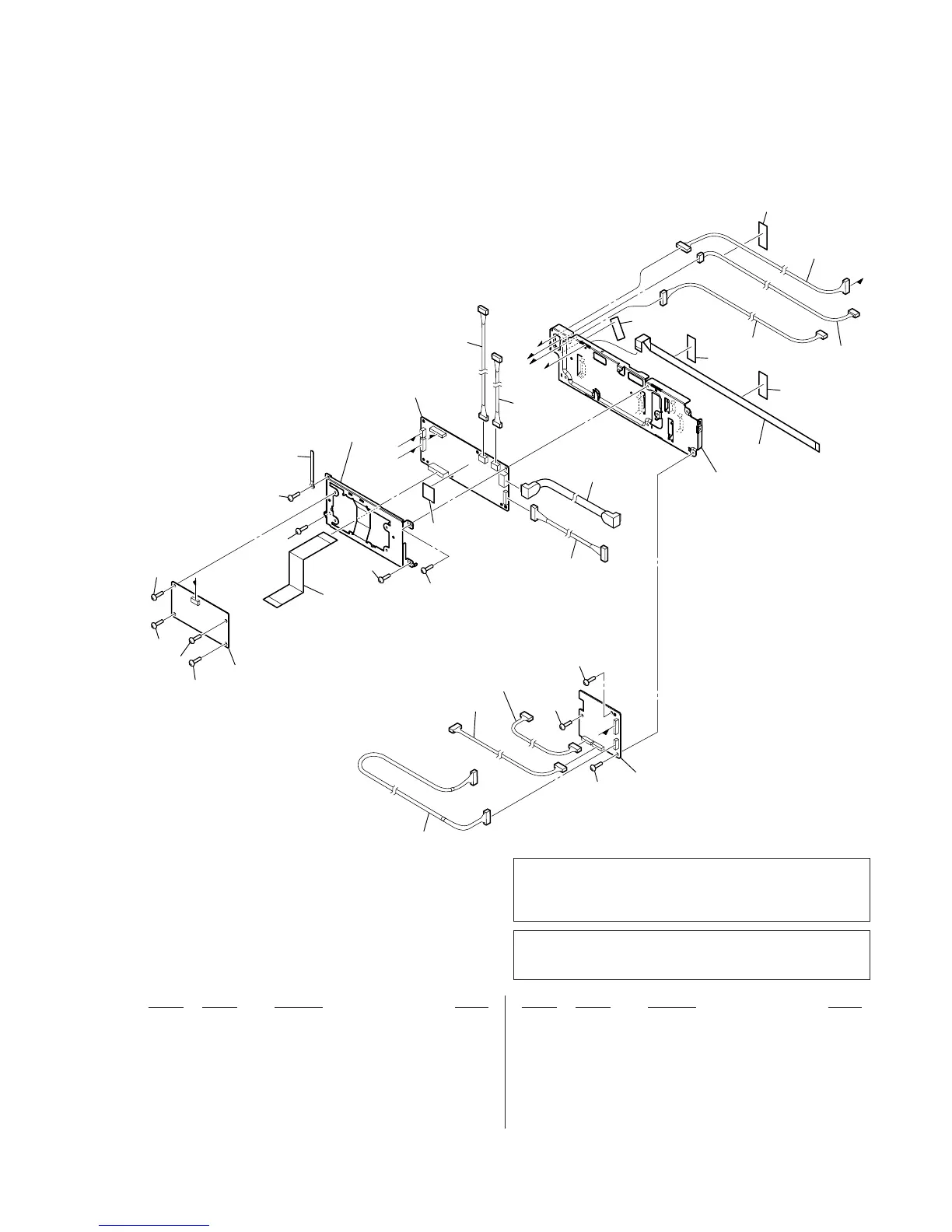

6-6. MAIN BOARD, U-COM BOARD SECTION
251 A-1945-088-A U-COM BOARD, COMPLETE
252 A-1945-063-A FPGA DSP BOARD, COMPLETE
* 253 3-703-150-11 CLAMP
254 3-077-331-62 +BV3 (3-CR)
255 4-478-826-01 SHEET RADIATION (20)
256 A-1989-167-A MAIN BOARD, COMPLETE (for SERVICE)
(US, CND) (See Note 1)
256 A-1989-168-A MAIN BOARD, COMPLETE (for SERVICE)
(AEP, UK) (See Note 1)
FFC2 1-828-774-51 WIRE (FLAT TYPE) (24 CORE) (See Note 2)
WR4 1-969-719-11 HARNESS (E-001)
WR5 1-969-715-11 HARNESS (S-001)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
E
I
I
E
F
F
G
H
H
G
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
WR4
WR5
not supplied
not supplied
not supplied
256
255
254
254
254
254
253
252
254
254
254
254
254
254
254
251
FFC2
not supplied
not supplied
not supplied
Note 1: When the complete MAIN board is replaced, refer to “NOTE
OF REPLACING THE COMPLETE MAIN BOARD” and
“CHECKING METHOD OF NETWORK CONNECTION” on
page 5.
Note 2: Wires (fl at type) for service is straight.
When replacing wire (fl at type), install it after bending it in the
same form as that before replacement.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
