Sony HAP-S1 Service Manual

106
HAP-S1

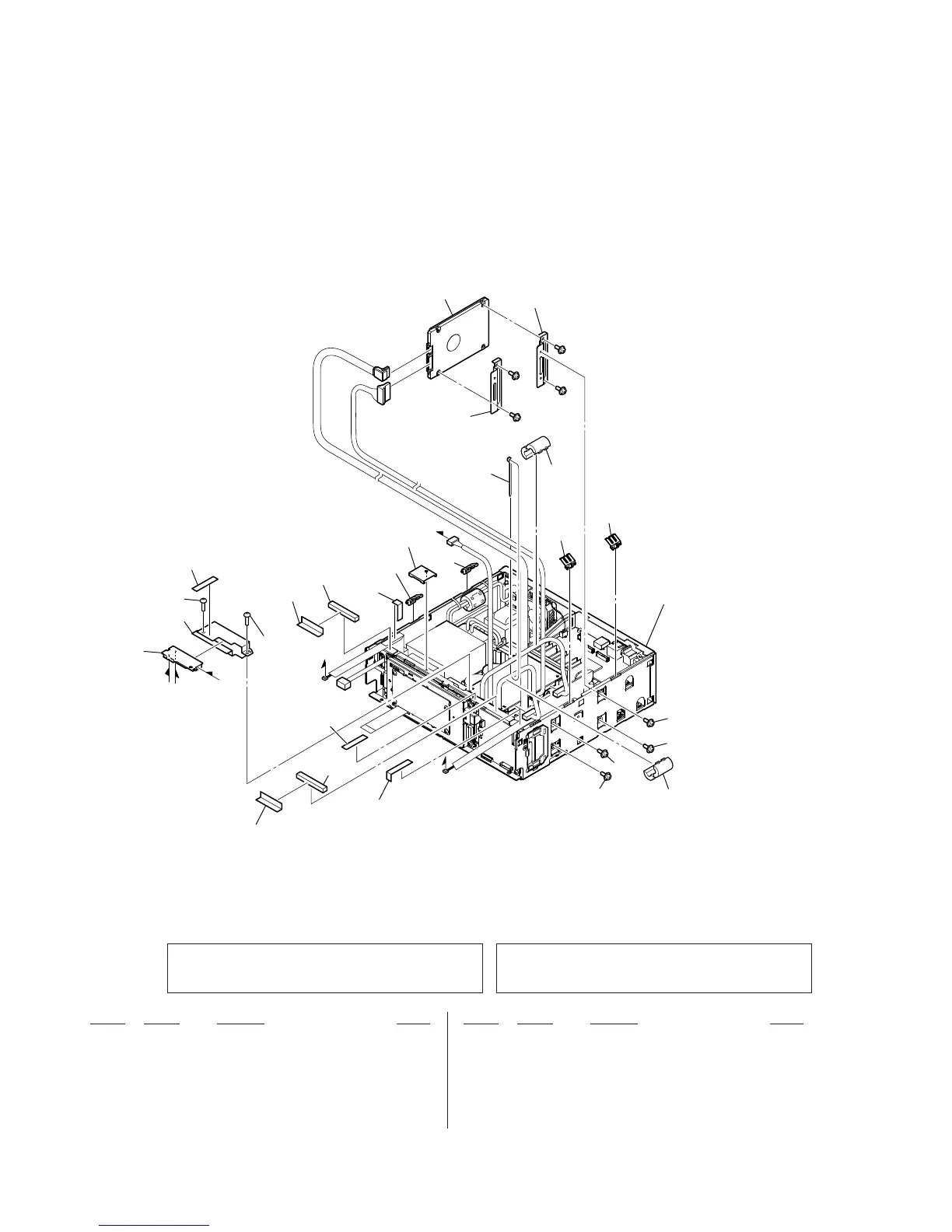

6-3. HDD SECTION
D
D
C
C
B
B
101
102
104
104
103
101
not supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
FC1
HDD1
not supplied
ALLEGRO-ANT-R board section
not supplied
WBC1
not supplied
not supplied
not supplied
104
105
105
105
104
FC2
#1
#1
#1
#1
105
101 4-486-366-01 GASKET (6X6)
102 3-077-331-62 +BV3 (3-CR)
103 4-474-331-01 FLAT SCREW
104 4-469-024-01 GND PLATE (AL)
105 4-467-898-01 STEP SCREW
FC1 1-481-528-11 FILTER, CLAMP (FERRITE CORE)
FC2 1-481-528-11 FILTER, CLAMP (FERRITE CORE)
0 HDD1 1-458-715-11 HDD/TSB-AQUARIUS-SLIM (500GB)
(Hard Disk Drive) (See Note 2)
WBC1 1-458-601-31 CARD, WLAN/BT COMBO (See Note 1)
#1 7-682-946-09 SCREW +PSW 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: When the WLAN/BT COMBO card (Ref. No. WBC1)
is replaced, refer to “CHECKING METHOD OF
NETWORK CONNECTION” on page 5.
Note 2: When the hard disk drive (Ref. No. HDD1) is replaced,
refer to “NOTE OF REPLACING THE HARD DISK
DRIVE (Ref. No. HDD1)” on page 4.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
