Sony HAP-S1 Service Manual

107
HAP-S1

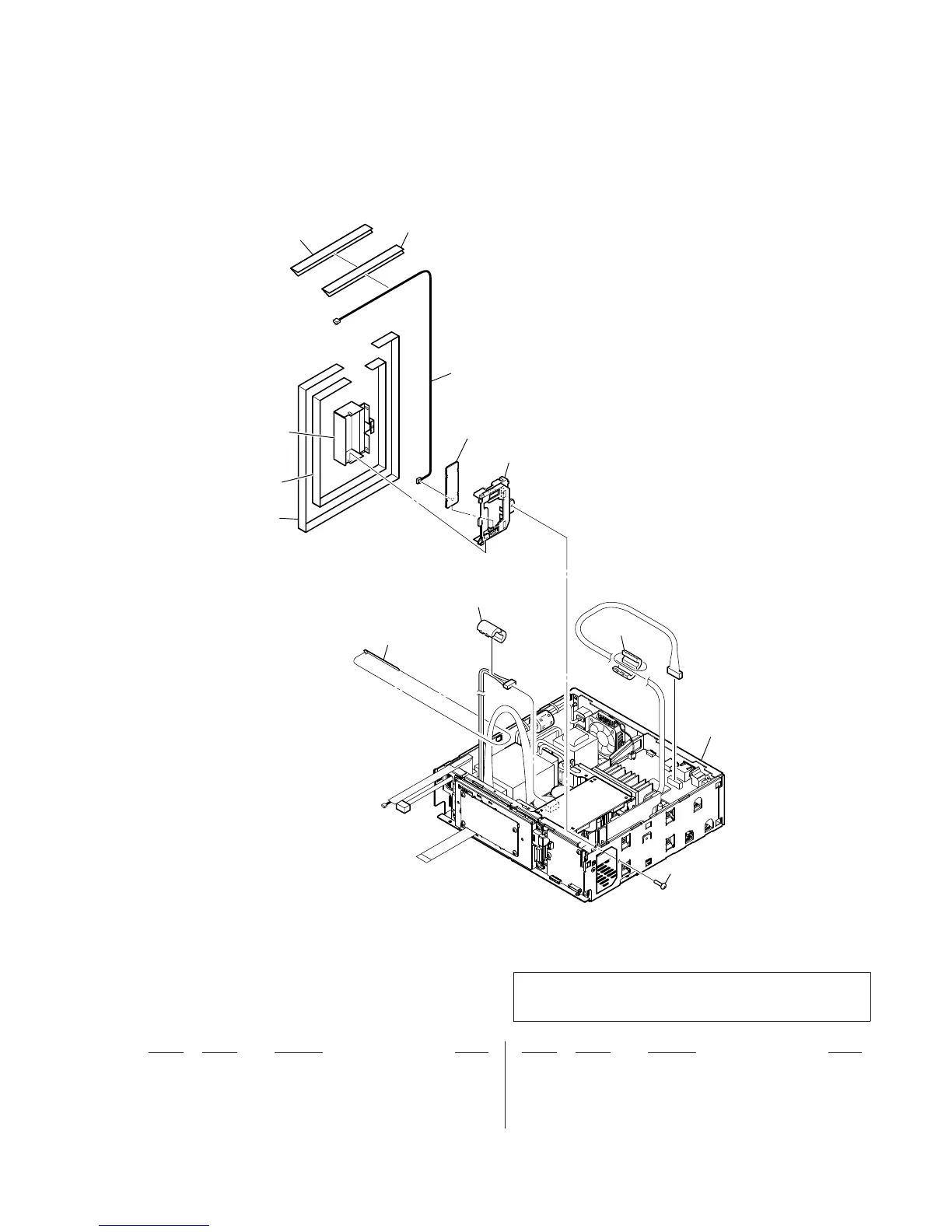

6-4. ALLEGRO-ANT-R BOARD SECTION
151 4-474-331-01 FLAT SCREW
152 4-485-976-01 TAPE (WA-L)
153 4-484-735-01 SHEET (WA-L)
154 4-485-977-01 TAPE (WA-M) (for R-ch coaxial cable)
155 4-485-586-01 SHEET (WA-M) (for R-ch coaxial cable)
FC4 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
FC5 1-481-528-11 FILTER, CLAMP (FERRITE CORE)
WR2 1-846-781-11 CABLE, COAXIAL (U.FL CONNECTOR) (for R-ch)
(See Note)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
154
155
153
not supplied
WR2
not supplied
not supplied
FC4
FC5
not supplied
(ALLEGRO-ANT-R board)
DCDC board section
Note: When the coaxial (U.FL connector) cable (Ref. No. WR2) is re-
placed, refer to “CHECKING METHOD OF NETWORK CON-
NECTION” on page 5.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
