Sony HAP-S1 Service Manual

HAP-S1
21

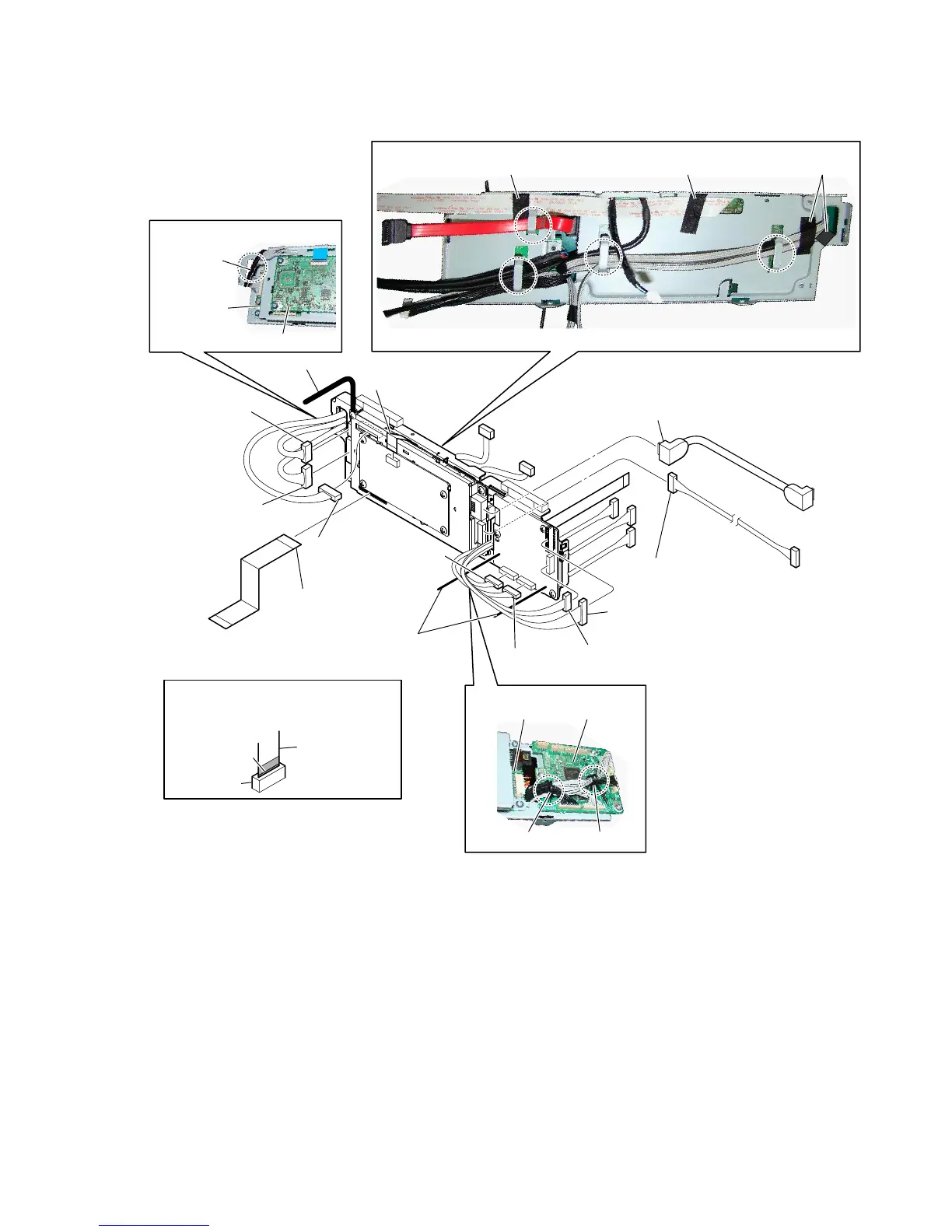

2-19. SUB FRAME BLOCK WIRES
colored line
connector
flexible flat cable
Note:
When installing the flexible flat cable,
ensure the colored line.
No slanting after insertion.
1 flexible flat cable (40P)
(CN703)
2 flexible flat cable (24P)
(CN4006)
3 Remove wires from the clamp.
4 Remove wires from two lead pins.
5 connector
(CN203)
6 connector
(CN701)
7 connector
(CN201)
8 connector
(CN5002)
9 connector
(CN5003)
0 connector
(CN5008)
qa connector
(CN5005)
qs harness (E-001) (WR4)
(CN601)
qd harness (S-001) (WR5)
(CN1001)
lead pin lead pin
FPGA DSP board
MAIN board
clamp
:LUHVHWWLQJ
:LUHVHWWLQJ
:LUHVHWWLQJ
MAIN board U-COM board
–5HDUYLHZ–
saranet cushion saranet cushion saranet cushion

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
