Sony HAP-S1 Service Manual

108
HAP-S1

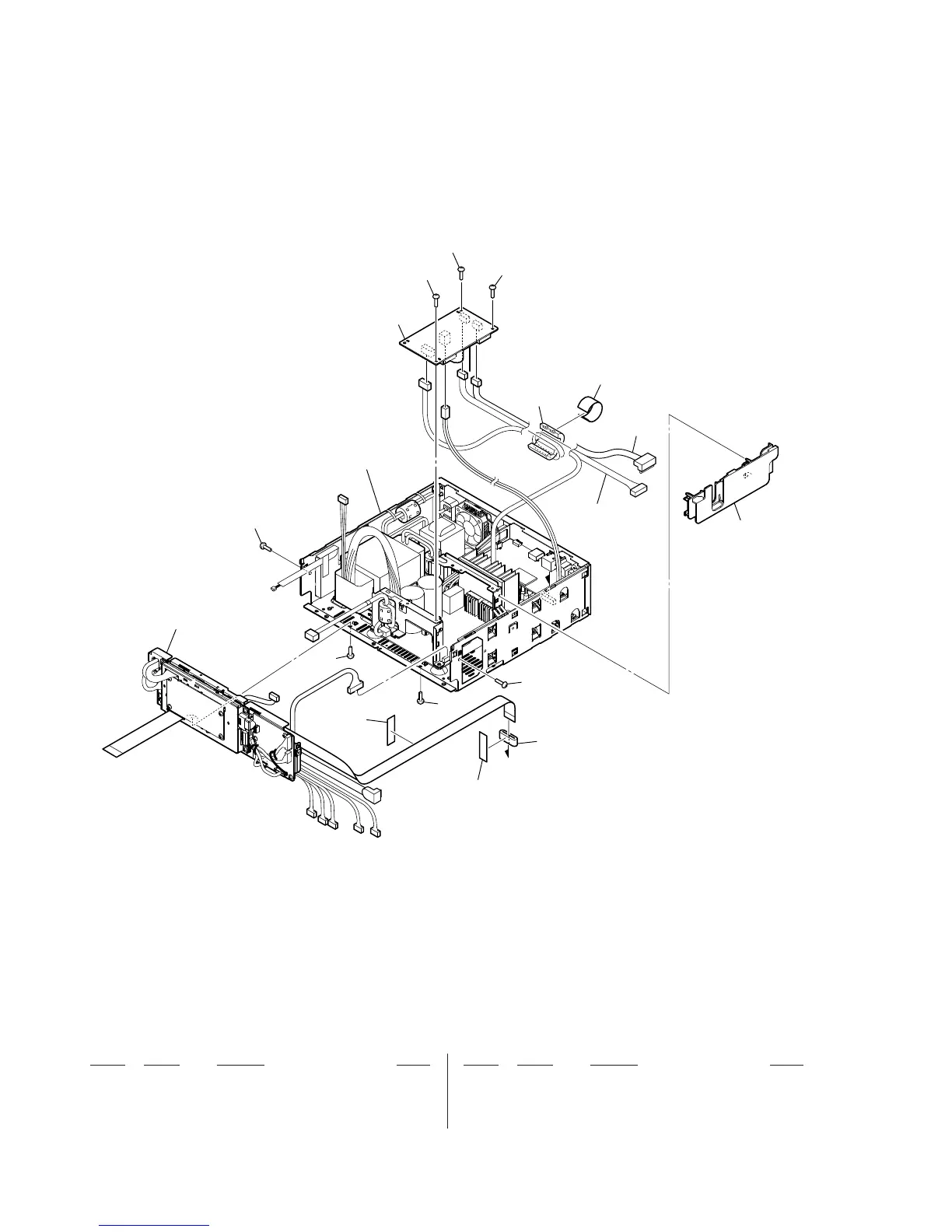

6-5. DCDC BOARD SECTION
201 A-1945-082-A DCDC BOARD, COMPLETE
202 4-474-331-01 FLAT SCREW
203 3-077-331-62 +BV3 (3-CR)
FC3 1-400-640-11 CORE, FERRITE
FC6 1-500-082-11 CLAMP, SLEEVE FERRITE
WR3 1-969-717-11 HARNESS (S-003)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
WR3
not supplied
not supplied
not supplied
not supplied
FC6
FC3
201
203
203
203
202
202
202
202
MAIN board, U-COM board section
AMP board, DIGITAL IO board section

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
