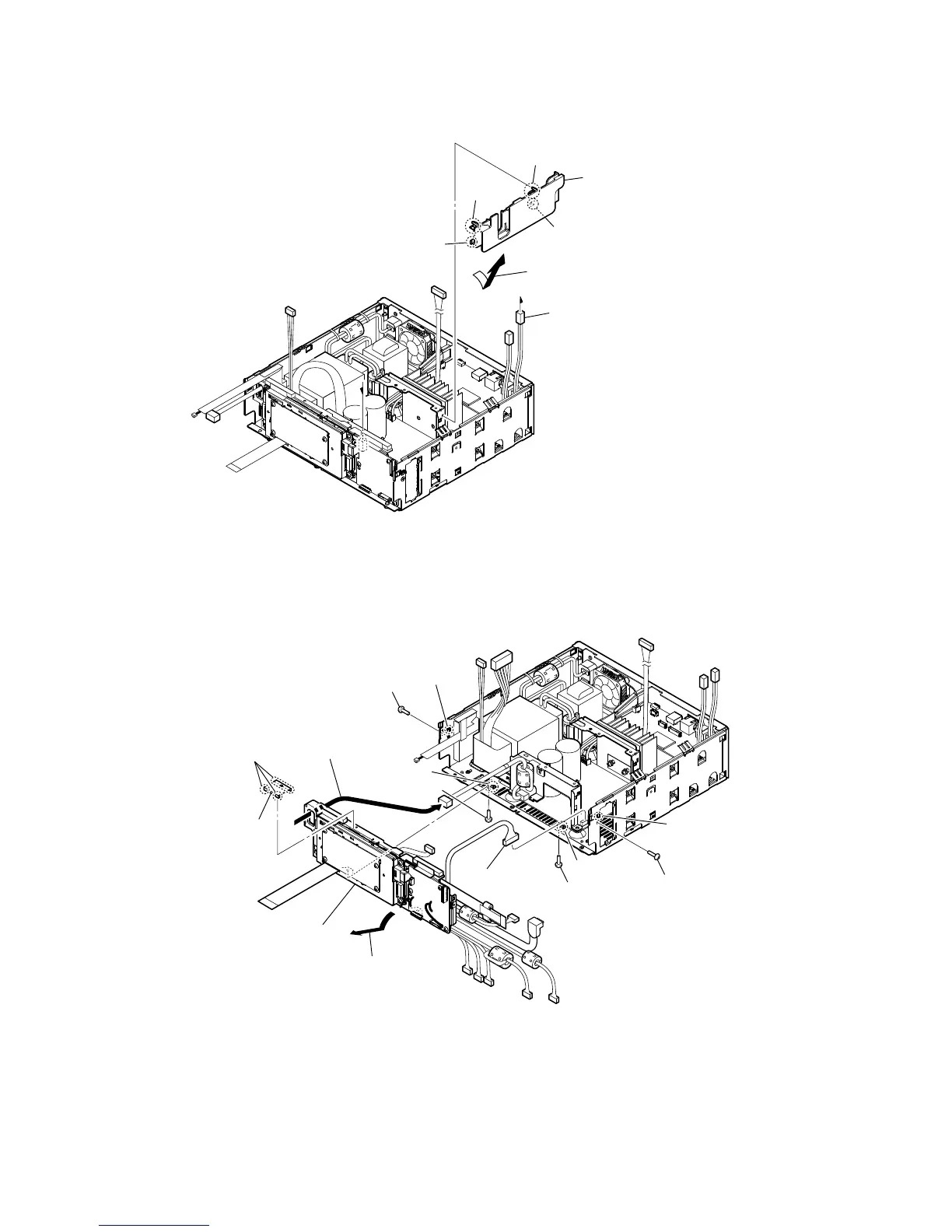

2-17. WIRE HOLDER
2-18. SUB FRAME BLOCK
A
A
1 connector
(CN213)
2 claw
2 claw
4 claw
4 claw
3 Remove the wire holder
in the direction of an arrow.
5 wire holder
1 three claws
7 Draw out the wire.
2 shield plate (FFC)
3 flat screw
4 claw
3 flat screw
8 connector
(CN215)
3 flat screw
3 flat screw
4 claw
6 claw
6 claw
5 Remove the sub frame block
in the direction of an arrow.
9 sub frame block
