Sony HAP-S1 Service Manual

HAP-S1
26

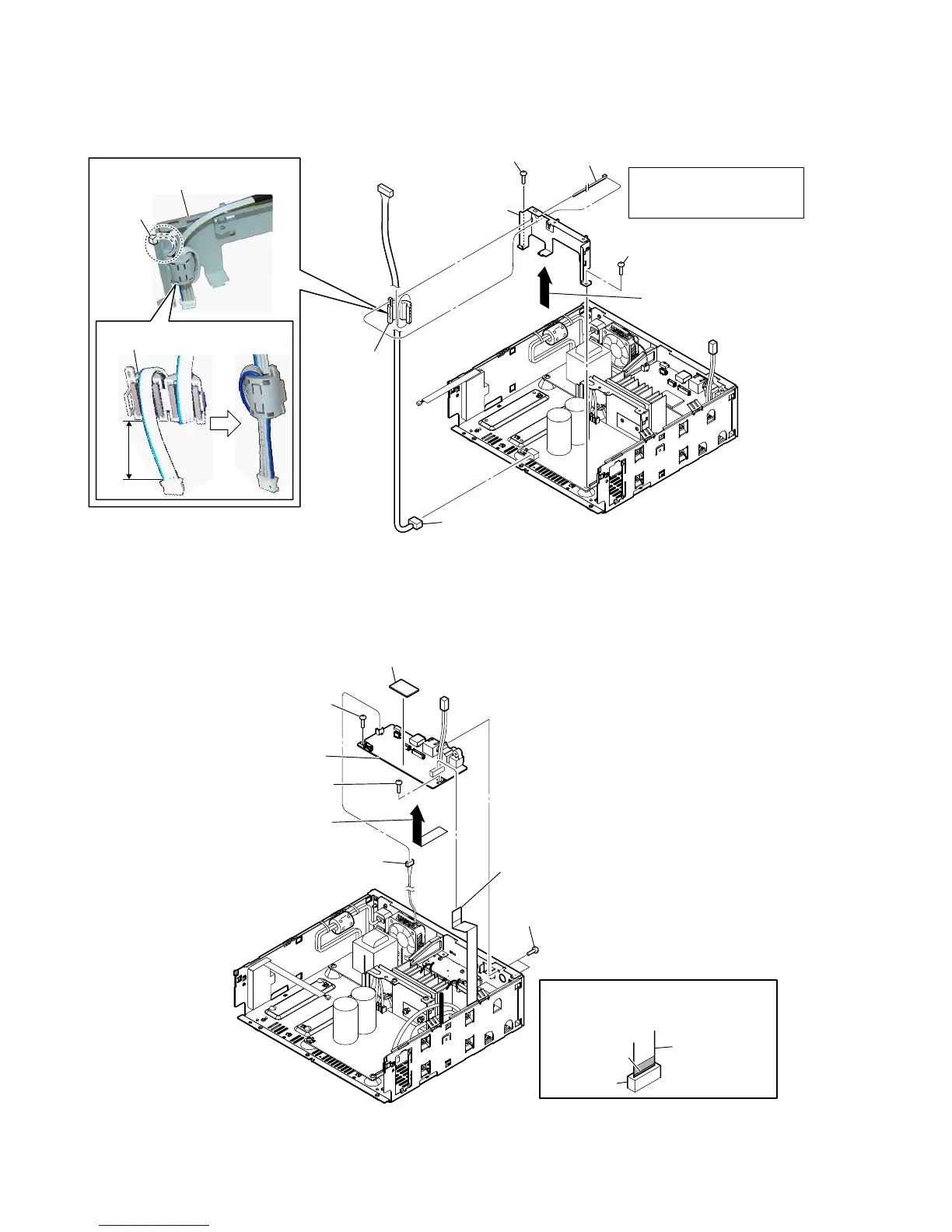

2-26. BRACKET (DCDC-F)
2-27. DIGITAL IO BOARD
2 Remove the bracket
(DCDC-F) block in the
direction of an arrow.
6 bracket (DCDC-F)
bracket (DCDC-F)
4 Cut the cable tie.
cable tie
Note:
In reassembling, use new
cable tie to fasten the clamp
same as before.
1 screw (BV3)
1 screw (BV3)
3 connector
(CN202)
5 sleeve ferrite
clamp
(FC8)
:LUHVHWWLQJ
20 ± 5 mm
sleeve ferrite clamp
(FC8)
3 two screws
(BV3)
4 screw
(BV3)
4 screw
(BV3)
5 Remove the DIGITAL IO board block
in the direction of an arrow.
7 DIGITAL IO board
6 cushion (digital)
1 flexible flat cable (22P)
(CN4007)
2 connector
(CN4010)
colored line
connector
flexible flat cable
Note:
When installing the flexible flat cable,
ensure the colored line.
No slanting after insertion.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
