Sony HAP-S1 Service Manual

HAP-S1
29

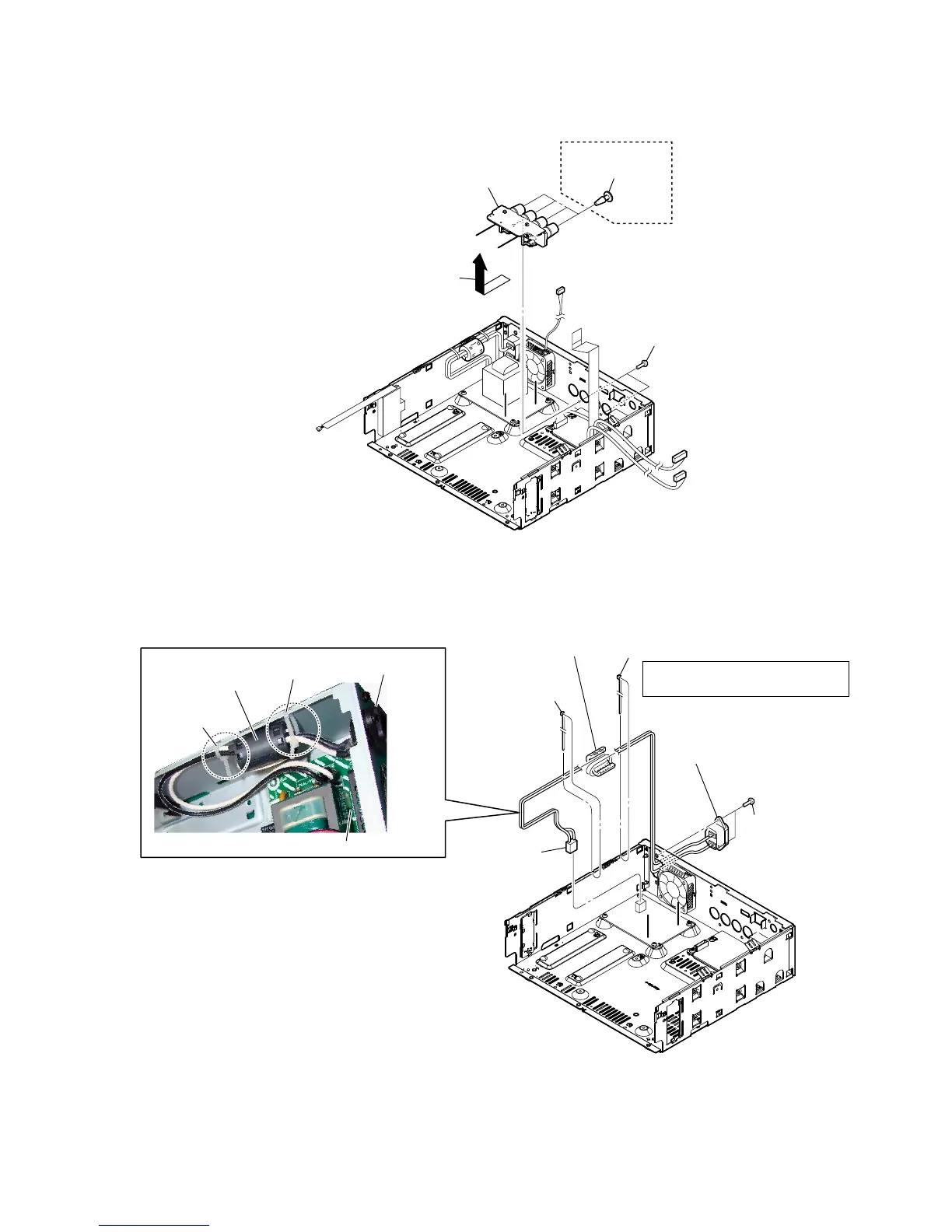

2-31. SPTM BOARD
2-32. AC INLET 2P (AC1)
(AEP, UK)
1 two screws
(BV3)
2 Remove the SPTM board block
in the direction of an arrow.
4 SPTM board
3 four canoe clips
4 two screws
(BV3)
5 AC inlet 2P (AC1)
1 connector
(CN1903)
2 Cut the cable tie.
cable tie
cable tie
Note:
In reassembling, use new cable tie
to fasten the clamp same as before.
2 Cut the cable tie.
3 clamp filter (ferrite core)
(FC10)
clamp filter (ferrite core)
(FC10)
STANBY board
AC inlet 2P (AC1)
:LUHVHWWLQJ

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
