Sony HAP-S1 Service Manual

HAP-S1
13

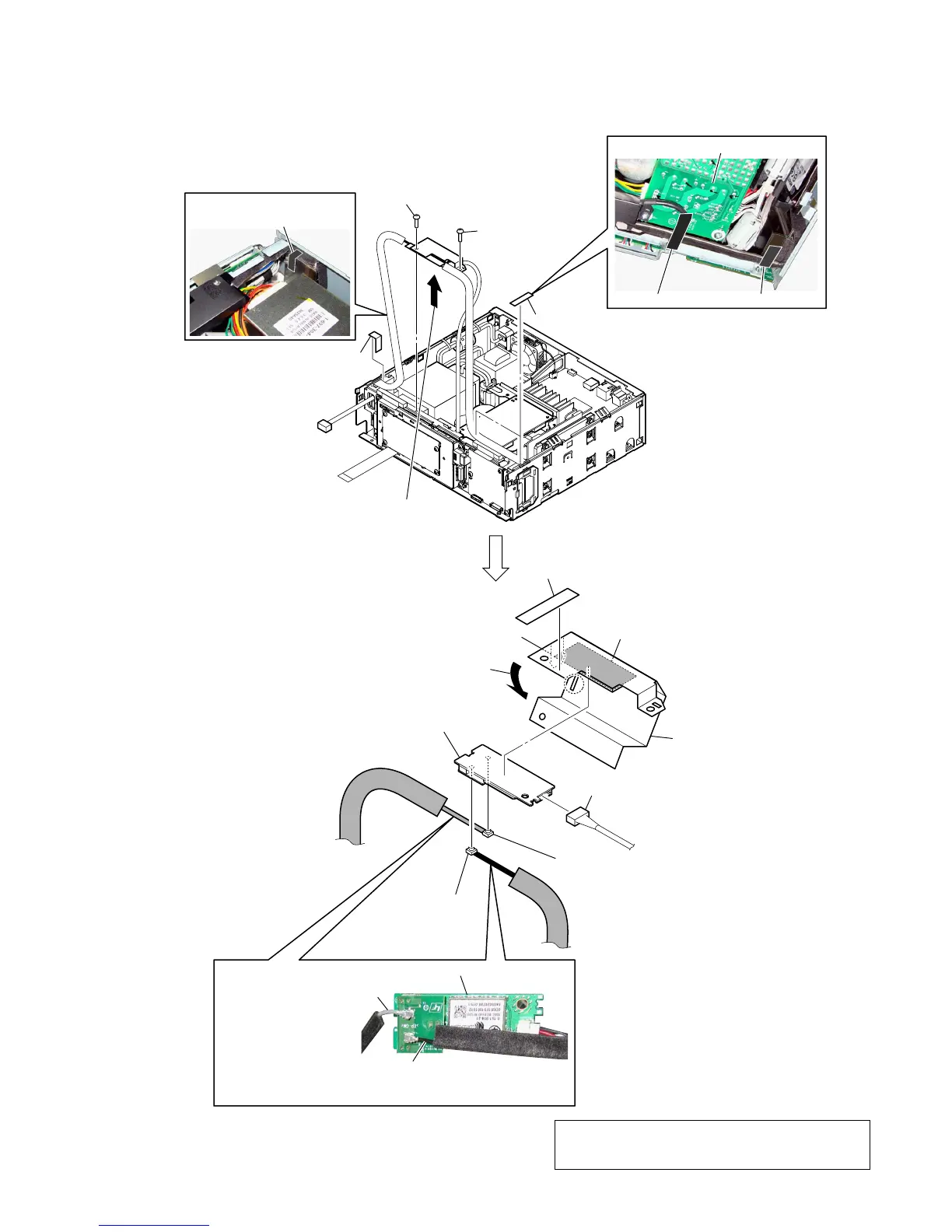

2-8. WLAN/BT COMBO CARD (WBC1)
1 saranet cushion
5 saranet cushion
6 claw
7 Open the cover (RF).
qa adhesive sheet
9 coaxial cable (U.FL connector)
(C1)
[gray]
coaxial cable (U.FL connector)
(C1)
[gray]
0 connector
8 coaxial cable
(U.FL connector)
(C2)
[black]
coaxial cable (U.FL connector)
(C2)
[black]
saranet cushion
saranet cushion
DCDC board
saranet cushion
1 two saranet cushions
2 screw (BV3)
3 flat screw
:LUHVHWWLQJ
:LUHVHWWLQJ
4 Remove the WLAN/BT COMBO card
block in the direction of an arrow.
qd WLAN/BT COMBO card
(WBC1)
WLAN/BT COMBO card
(WBC1)
qs cover (RF)
–%RWWRPYLHZ–
Note: When the WLAN/BT COMBO card (Ref. No. WBC1)
is replaced, refer to “CHECKING METHOD OF NET-
WORK CONNECTION” on page 5.
