HAP-S1

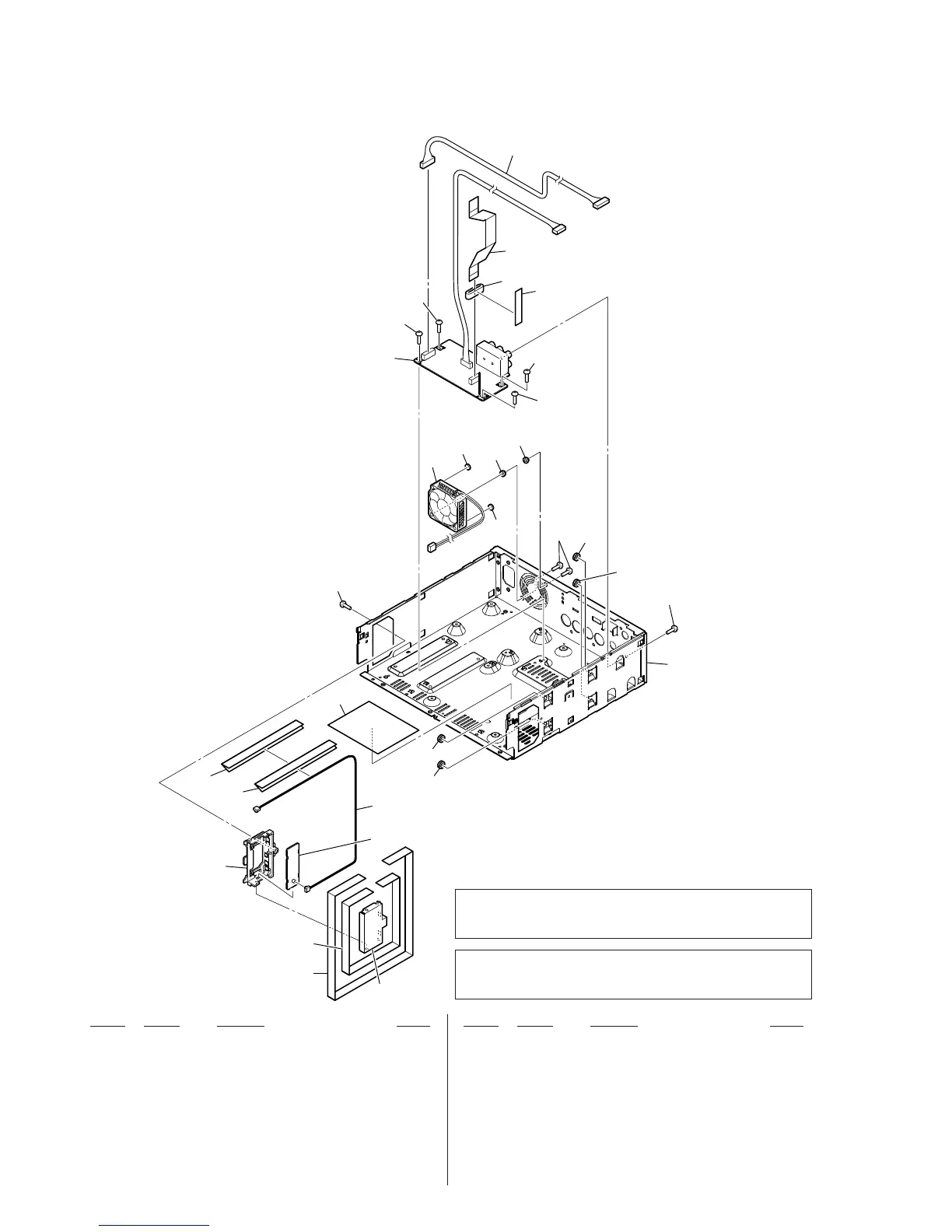

6-9. DAC BOARD, ALLEGRO-ANT-L BOARD SECTION
401 4-485-976-01 TAPE (WA-L)
402 4-484-735-01 SHEET (WA-L)
403 4-484-736-01 SHEET (WA-S) (for L-ch coaxial cable)
404 4-485-978-01 TAPE (WA-S) (for L-ch coaxial cable)
405 4-485-979-01 SHEET (AMP)
406 4-467-899-01 DAMPER (HDD)
407 4-474-331-01 FLAT SCREW
408 A-1945-074-A DAC BOARD, COMPLETE (AEP, UK)
408 A-1945-075-A DAC BOARD, COMPLETE (US, CND)
409 3-077-331-62 +BV3 (3-CR)
410 4-471-459-01 CUSHION_F
411 4-468-810-01 BUSH (FAN)
412 3-077-331-41 +BV3 (3-CR)
FC11 1-400-640-11 CORE, FERRITE
FFC3 1-828-760-51 WIRE (FLAT TYPE) (22 CORE) (See Note 2)
0 M1 1-855-324-11 DC FAN
WR1 1-846-782-11 CABLE, COAXIAL (U.FL CONNECTOR) (for L-ch)
(See Note 1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
WR1
M1
not supplied
not supplied
not supplied
(ALLEGRO-ANT-L board)
FC11
401
402
403
404
405
406
406
406
410
410
411
407
408
409
409
409
409
406
FFC3
not supplied
not supplied
411
412
412
Note 1: When the coaxial (U.FL connector) cable (Ref. No. WR1) is
replaced, refer to “CHECKING METHOD OF NETWORK
CONNECTION” on page 5.
Note 2: Wires ( at type) for service is straight.
When replacing wire ( at type), install it after bending it in the
same form as that before replacement.
