Sony HAP-S1 Service Manual

HAP-S1
15

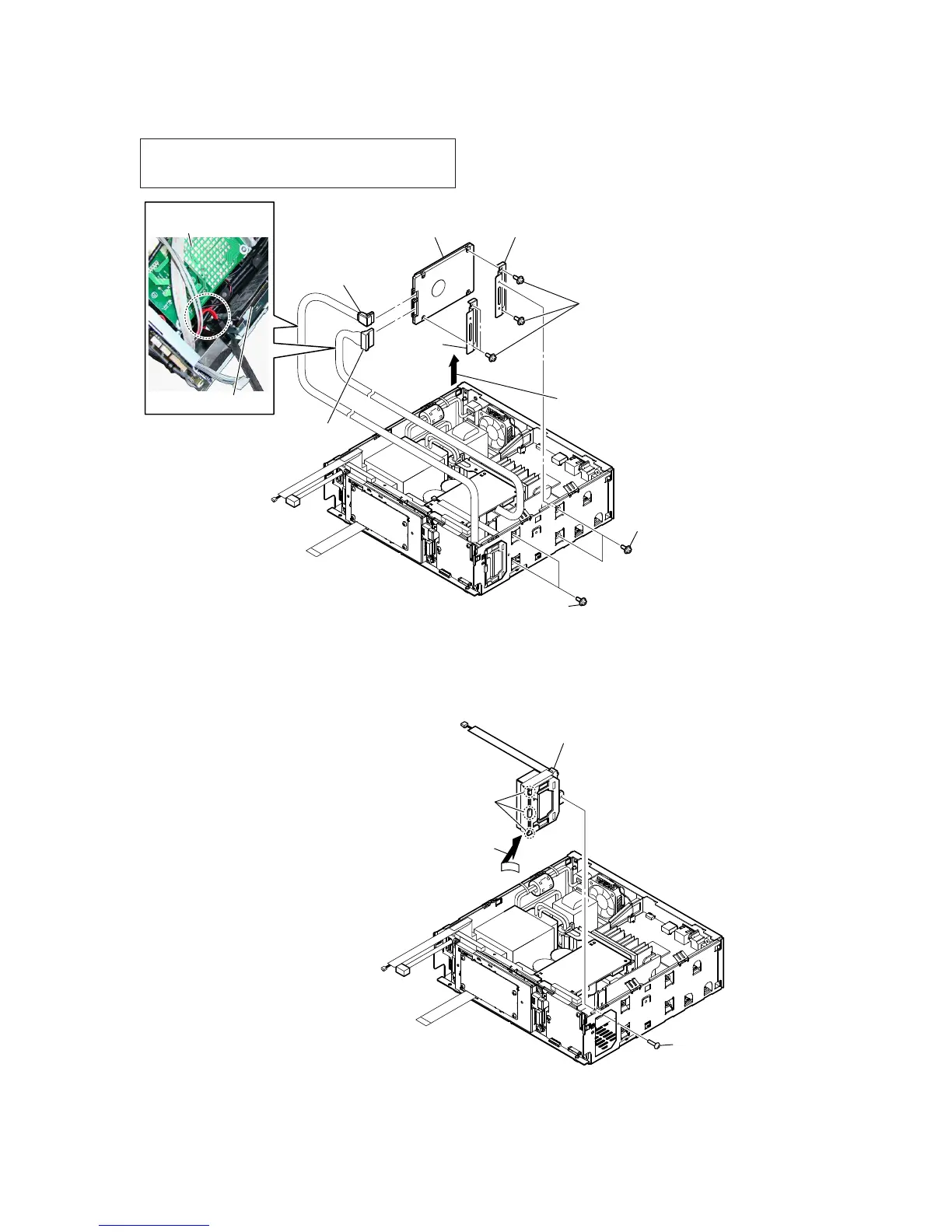

2-11. HDD (HDD1)
2-12. ANT HOLDER BLOCK (RIGHT SIDE)
1 two step screws
1 two step screws
3 HDD connector
(7 pins)
4 HDD connector
(15 pins)
2 Remove the HDD block in
the direction of an arrow.
6 bracket (HDD)
7 HDD (HDD1)
6 bracket
(HDD)
5 four screws (PSW3 u 5)
Note 2:
No problem using the electric screwdriver
when installing or removing these screws.
When tightening screws, tighten the below
torque value.
tightening torque:
.  . Nm
HDD (HDD1)
DCDC board
:LUHVHWWLQJ
1 flat screw
2 Remove the ANT holder block (right side)
in the direction of an arrow.
4 ANT holder block (right side)
3 three claws
Note 1: When the hard disk drive (Ref. No. HDD1) is replaced,
refer to “NOTE OF REPLACING THE HARD DISK
DRIVE (Ref. No. HDD1)” on page 4.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
