Sony HAP-S1 Service Manual

111
HAP-S1

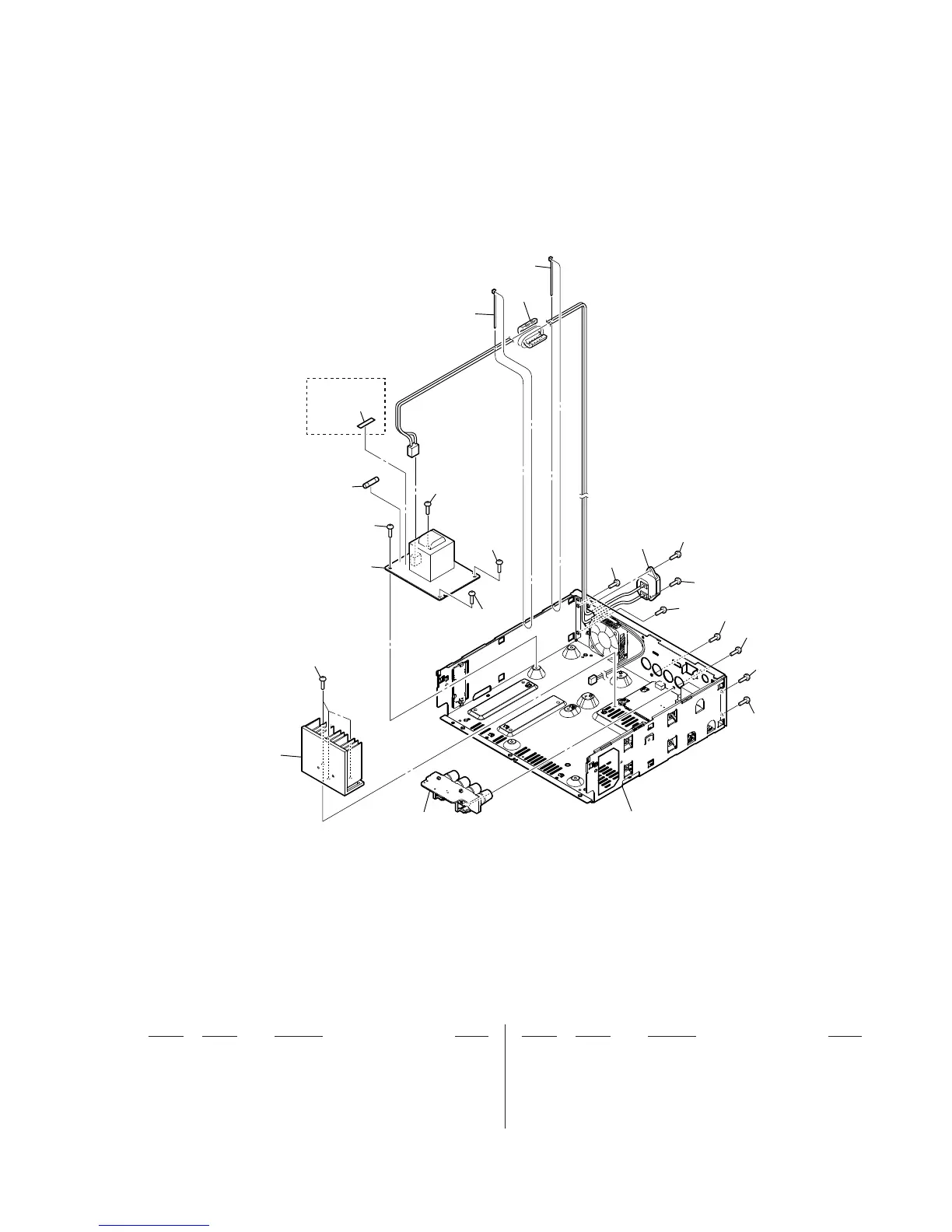

6-8. SPTM BOARD, STANBY BOARD SECTION
351 A-1945-077-A SPTM BOARD, COMPLETE (AEP, UK)
351 A-1945-078-A SPTM BOARD, COMPLETE (US, CND)
352 3-077-331-41 +BV3 (3-CR)
353 A-1945-084-A STANBY BOARD, COMPLETE (AEP, UK)
353 A-1945-085-A STANBY BOARD, COMPLETE (US, CND)
354 3-077-331-62 +BV3 (3-CR)
0 AC1 1-821-082-21 INLET, AC 2P
0 F902 1-532-388-33 FUSE (T 2 AL/250 V) (AEP, UK)
0 F902 1-532-504-33 FUSE (T 4 AL/250 V) (US, CND)
FC10 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
F902
not supplied
not supplied
(AEP, UK)
not supplied
AC1
FC10
351
352
352
352
352
352
352
352
352
352
353
354
354
354
354
DAC board, ALLEGRO-ANT-L board section

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \
