Sony HAP-S1 Service Manual

HAP-S1
25

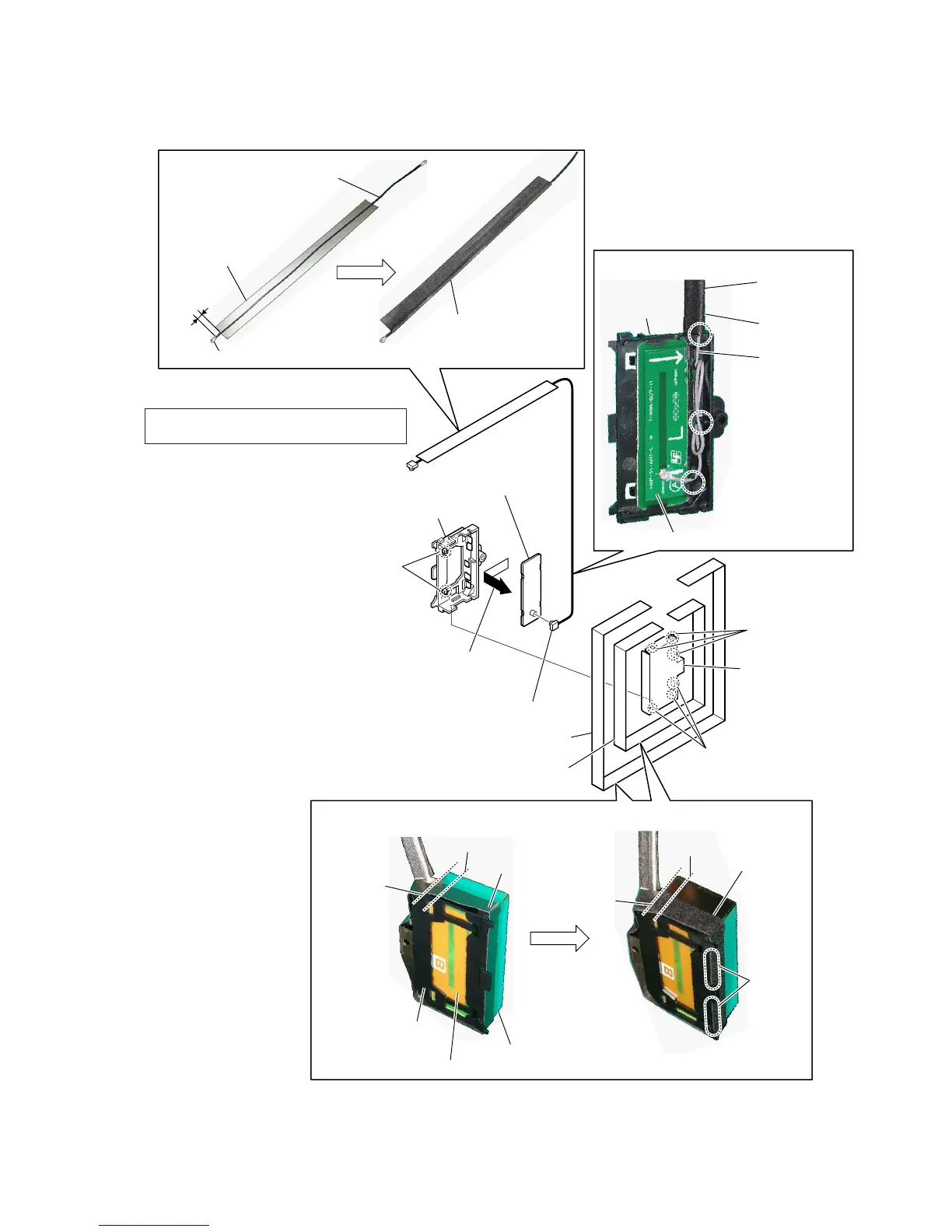

2-25. ALLEGRO-ANT-L BOARD
:LUHVHWWLQJ
1 tape (WA-L)
connector facing up
5 mm
2 sheet (WA-L)
tape (WA-M)
sheet (WA-M)
3 three claws
3 three claws
4 ANT shield (L)
ALLEGRO-ANT-L board
ANT holder
no wrapped side
wrapped side
5 coaxial cable (U.FL connector) (WR1)
(CN9001)
coaxial cable
(U.FL connector)
(WR1)
coaxial cable
(U.FL connector)
(WR1)
6 two claws
8 ANT holder
7 Remove the ALLEGRO-ANT-L
board block in the direction of
an arrow.
9 ALLEGRO-ANT-L board
:LUHVHWWLQJ
ANT shield (L)
ALLEGRO-ANT L board
ANT holder
start point
tape (WA-L)
end point
sheet (WA-L)
No gap.
start point
end point
$WWDFKHGSRVLWLRQRIWKHVKHHW:$/DQGWKHWDSH:$/
Note: The ALLEGRO-ANT-L board is not covered
in the servicing.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \

Weight and Dimensions

Width	- mm
Weight	- g
