Sony HAP-S1 Service Manual

HAP-S1
23

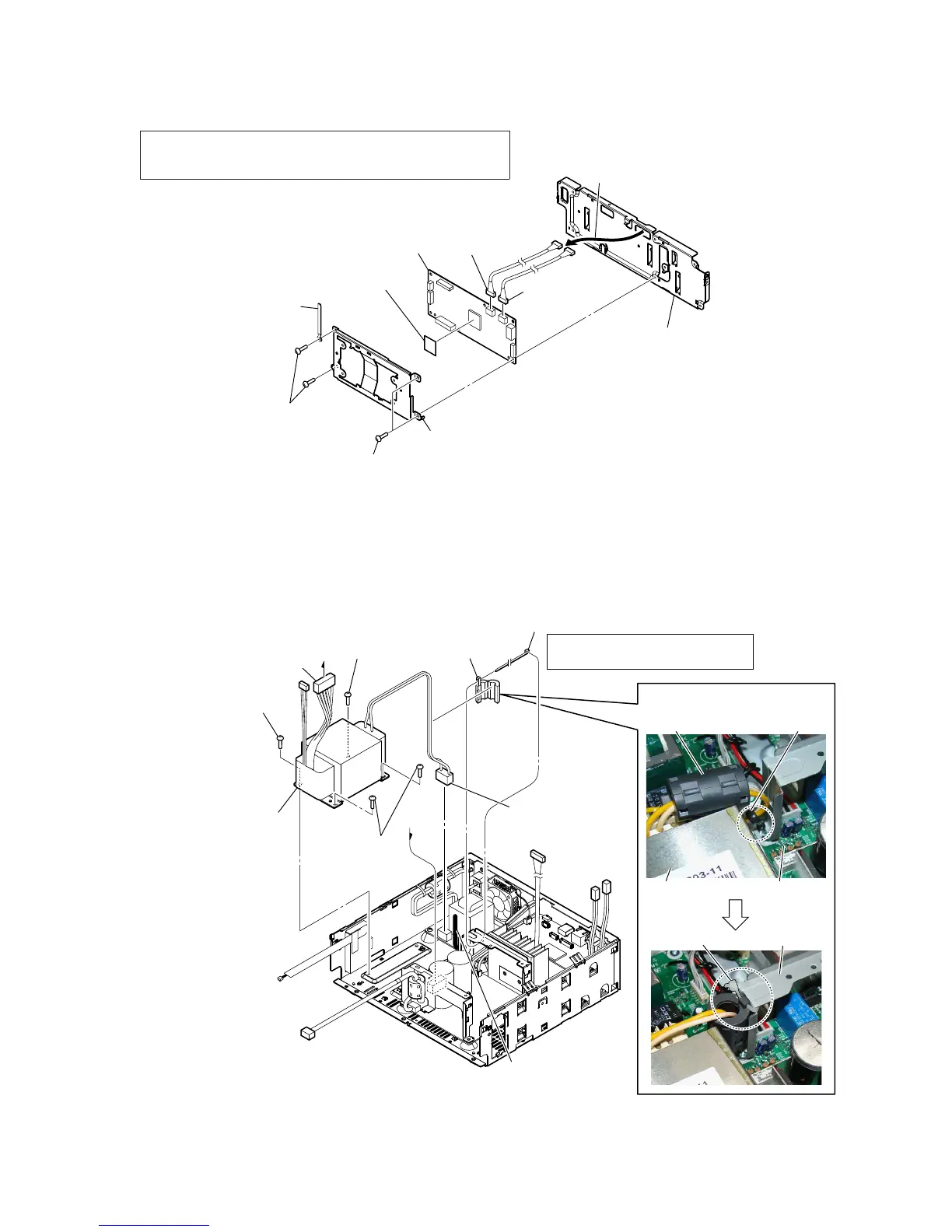

2-22. MAIN BOARD
2-23. POWER TRANSFORMER (T1)
6 connector
(CN1002)
7 connector
(CN1003)
8 sheet radiation (20)
9 MAIN board
1 two screws
(BV3)
1 two screws
(BV3)
2 clamp
3 bracket (FPGA)
4 Draw out two wires.
5 sub frame (ALG)
1 connector
(CN201)
4 connector
(CN1903)
A
A
2 Cut the cable tie.
cable tie bracket (DCDC-R)
Note:
In reassembling, use new cable tie
to fasten the clamp same as before.
3 Remove the wire
from the clamp.
clamp
5 clamp filter
(ferrite core)
(FC7)
clamp filter (ferrite core)
(FC7)
6 two screws
(BV sumitite
S 4 u 6 round)
6 screw
(BV sumitite
S 4 u 6 round)
7 power transformer
(T1)
power transformer
(T1)
AMP board
6 screw
(BV sumitite
S 4 u 6 round)
:LUHVHWWLQJ
Note: When the complete MAIN board is replaced, refer to “NOTE OF
REPLACING THE COMPLETE MAIN BOARD” and “CHECK-
ING METHOD OF NETWORK CONNECTION” on page 5.

Sony HAP-S1 Specifications

General

Product color	Silver
Audio formats supported	AAC, AIFF, ALAC, FLAC, LPCM, MP3, WAV, WMA
Impedance	16 Ω
Frequency range	10 - 100000 Hz
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Channels quantity	2 channels
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Automatic synchronization	You don't have to change personal settings when first connecting your device. Your device is automatically synchronized with the settings of your car, so once you have done it for the car, that's it!
Storage media type	HDD
Total storage capacity	500 GB
HDCP	No
Headphone outputs	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Display diagonal	4.3 \
