6
HCD-FL3
123
IC922
123
IC922

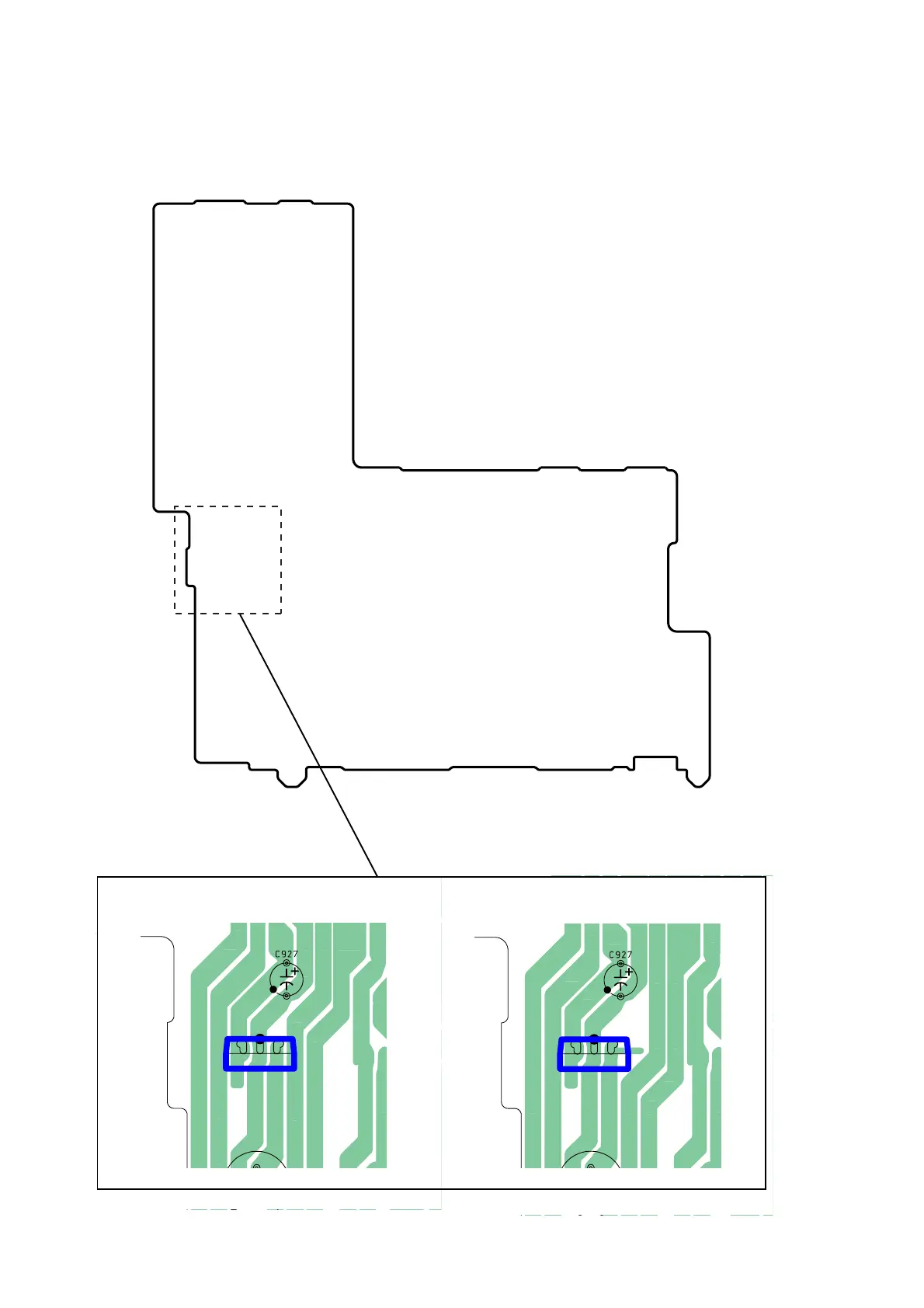

New/former type of the CENTER SW AMP/SUB TRANS boards are discriminated by difference of the pattern of the CENTER SW AMP
board.
– CENTER SW AMP BOARD (Conductor Side) –
Former type New type
^^
