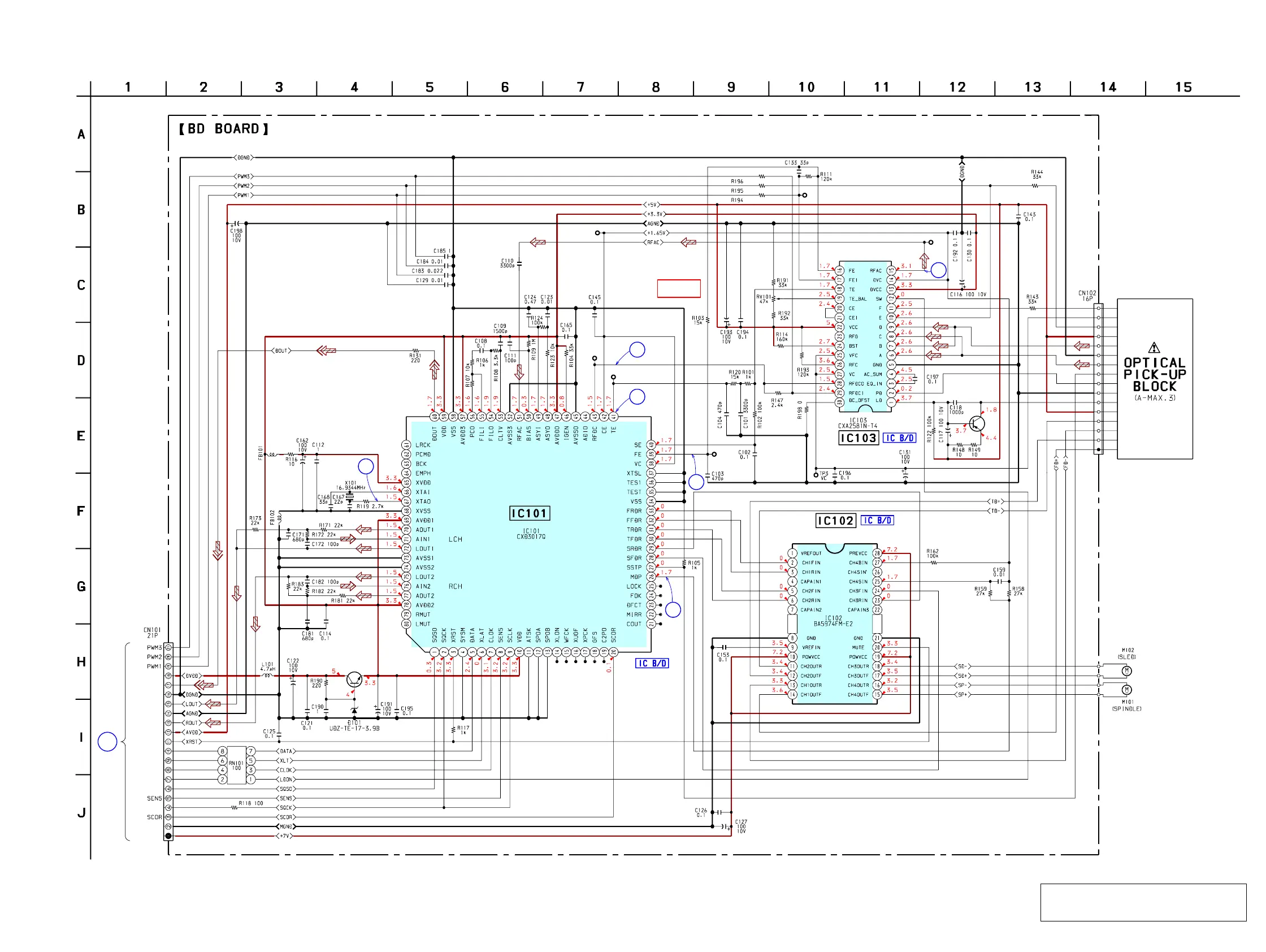

8-8. SCHEMATIC DIAGRAM – BD Board – • See page 53 for Waveforms. • See page 72 for IC Block Diagrams.
•Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD PLAY
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
A
MC
BOARD
CN106
1
2
3
4
5
6
RV101
E-F BALANCE
(1 TRACK JUMP)
TP
(RFDC)
TP2
(TEO)
TP
(DVC)
680
220k
33k
TP
(FEI)
TP
(RFAC)
Q101
2SB710A-RT1
AUTOMATIC
POWER CONTROL
RF AMP,
FOCUS/TRACKING
ERROR AMP
FOCUS/TRACKING COIL DRIVE,
SPINDLE/SLED MOTOR DRIVE
TP
(FEO)
DIGITAL SERVO PROCESSOR
DIGITAL SIGNAL PROCESSOR,
DIGITAL FILTER,
D/A CONVERTER
Q102
2SD1664-T100-QR
+3.3V REGULATOR
DSP+5V (SW)
D-OUT
DSP-GND
L-CH
RF-GND
R-CH
RF+5V (SW)
X-RST
CD-DATA
CD-CLK
LD-ON
SQ-DATA
SQ-CLK
M-GND
M+7V (UNSW)
X-LAT
(Page
47)
