Sony HCD-FL3 - Chassis Section-2

89
HCD-FL3

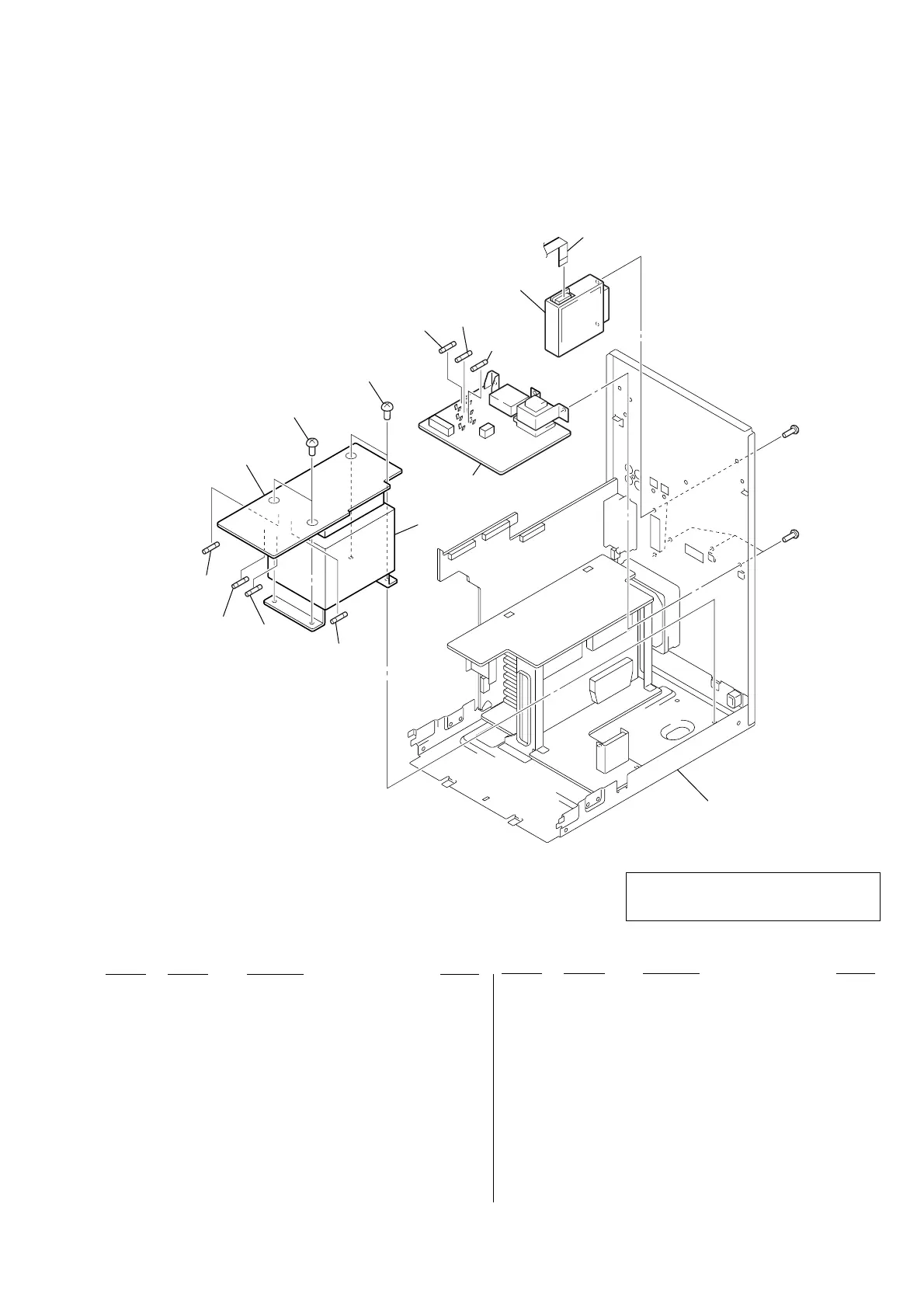

9-7. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
353 1-590-218-11 WIRE (FLAT TYPE) (11 CORE)
354 A-4730-236-A TRANS BOARD, COMPLETE (AR)
354 A-4676-862-A TRANS BOARD, COMPLETE (AUS)
354 A-4676-872-A TRANS BOARD, COMPLETE (MX)
354 A-4728-426-A TRANS BOARD, COMPLETE (E2, E51, SP)
355 4-900-386-01 SCREW
358 1-693-572-21 TUNER (FM/AM) (EXCEPT E2)
358 1-693-574-22 TUNER (FM/AM) (E2)
359 A-4676-864-A SUB TRANS BOARD, COMPLETE (AUS)
359 A-4676-874-A SUB TRANS BOARD, COMPLETE (MX)
359 A-4728-434-A SUB TRANS BOARD, COMPLETE (E2, E51, SP)
359 A-4730-238-A SUB TRANS BOARD, COMPLETE (AR)
0 F911 1-532-286-00 FUSE, GLASS TUBE (2.5A/250V) (E2, E51, SP)
0 F912 1-532-286-00 FUSE, GLASS TUBE (2.5A/250V) (E2, E51, SP)
0 F913 1-532-286-00 FUSE, GLASS TUBE (2.5A/250V) (AR, AUS)
0 F913 1-532-299-00 FUSE, GLASS TUBE (5A/250V)
(E2, E51, MX, SP)
0 F914 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F915 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F918 1-532-299-00 FUSE, GLASS TUBE (5A/250V)
0 F919 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (4A/250V)
0 T911 1-437-671-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
354
355
355
359
353
358
chassis section-3
T911
F919
F918
F915
F914
F913
F912
F911
#1
#1
