Sony HCD-FL3 - CD Mechanism Deck (CDM53 M-30 BD60); Fitting Base Assy, Bracket (Chassis), Magnet Assy

13
HCD-FL3
1 two connectors
(CN709, 715)
7 connecto
r
(CN710)
9 magnet assy
2 four screws
(BTTP M2.6)
8 four screws
(BTTP M2.6)
4 two screws
(BTTP M2.6)
6 Bracket
(chassis)
5 two screws
(BTTP M2.6)
3 fitting base
(guide) assy

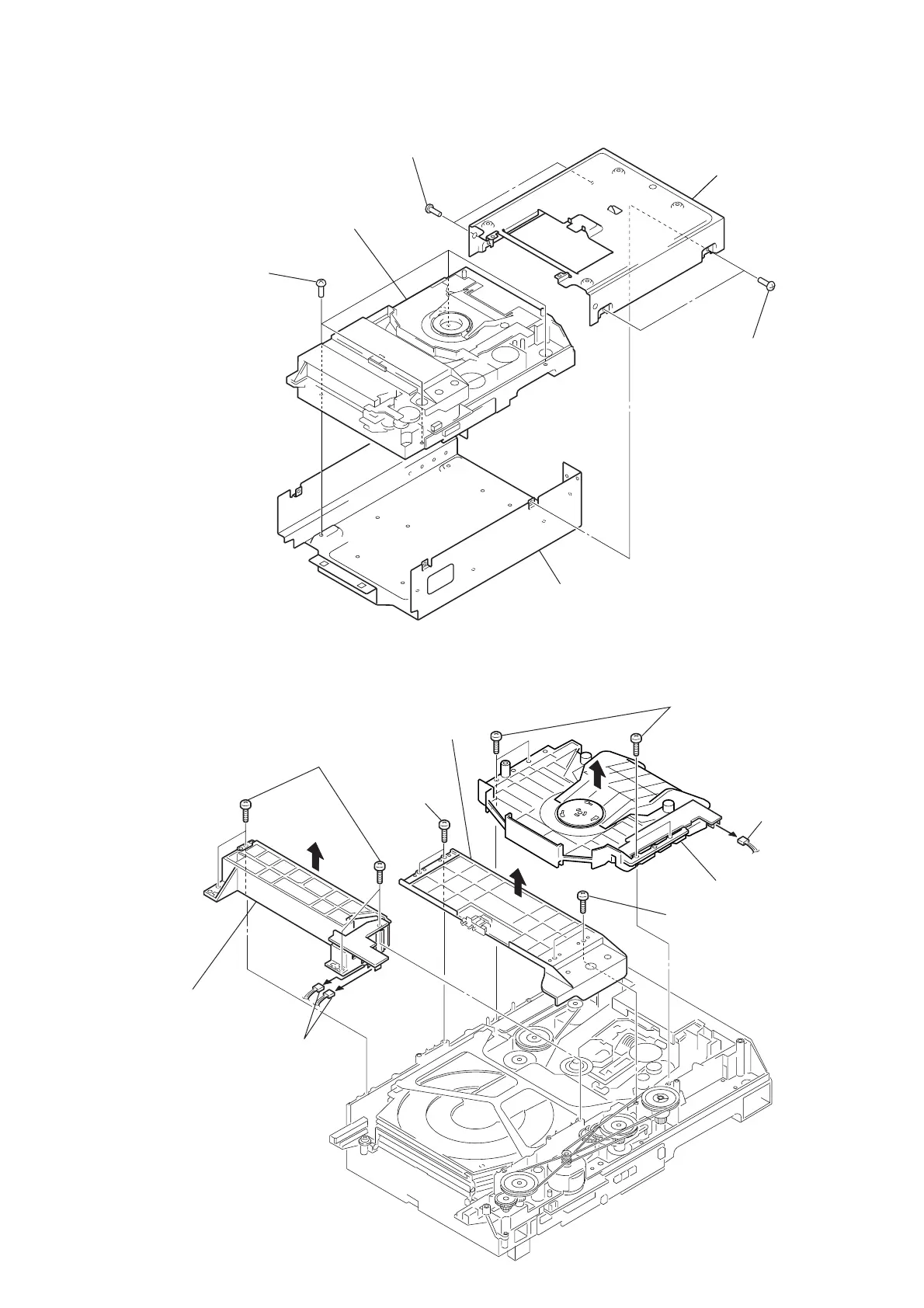

3-13. FITTING BASE ASSY, BRACKET (CHASSIS), MAGNET ASSY
1 two screws
(BVTP 3
× 8)
1 two screws
(BVTP 3
× 8)
2 bracket top panel
4 chassis (CDM)
3 four screws
(BVTP 3
× 8)
5 CD mechanism deck
(CDM53M-30BD60)
3-12. CD MECHANISM DECK (CDM53M-30BD60)
