Sony HCD-FL3 - Chassis (Mold B) Section, Stocker Section, Slider (Selection); SUB TRANS Board

15
HCD-FL3

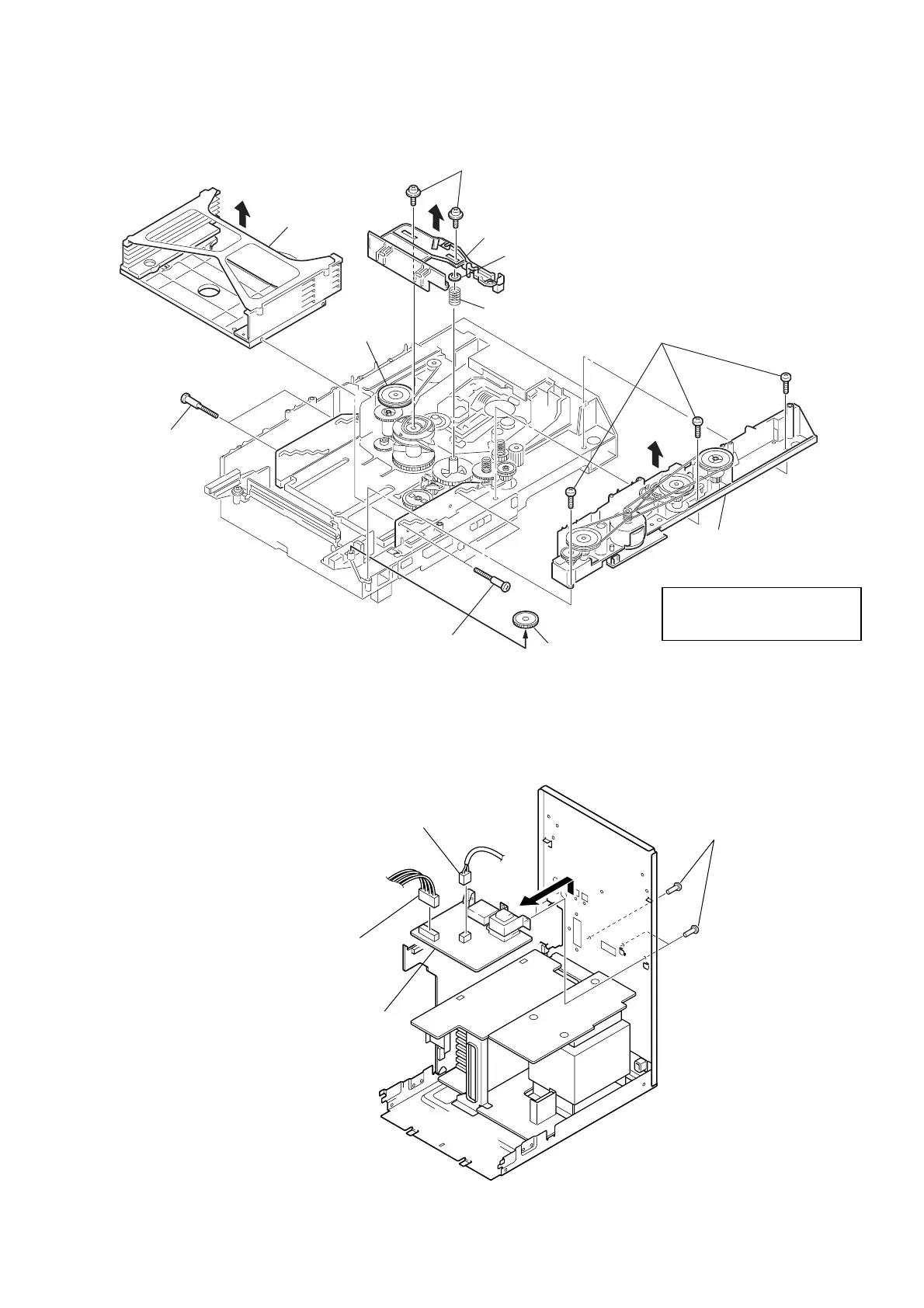

3-17. SUB TRANS BOARD
3-16. CHASSIS (MOLD B) SECTION, STOCKER SECTION, SLIDER (SELECTION)
5 stocker
section
1 three screws
(BVTP M2.6)
2 chassis (mold B) section
3 gear (eject)
4 two step screws
4 two step
screws
6 two screws
(PTPWH M2.6)
7 slider (selection)
8 washer
9 compression
spring
Pully (LD)
Note: Rotating the pully (LD),
shift the slider (selection)
to the left.
3 three screw
s
(BVTP3 × 8)
2 connector
(CN902)
1 connector
(CN901)
4 SUB TRANS board
