Sony HCD-FL3 - Base Unit (BU-30 BD60); Tray (Sub)

14
HCD-FL3

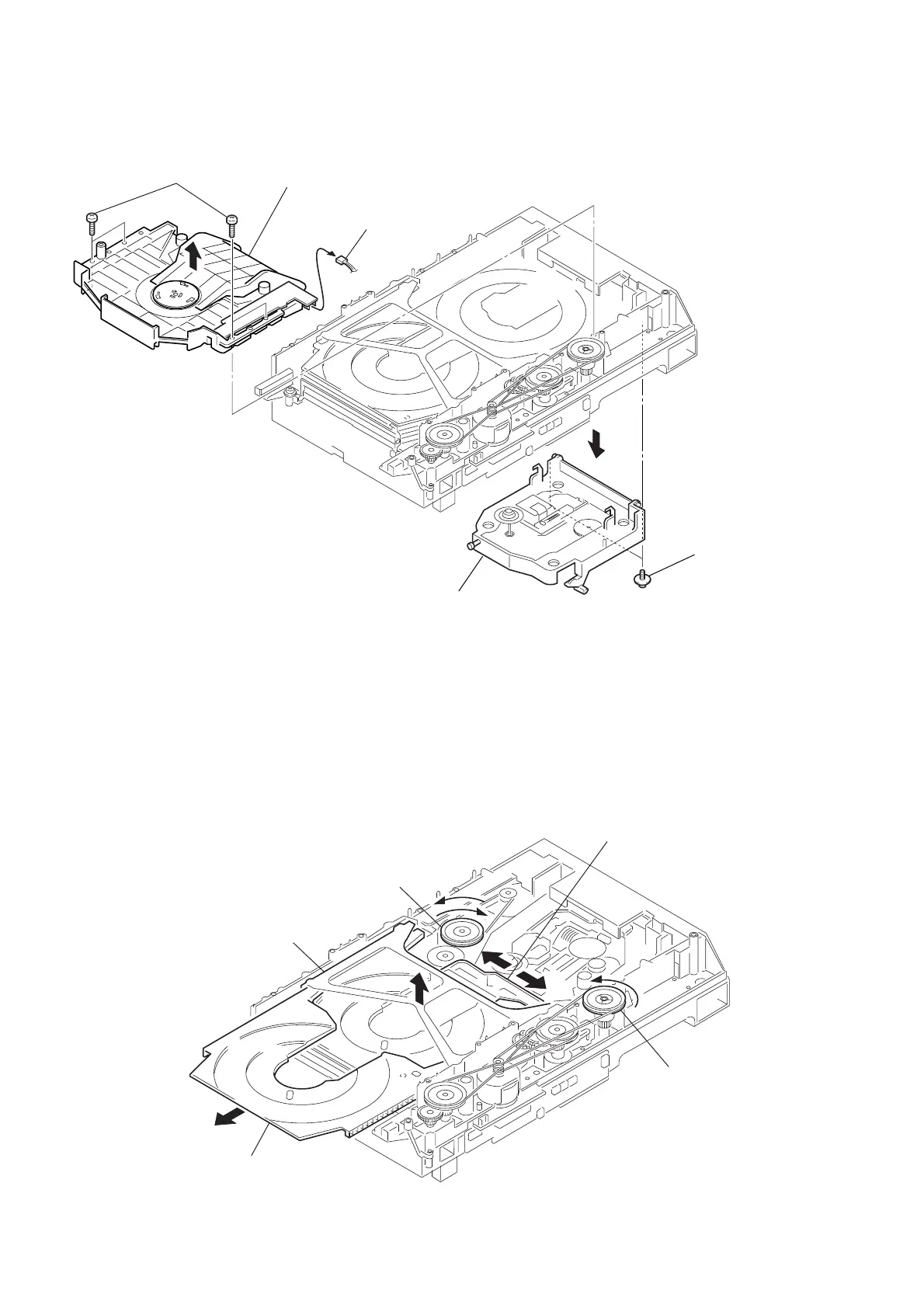

3-14. BASE UNIT (BU-30BD60)
3-15. TRAY (SUB)
5 base unit
(BU-30BD60)
4 two screws
(PTPWH M2.6
)
1 connector
(CN710)
3 magnet assy
2 four screws
(BTTP M2.6)
A
B
pully (LD)
stocker section
tray (sub)
slider (selection)
pully (mode)
1 Rotating the pulley (LD), shift the slider (selection) in the arrow A direction.
2 Rotating the pulley (mode) in the arrow direction, adjust the tray (sub) to be removed.
3 Rotating the pulley (LD), shift the slider (selection) in the arrow B direction.
4 Rotating the pulley (mode) in the arrow direction, remove the tray (sub) to be removed.
