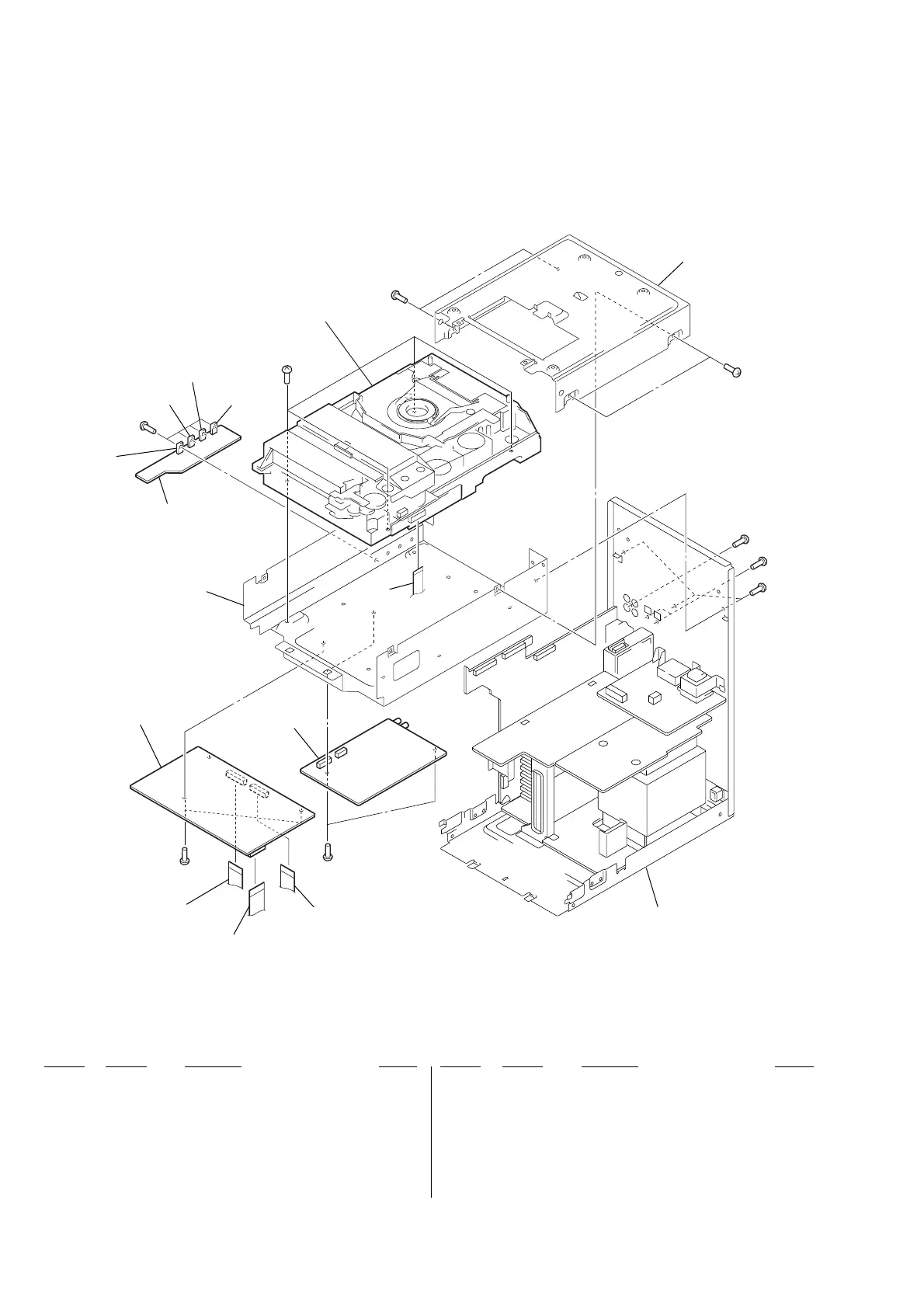

9-6. CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
303 1-773-122-11 WIRE (FLAT TYPE) (19 CORE)
304 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
305 A-4728-413-A MC BOARD, COMPLETE (EXCEPT E2)
305 A-4729-484-A MC BOARD, COMPLETE (E2)
306 A-4676-888-A DSP BOARD, COMPLETE (AUS)
306 A-4728-443-A DSP BOARD, COMPLETE (EXCEPT AUS)
307 1-684-271-11 REGULATOR BOARD
308 1-773-048-11 WIRE (FLAT TYPE) (17 CORE)
IC801 6-701-760-01 IC UPC3504AHF
IC802 8-759-231-53 IC TA7805S
IC803 8-759-231-57 IC TA7810S
IC804 8-759-231-53 IC TA7805S
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
CDM53M-30BD60
303
301
305
306
308
307
304
chassis section-2
#1
#1
#1
#1
IC801
IC802
IC803
IC804
#1
#1
#1
#1
#1
not supplied
not supplied
