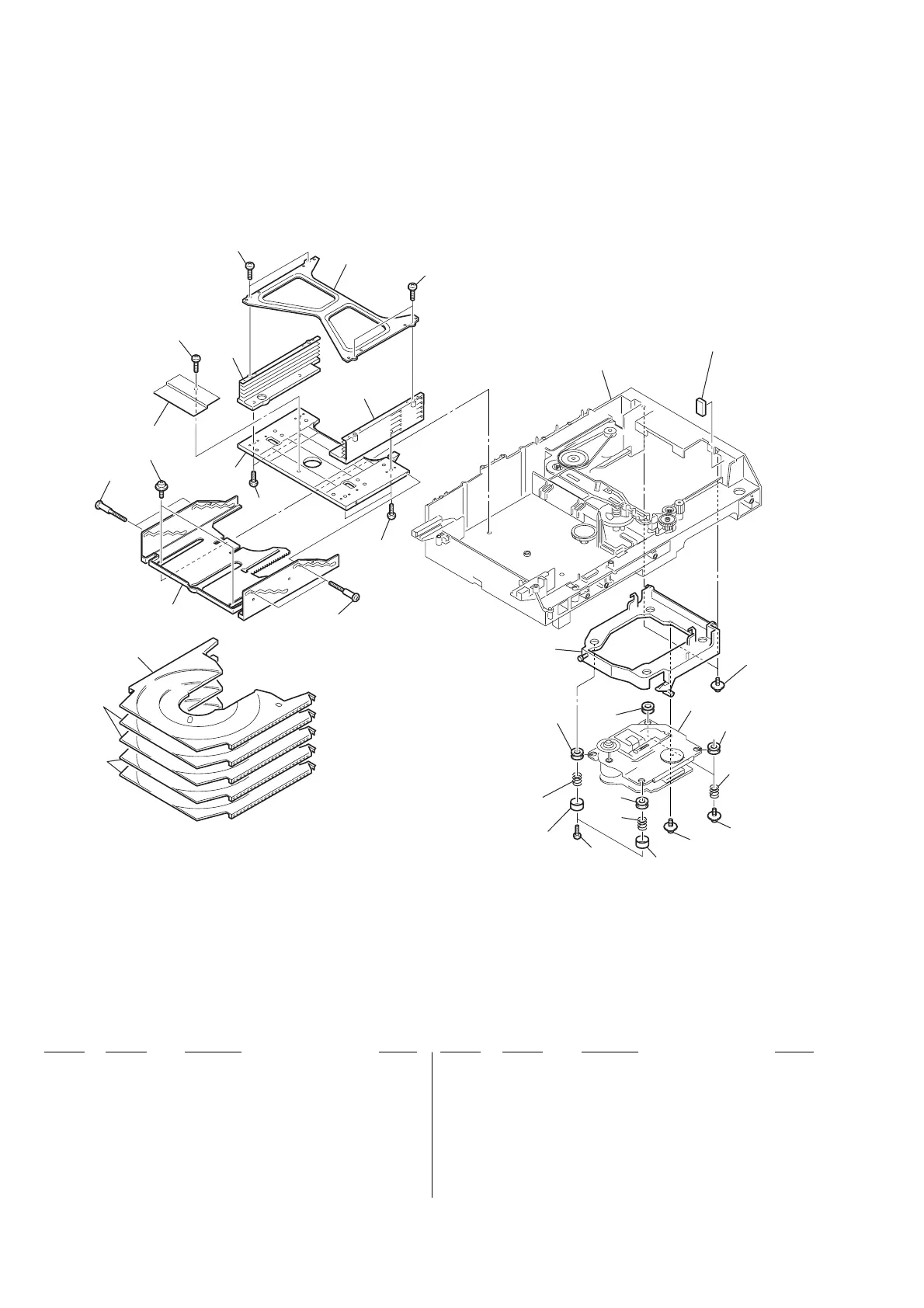

9-12. CD MECHANISM DECK SECTION-3
(CDM53M-30BD60)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
601 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
602 4-211-234-01 BRACKET (STOCKER T)
603 X-4954-297-2 HOLDER (BU30) ASSY
604 4-211-212-51 TRAY (SUB)
605 4-231-451-01 INSULATOR (BU-30)
606 4-227-045-11 SPRING (INSULATOR), COIL
607 4-218-253-11 SCREW (M2.6), +BTTP
608 4-231-151-01 STOPPER (BU)
609 4-227-899-01 SCREW (DIA.12), FLOATING
610 4-211-244-01 SCREW, STEP
611 4-211-223-01 SLIDER (U/D)
612 4-933-134-01 SCREW (M2.6), +PTPWH
613 4-221-504-01 BASE (STOCKER), FITTING
614 4-211-211-01 STOCKER (R)
615 4-211-210-01 STOCKER (L)
616 4-218-253-21 SCREW (M2.6), +BTTP
not supplied
not supplied
603
601
610
604
604
604
611
610
612
615
616
616
614
602
613
mechanism deck section-4
BU-30BD60
605
605
606
606
605
605
608
606
608
607
601
609
616
616
616
