Sony HCD-FL3 - Printed Wiring Board - MC Board

HCD-FL3
1212

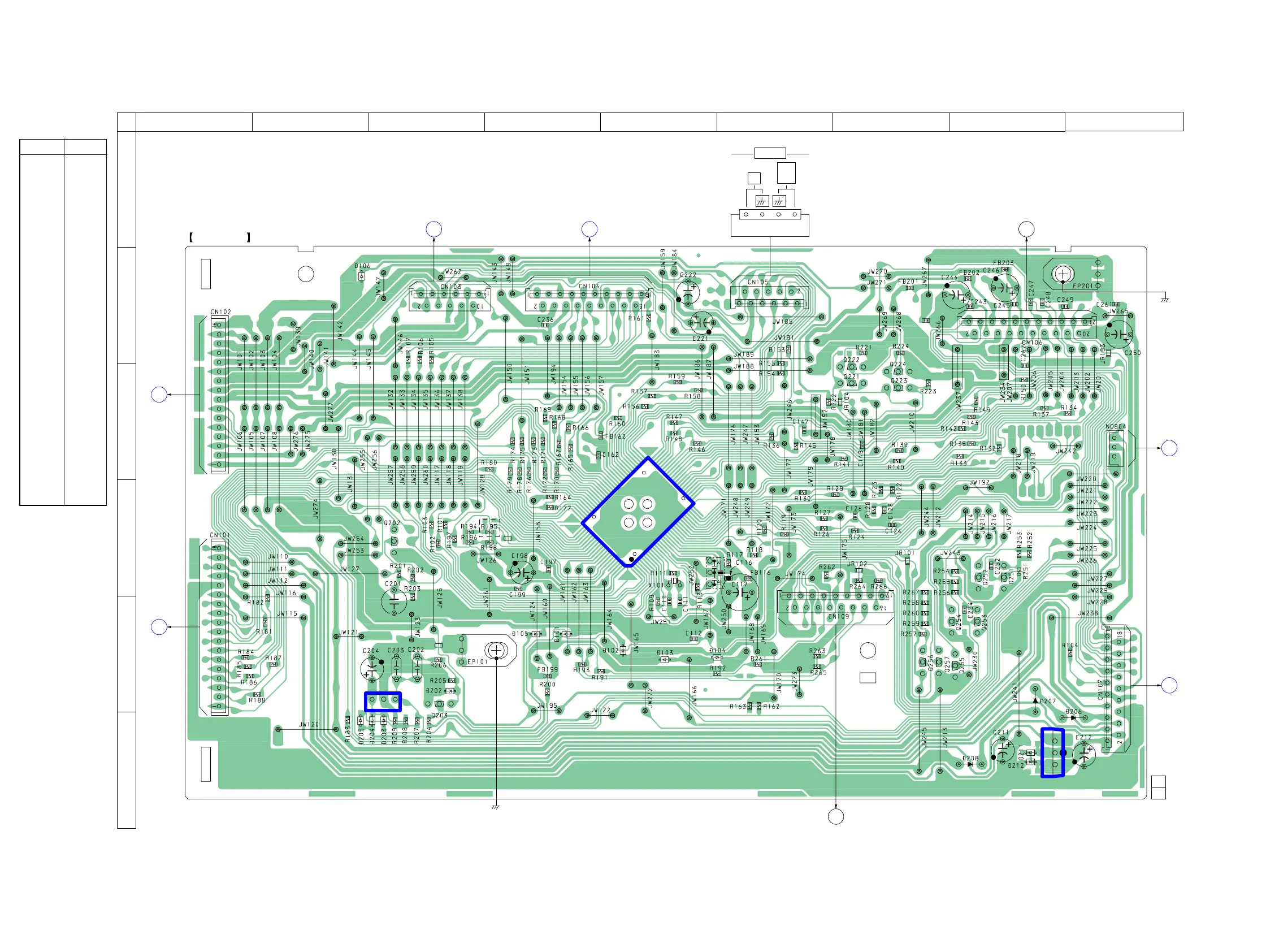

1-6. PRINTED WIRING BOARD – MC Board –
D101 E-4
D102 E-5
D103 E-5
D104 E-6
D105 E-4
D106 B-2
D202 E-3
D203 E-3
D204 F-2
D205 F-2
D206 F-9
D207 E-8
D208 F-8
D211 F-8
D212 F-8
IC101 D-5
IC201 E-3
IC202 F-8
Q201 D-3
Q202 D-3
Q203 E-3
Q221 C-7
Q222 C-7
Q223 C-7
Q224 C-7
Q251 D-8
Q252 D-8
Q253 E-8
Q254 E-8
Q255 E-8
Q256 E-7
Q257 E-7
• Semiconductor
Location
Ref. No. Location
IC101
IC202
IC201
JR190
C241
81
51
80
100
1
30
31
50
1
2
3
MC BOARD
1-684-188-
12
(12)
H
SP RELAY
BOARD
CN806
I
SP RELAY
BOARD
CN805
E
12 3
E
(CHASSIS)
X102
E
SW BOARD
CN1001
EE
E
E
E
E
E
E
E
E
1
3
K
SUB TRANS
BOARD
CN903
(CHASSIS)
A
BD BOARD
CN101
∗ TUNER PACK
AM
AM
75Ω
ANTENNA
F
DSP BOARD
CN602
G
DSP BOARD
CN601
A
B
C
D
E
F
1 2 3 4 5 6 7 8 9
J
GC BOARD
CN202
∗ SUPPLIED WITH
THE ASSEMBLED BLOCK
(E2, E51, MX, AR)
C242
E
10
11
(Page 26)
(Page 26)
(Page 15) (Page 15)
(Page 33)
(Page 27)
