Selecting the State After Power-on
Chapter 16 System Setup
Saving and Recalling Setup Data
Updating the switcher or control panel setup data saves the
updated setup data in RAM in the switcher.
• In Resume mode (1 p. 213), even if the switcher is
reset or powered off, the data is preserved in RAM, and
recalled when the power is turned back on.
• In Custom mode (1 p. 213), the user-defined settings
(user setup data) saved in non-volatile memory or
factory default setup data held in ROM are recalled when
a reset is made or the power is turned back on
(1 p. 214).
Note that the setup data in RAM can also be saved to the
control panel local disk or removable disk.
Selecting the State at Start-up
1
In the status area of the Engineering Setup >System
>Start Up menu (7314), select the device to which the
settings are to apply.
2
In the <Start Up Mode> group, select one of the
following modes.
Resume: When this is on, Resume mode is enabled
(1 p. 213).
Custom: When this is on, Custom mode is enabled
(1 p. 213).
Resume mode is only valid when a switcher or control
panel is selected for the setting.
3
When Custom mode is selected, in each of the
<Setup> group and <Initial Status> group, select one
of the following.
User: When this is on, user-defined settings are used
for the Setup or Initial Status settings. For the
method of saving the user-defined settings, see the
next item.
Factory: When this is on, factory default settings are
used for the Setup or Initial Status settings.
4
Press [Execute].
5
Check the message, then press [Yes].
Saving User-Defined Settings
1
Open the Engineering Setup >System >Start Up menu
(7314).
2
Select the target device, and then select one of the
following.
• To save the Setup settings, press [Setup Define].
• To save the Initial Status settings, press [Init Status
Define].
For details about the settings which will be saved,
1 “Data Saved by [Setup Define] and [Initial Status
Define]” (p. 297).
3
Check the message, then press [Yes].
Setting Automatic Loading of
Register Data at Power On (Autoload
Function)
To have specified data read in at power on, press [Power
On File Load] in the Engineering Setup >System >Start Up
menu (7314), turning it on.
This enables the autoload function.
When the autoload function is enabled, a directory
“PWON_LD” appears in the corresponding File menu.
For details about saving data which can be loaded by the
autoload function, 1 “Saving data recalled by autoload”
(p. 202).

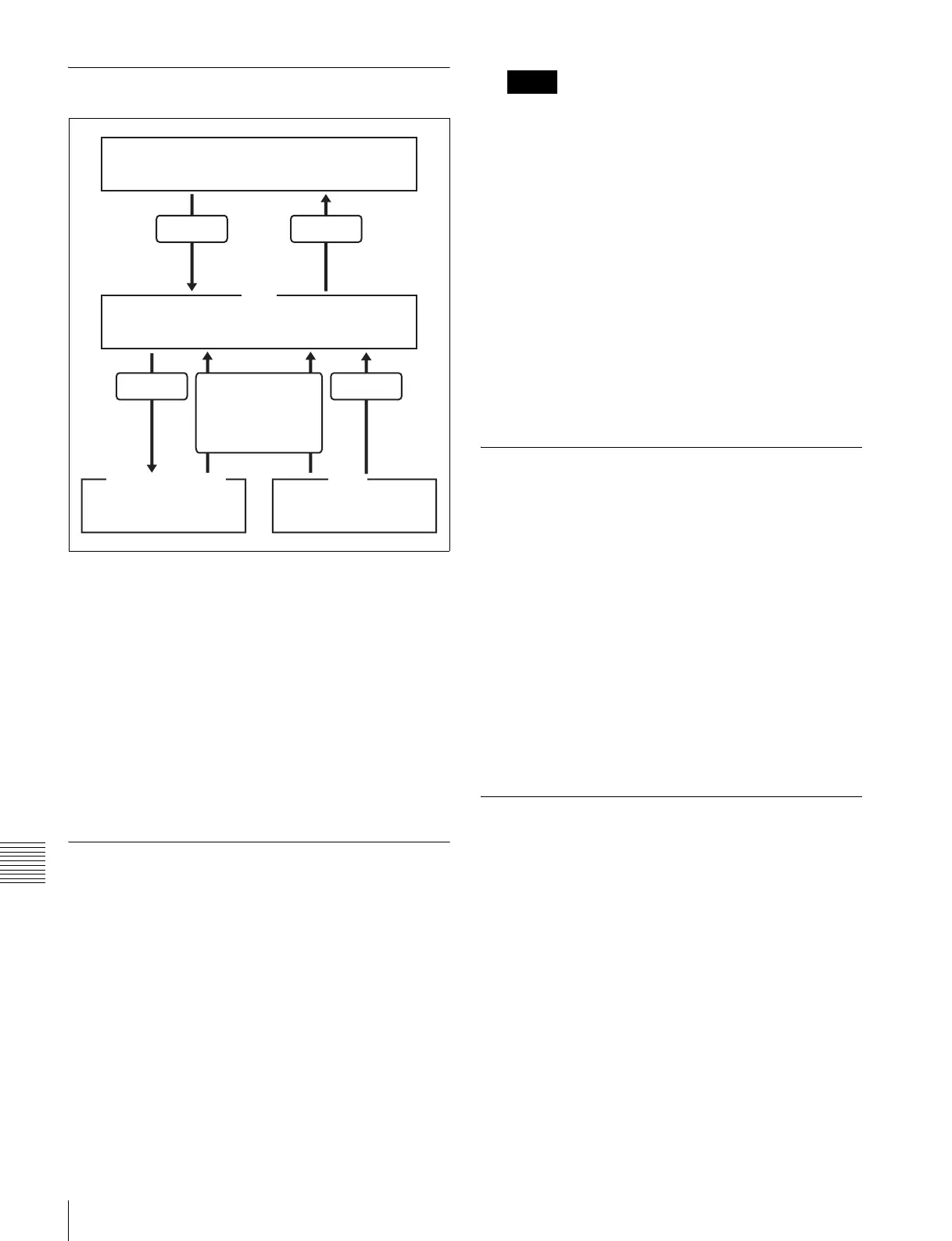

Load Save
Current setup data
(If in Resume mode, settings data is saved.)
Store
In Custom mode,
power on or reset
Initialize
Factory default setup data
Setup
menu
[Setup
Define]
Setup
menu
[All Clear]
File menu
[Load]
File menu
[Save]
Local disk/Removable disk
Non-volatile memory
RAM
User setup data
ROM
User setup data
