Signal Output Settings
Chapter 18 Switcher Setup
For down-conversion, the image position setting in edge
crop mode is the same as for up-conversion.
The value is from –30 to +30 inclusive.
For details, 1 “Setting the image position in edge crop
up-conversion mode” (p. 244).
For down-conversion, the enhancer settings are the same
as for up-conversion.
For details, 1 “Making enhancer settings” (p. 245).
Copying format converter input data
1
In the Engineering Setup >Switcher >Input >FC
Adjust menu (7332.2), press [Copy].
The Copy/Swap >Copy >Format Converter menu
(3121) appears.
2
Select [Input] in the <Data Select> group.
3
Select the data and press [Copy].
Signal Output Settings
• The numbers that can be configured as output signals are
1 to 16. Note that numbers up to 32 are also displayed,
but that only numbers 1 to 16 are enabled.
• The Video Clip, V Blank, Through, Safe Title, and 4:3
Crop cannot be set for the following outputs.
- Output signals from connectors assigned to Out 1 to 12
- Multi Viewer 1 and 2
- FC Output 1 and 2
Assigning Output Signals
1
Open the Engineering Setup >Switcher >Output
>Output Assign menu (7333.1).
2
In the <Output Assign> group, select either of the
following.
[Re-Entry Source]: It is possible to make duplicate
assignments.
M/E-1 Output 1 to 4
1)
PGM/PST 1 to 4
1)
Undefined
Color Bkgd 2
Frame Memory 1 to 8
1) M/E output signals selected in the M/E Output Assign menu.
[Aux Bus]: It is not possible to make duplicate
assignments.
Preset
Edit Preview
AUX 1 to 24
[Output/MV/FC/DME]: It is possible to make
duplicate assignments.
Out 1 to 12
1)
Multi Viewer 1 and 2
FC Output 1 and 2
2)
1) Makes duplicate assignments if the signal that is assigned is the same
signal as one already assigned to one of Output 1 to 12. However, the
following signals are unavailable if already assigned to Output 1 to
12.
Out 1 to 12
Multi Viewer 1 and 2
FC Output 1 and 2
2) FC Output 1 and 2 can be assigned as a pair combination to Outputs
15 and 16.
3
Select the output connector number and signal to be
assigned.
For output connectors not to be assigned, press
[Inhibit].

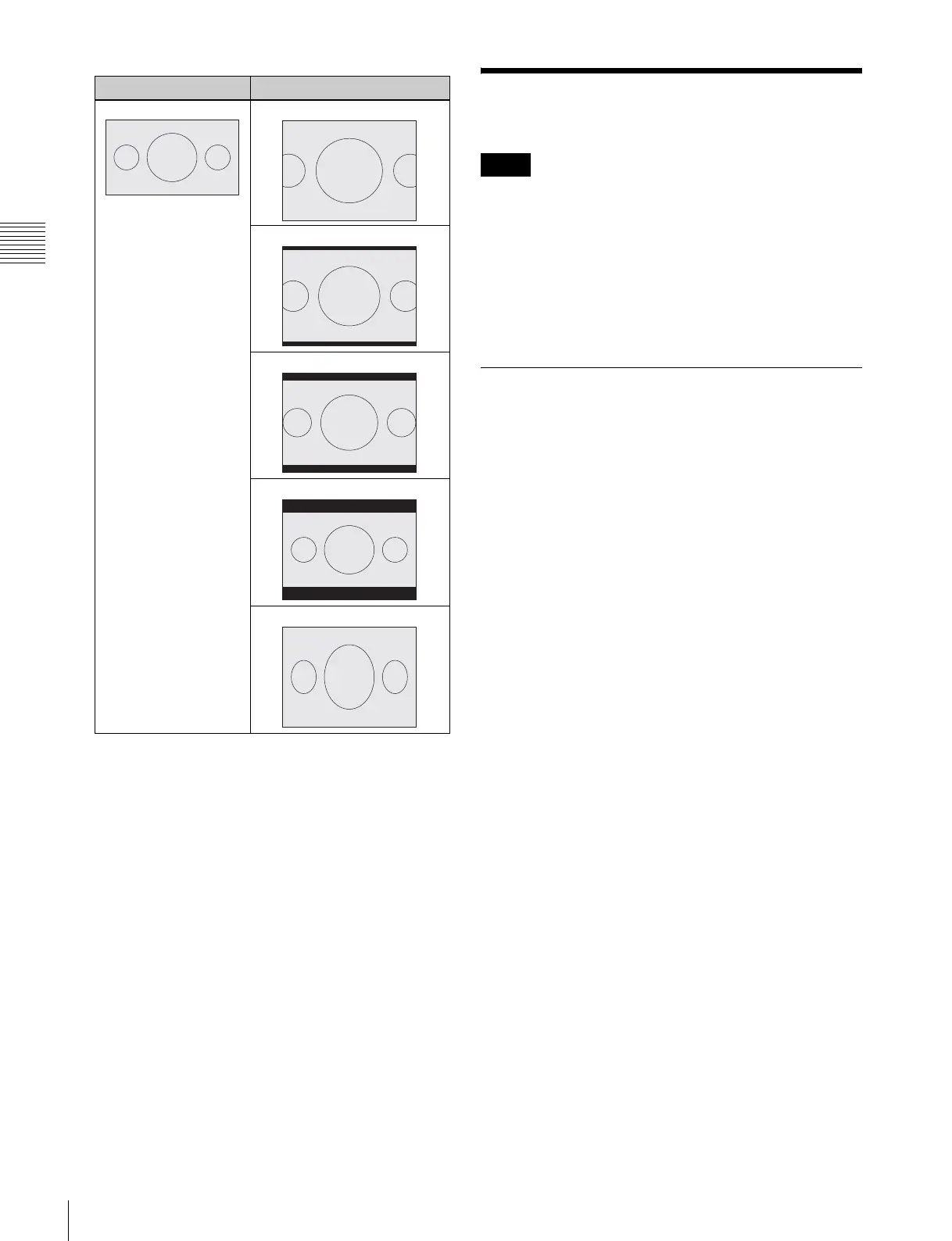

Original image (16:9) Down-converted image (4:3)
Edge Crop
Letter Box 13:9
Letter Box 14:9
Letter Box 16:9
Squeeze
Notes
To Next Page
