38
GB

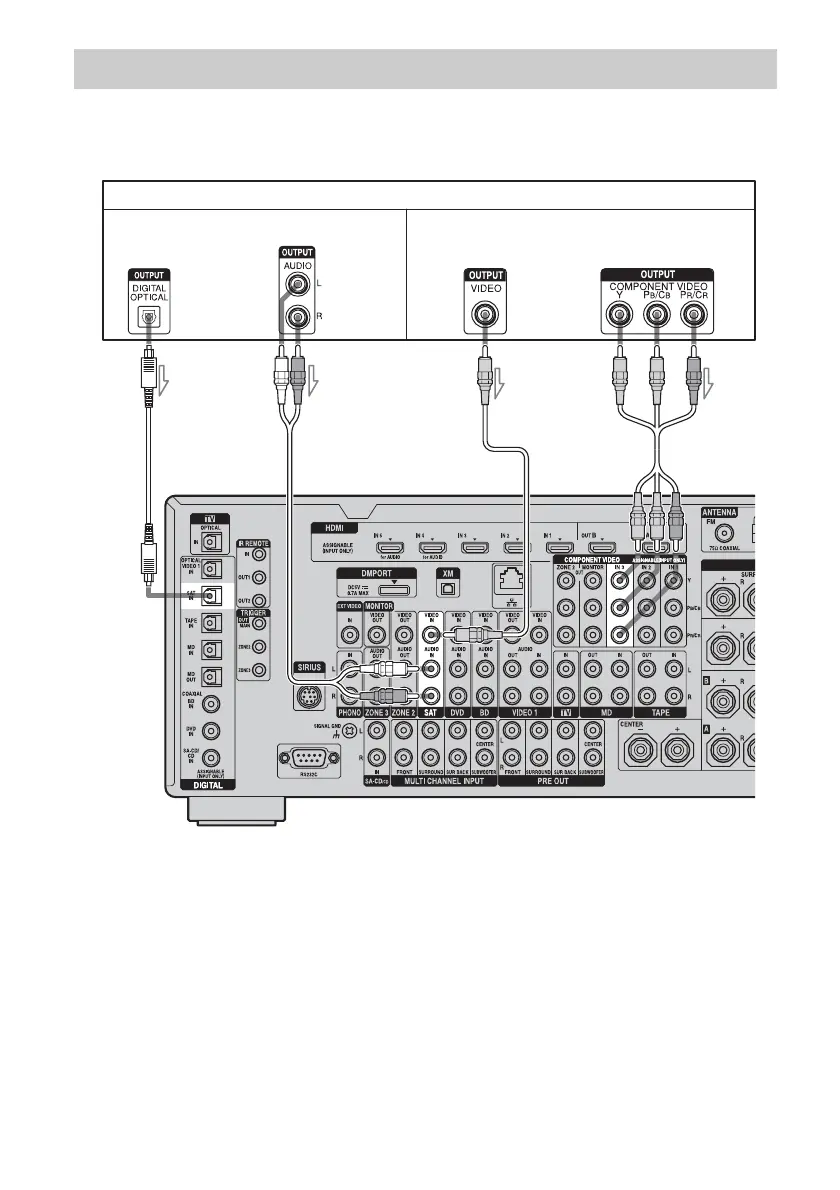

The following illustration shows how to connect a satellite tuner, Set-top box.
It is not necessary to connect all the cables. Connect audio and video cords according to the jacks
of your components.
Note
Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
Connecting a satellite tuner, Set-top box
Satellite tuner, Set-top box
AB C D
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
Audio signals Video signals
