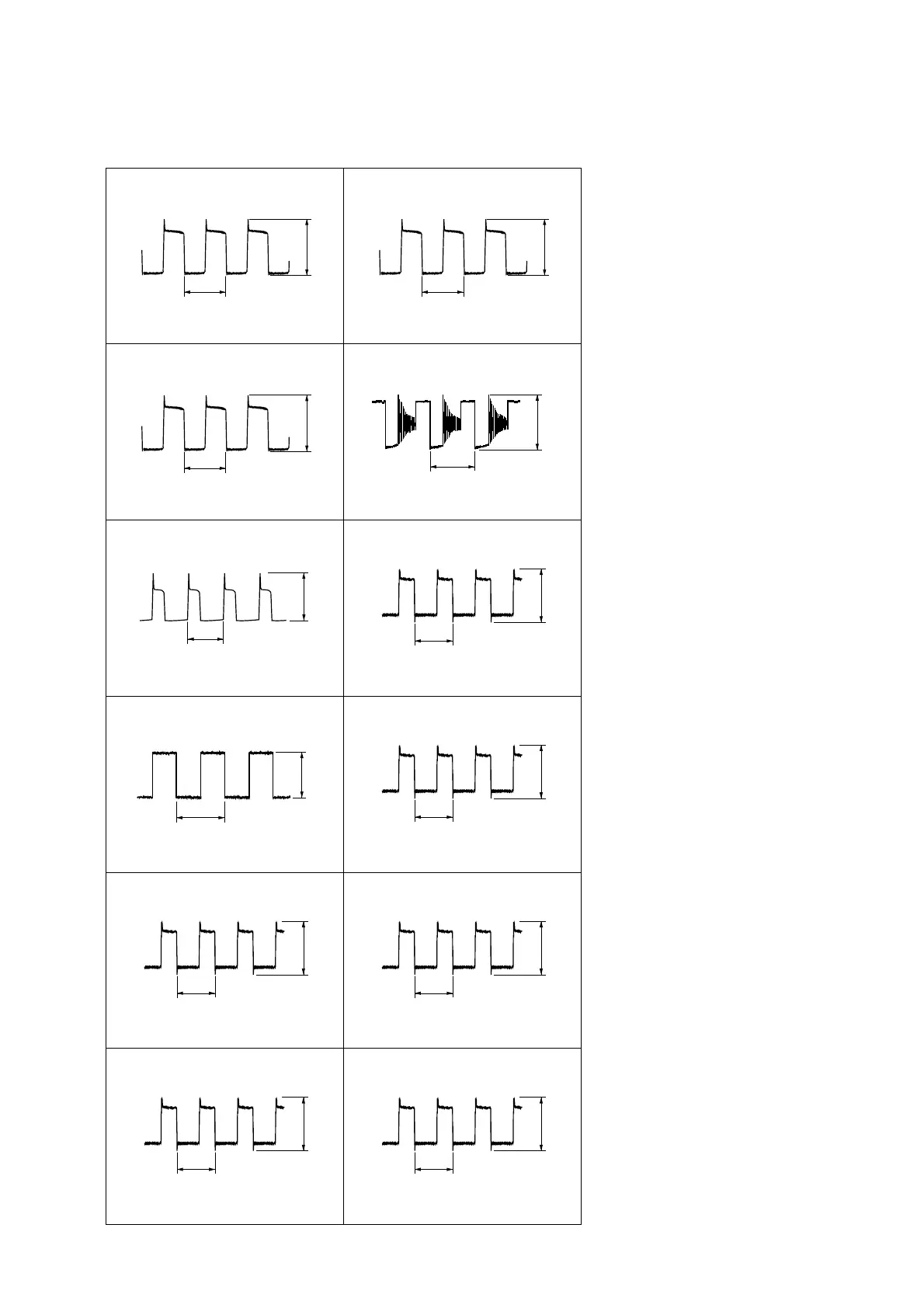

– DCDC Board –
wh
IC1981 1 (BOOT)
2 V/DIV, 1 Ps/DIV
2.7 Ps
7 Vp-p
2.8 Ps
11.6 Vp-p
wf
IC1901 1 (BOOT)
5 V/DIV, 1 Ps/DIV
wl
IC1861 1 (BOOT)
5 V/DIV, 1 Ps/DIV
2.8 Ps
14.4 Vp-p
e;
IC1801 1 (BOOT)
5 V/DIV, 1 Ps/DIV
2.8 Ps
14.4 Vp-p
es
IC1841 1 (BOOT)
5 V/DIV, 1 Ps/DIV
2.7 Ps
12.4 Vp-p
ea
IC1821 1 (BOOT)
5 V/DIV, 1 Ps/DIV
2.7 Ps
13.6 Vp-p
wd
IC1761 1 (BOOT)
10 V/DIV, 1 Ps/DIV
1.8 Ps
24.8 Vp-p
ws
IC1701 1 (BOOT)
10 V/DIV, 1 Ps/DIV
1.8 Ps
24.8 Vp-p
wa
IC1741 1 (BOOT)
10 V/DIV, 1 Ps/DIV
1.8 Ps
24.8 Vp-p
wj
IC1721 1 (BOOT)
10 V/DIV, 1 Ps/DIV
1.8 Ps
25.2 Vp-p
wk
IC981 1 (BOOT)
5 V/DIV, 2 Ps/DIV
4.9 Ps
9.5 Vp-p
wg
IC1921 1 (BOOT)
5 V/DIV, 1 Ps/DIV
2.8 Ps
13.8 Vp-p
