Sample Waveform Library
VX4792 User Manual
D-3
Sine Wave Signal
The Sine Wave Signal waveform has the following characteristics:
H Signal frequency: 1 MHz
H Waveform points: 200
H Clock frequency: 200 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,1ms)<LF>sin(2*pi*1e6*t)

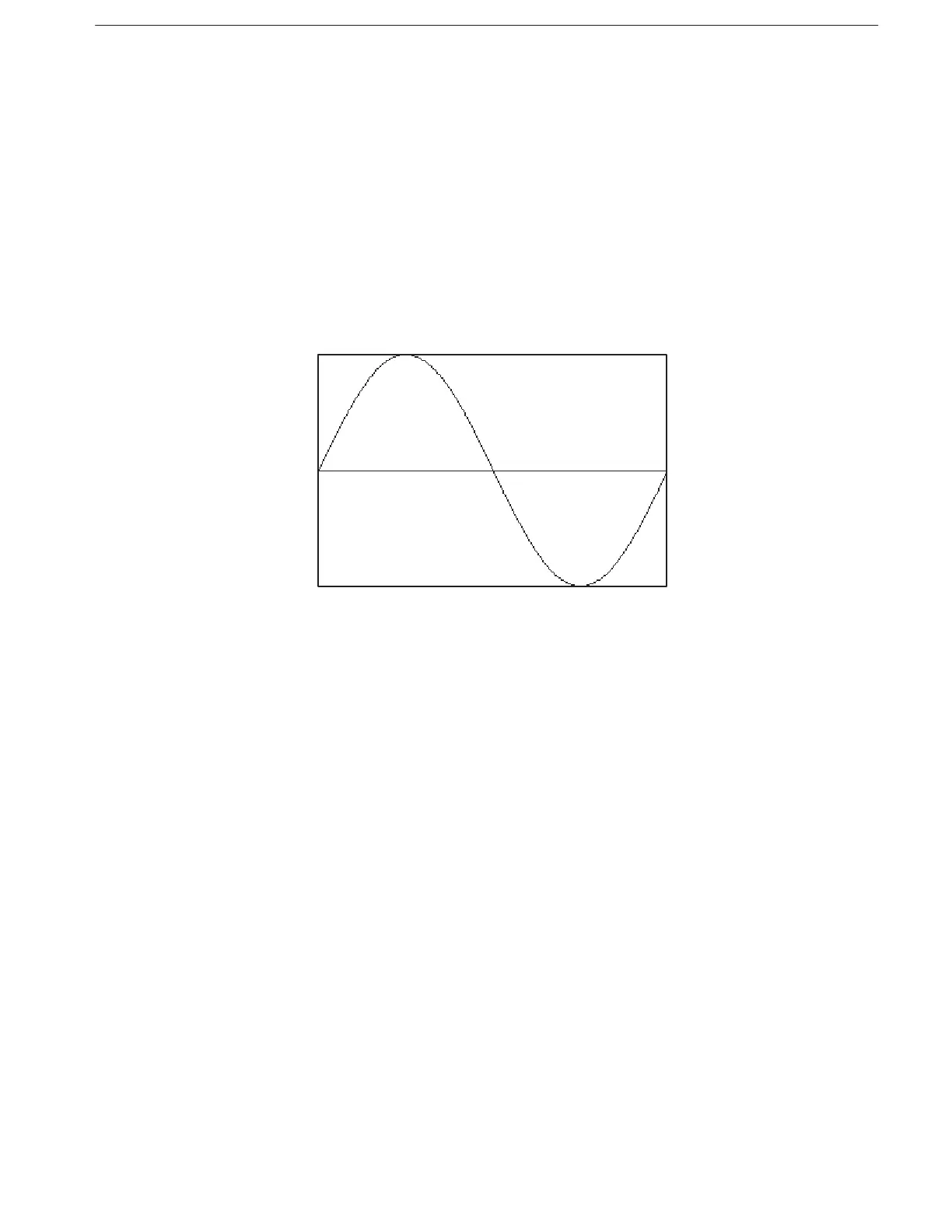

Figure D-1: Sine Wave Signal
