Sample Waveform Library
D-4
VX4792 User Manual
Triangle Wave Signal
The Triangle Wave Signal waveform has the following characteristics:
H Signal frequency: 1 MHz
H Waveform points: 200
H Clock frequency: 200 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,1ms)<LF>range(0,0.25ms)<LF>x<LF>
range(0.25ms,0.75ms)<LF>1–2*x<LF>range(0.75ms,1ms)<LF>–1+x

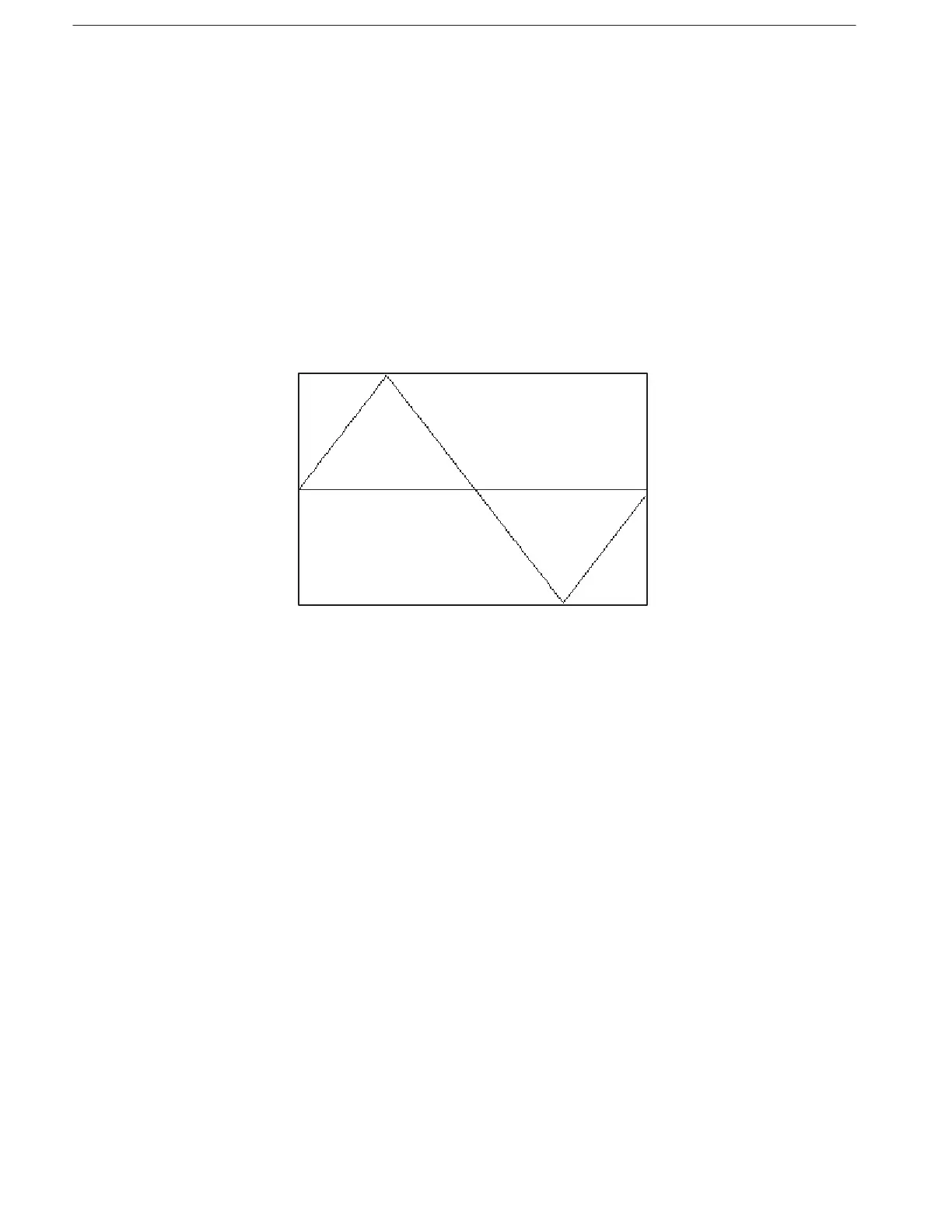

Figure D-2: Triangle Wave Signal
