Sample Waveform Library
D-8
VX4792 User Manual
Lorentz Pulse
The Lorentz Pulse waveform has the following characteristics:
H Waveform points: 256
H Clock frequency: 100 MHz
H Output parameters: Filter 20 MHz
H Equation: range(0,2.56ms)<LF>k0=0.3e–6<LF>k1=1.28e–6<LF>
1/(1+(2*(t–k1)/k0)^2)
Pulse Width (k0) is 0.3 ms
Peak Location (k1) is 1.28 ms

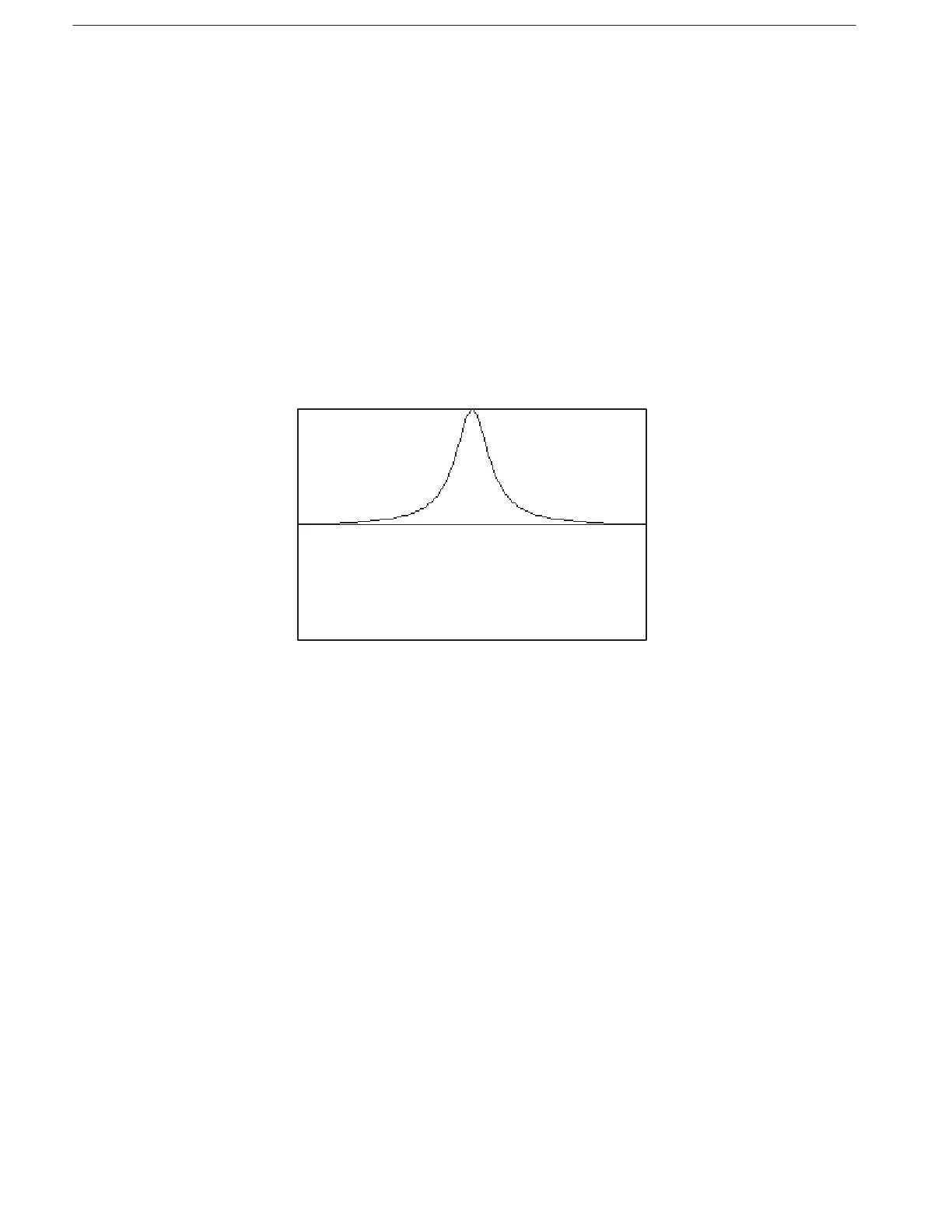

Figure D-6: Lorentz Pulse
