Sin(x)/x Pulse
The Sin(x)/x Pulse waveform has the following characteristics:
. 326 cycles are needed to utilize the 12-bit vertical resolution.
H Waveform points: 4000
H Clock frequency: 100 MHz
H Output parameters: Filter Through
H Equation: range(0,40ms)<LF>k0=2.5e6<LF>k1=20e–6<LF>
sin(2*pi*k0*(t–k1))/(2*pi*k0*(t–k1))
Sine Frequency (k0) is 2.5 MHz
Peak Location (k1) is 20 ms

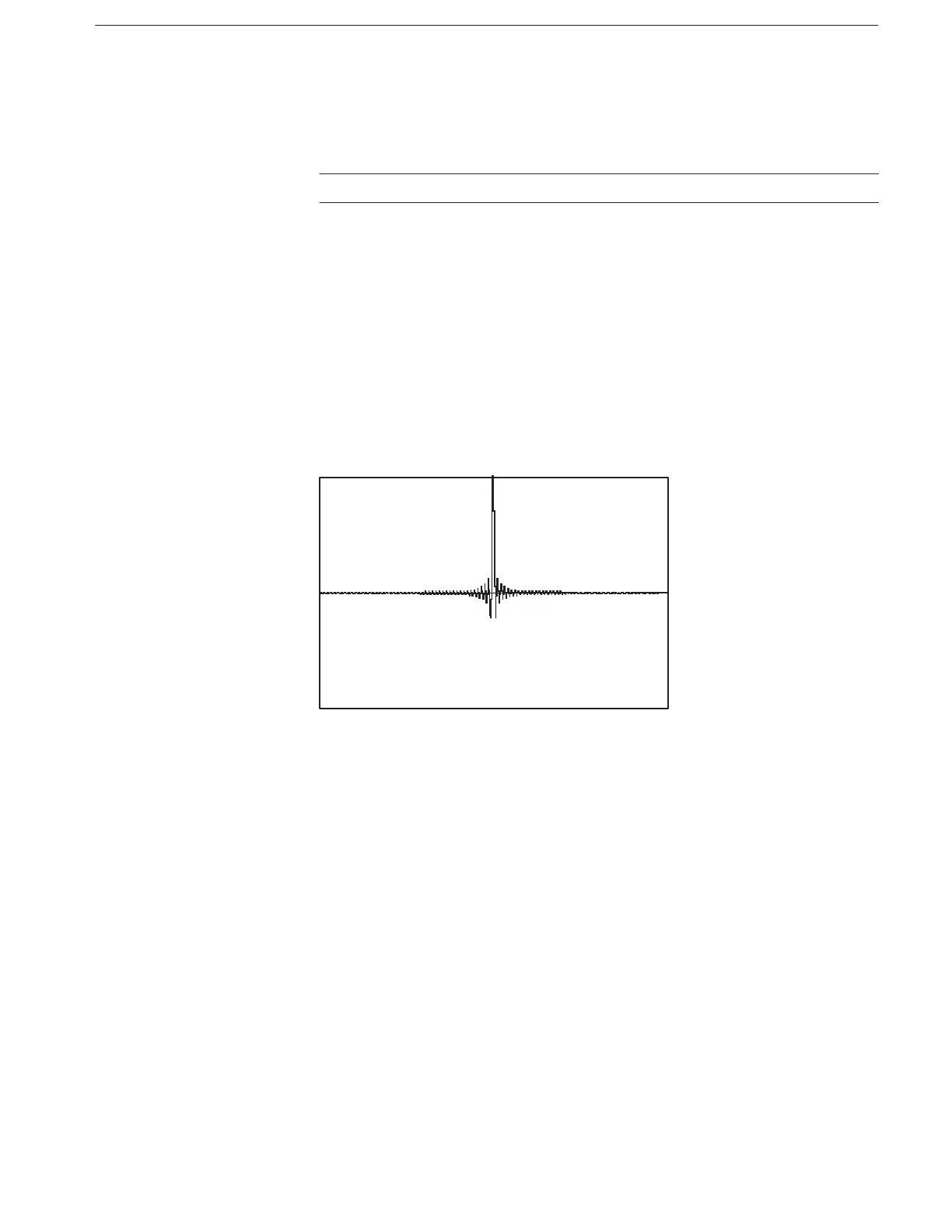

Figure D-7: Sin(x)/x Pulse
